5 - 10 Oil Tank
The Hiab 160TM crane is equipped with an oil tank for separate
mounting.
The oil tank consists of tank body Itself, return filter, suction
strainer, air breather, oil level gauge and drain plug which can be
used for drainage of the water or some dirt accumulated in the
tank bottom.

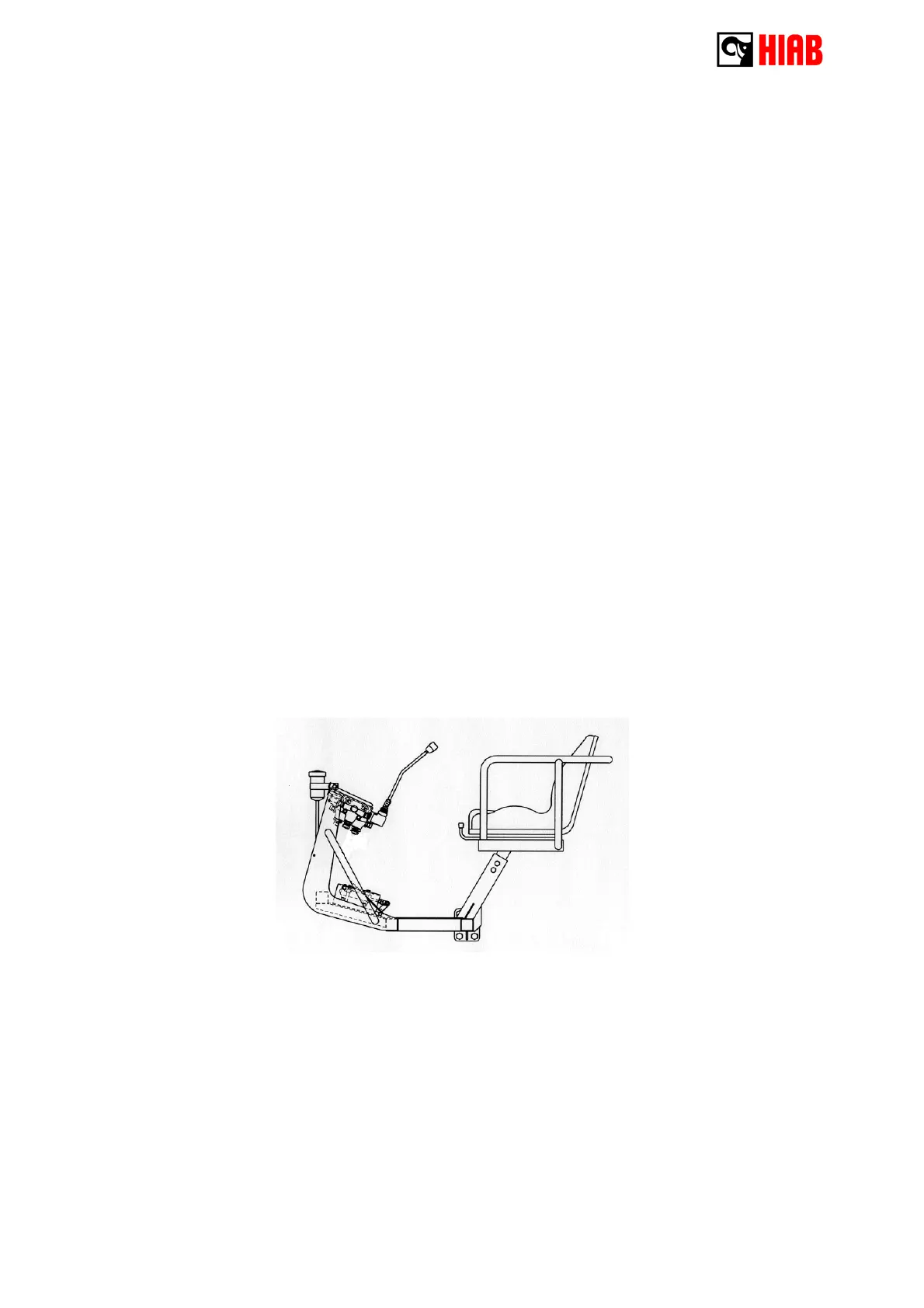

5 - 11 Top seat (option)
4-function main control valve which controls slewing,
boom lifting, extension, winch is mounted on the top seat
with manual acceleration pedal to control chassis’ rpm.
Also the top seat can be adjusted to fit operator’s body.
5 - 12 Anti two block system [Option]
When hook hit the limit switch, send signal to solenoid.
The wire rope up and extending boom were stopped in order to
prevent over-winding.
