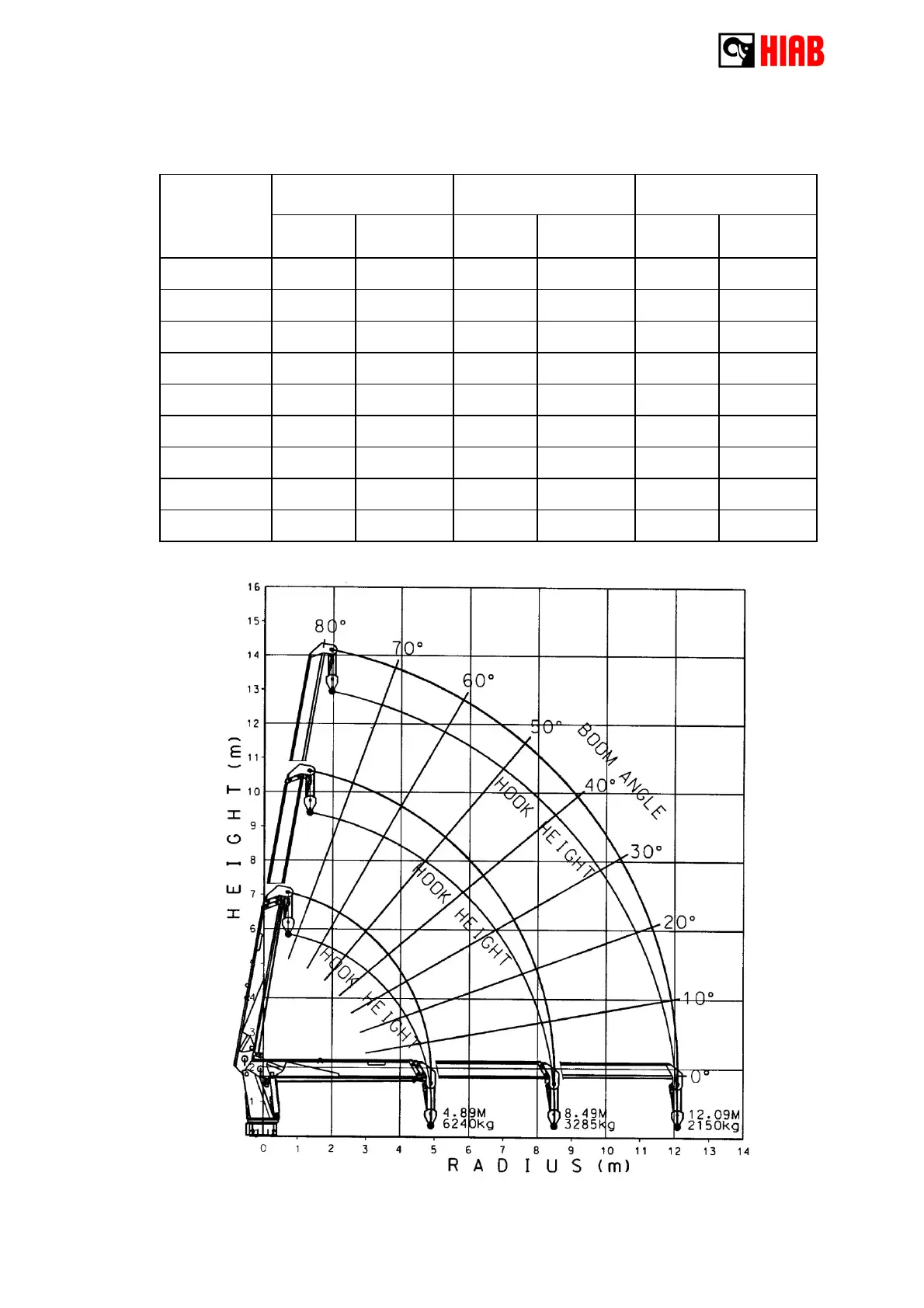

4 - 3 Lifting capacity table & working radius
boom angle
1
st
boom 2
nd
boom 3
rd
boom
R(m) Q(kg) R(m) Q(kg) R(m) Q(kg)
80 deg 0.44 10000 1.07 8000 1.69 6000
70 deg 1.35 10000 2.58 7100 3.81 4910
60 deg 2.20 9670 4.00 5340 5.80 3650
50 deg 2.97 8250 5.28 4490 7.60 3040
40 deg 3.63 7450 6.39 4010 9.15 2700
30 deg 4.17 6960 7.29 3720 10.40 2490
20 deg 4.57 6650 7.95 2530 11.33 2360
10 deg 4.81 6435 8.35 3400 11.90 2265
0 deg 4.89 6240 8.49 3285 12.09 2150
