5. General description

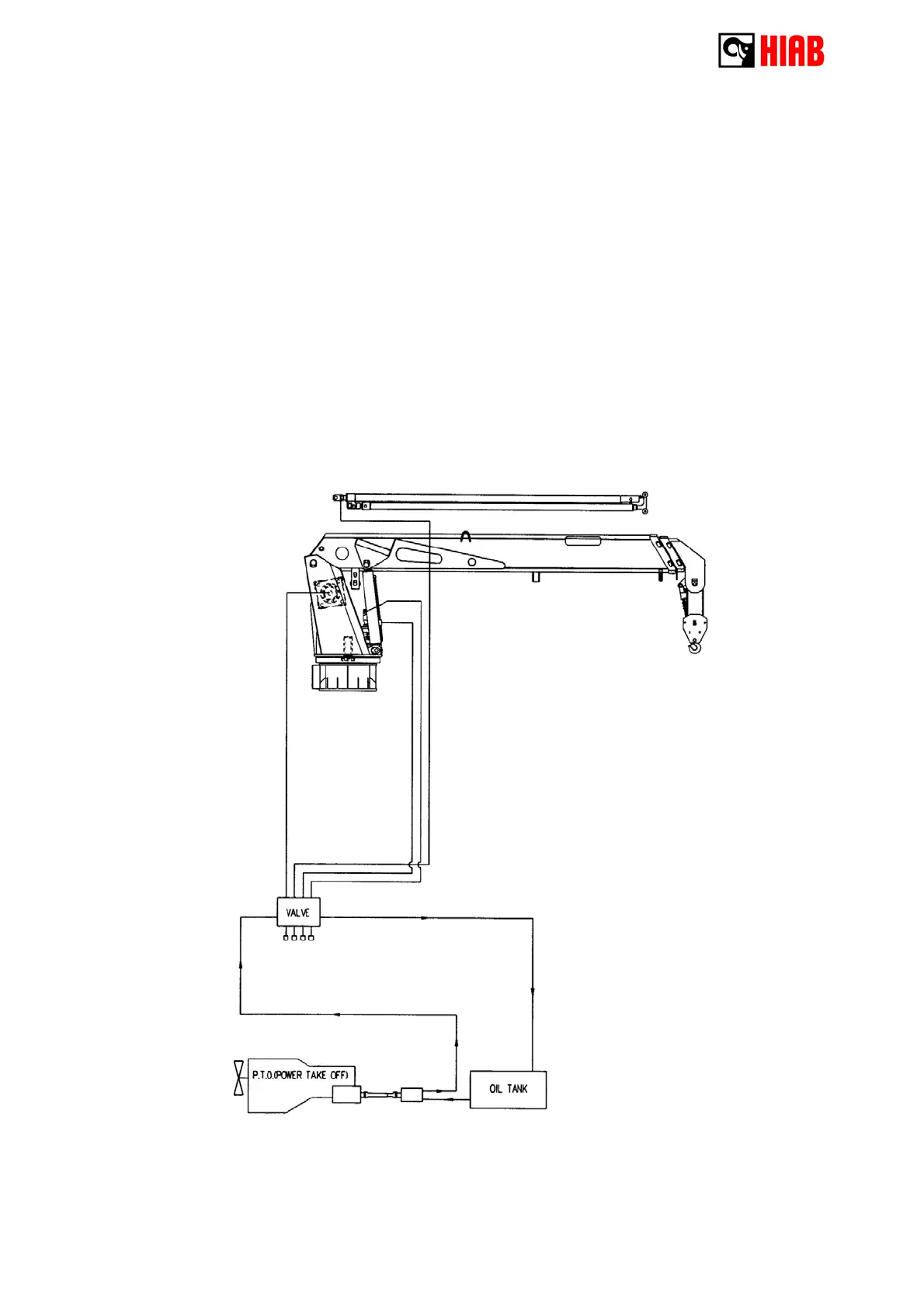

5 - 1 Basic operation principle
Hiab 320T-3 crane consists of mainly steel structures and
hydraulic components.
The required power source for crane operation comes, via the
chassis’ power take off (PTO), from the hydraulic pump giving
high pressure hydraulic oil. This high pressure oil operates the
cylinders and motors through the control valve and returns to the
oil tank.
