PLT-01628, Rev. D.2 Installing the module
4.3 Enclosure installation
Install the PAM in a UL 294 Listed enclosure. Furthermore, install the PACS and appropriate power supply
(not supplied by HID Global) according to the manufacturer's instructions.

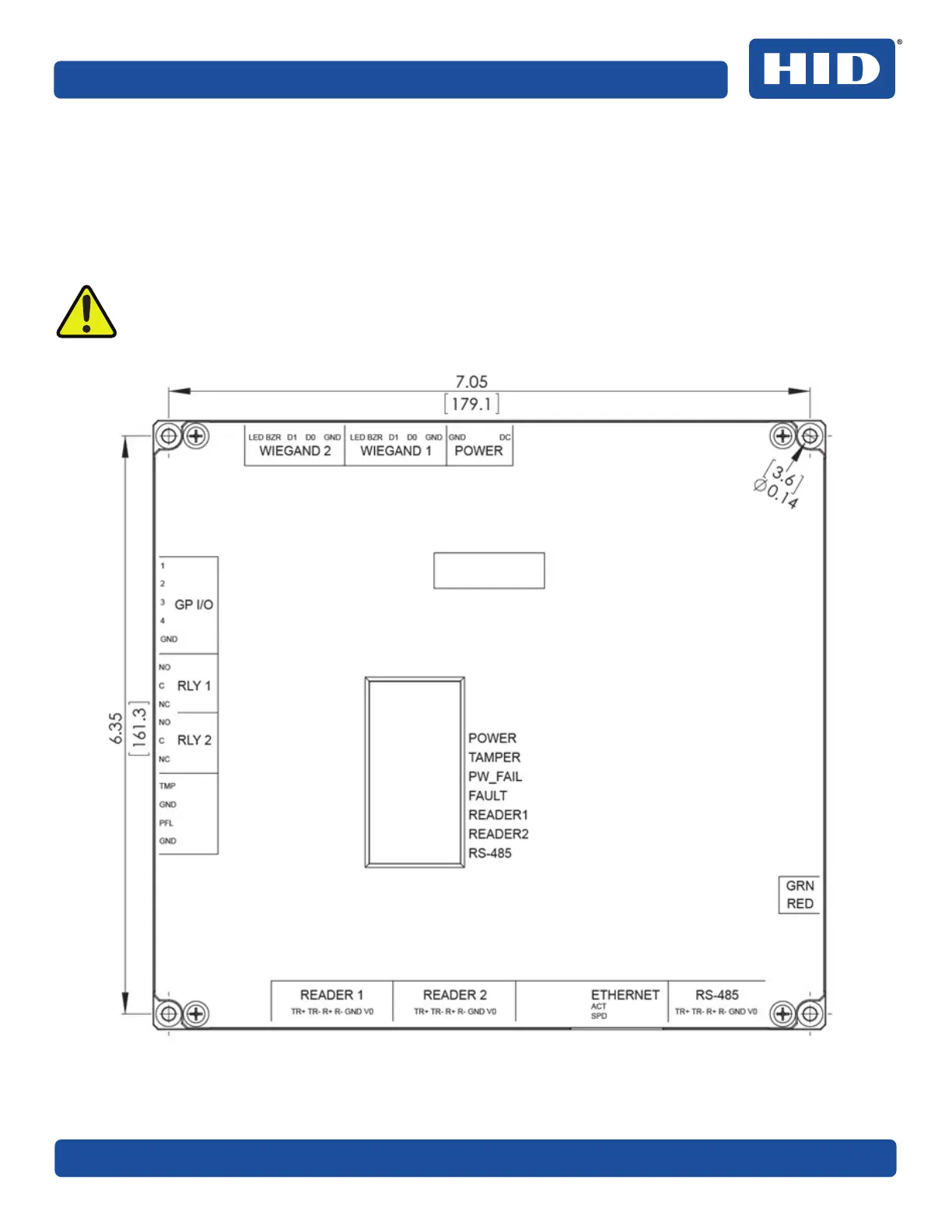

4.3.1 PAM mounting dimensions
Use the dimensions below to mark the drilling holes on the enclosure (the illustration is not to scale)
.
WARNING
Connecting pivCLASS Authentication Modules while power is applied may result in
damage.
