Hikmicro Panther LRF PH35L - Chapter 2 Preparation; Cable Connection; Install Battery

Handheld Thermal Monocular Camera User Manual
5
Chapter 2 Preparation
2.1 Cable Connection
Connect the device and power adaptor with a type-C cable to power on the device. Alternatively,
connect the device and PC to export files.
Steps
1. Lift the cable interface cover.
2. Connect the device and power adapter with a Type-C cable to power on the device.
Alternatively, connect the device and PC to export files.

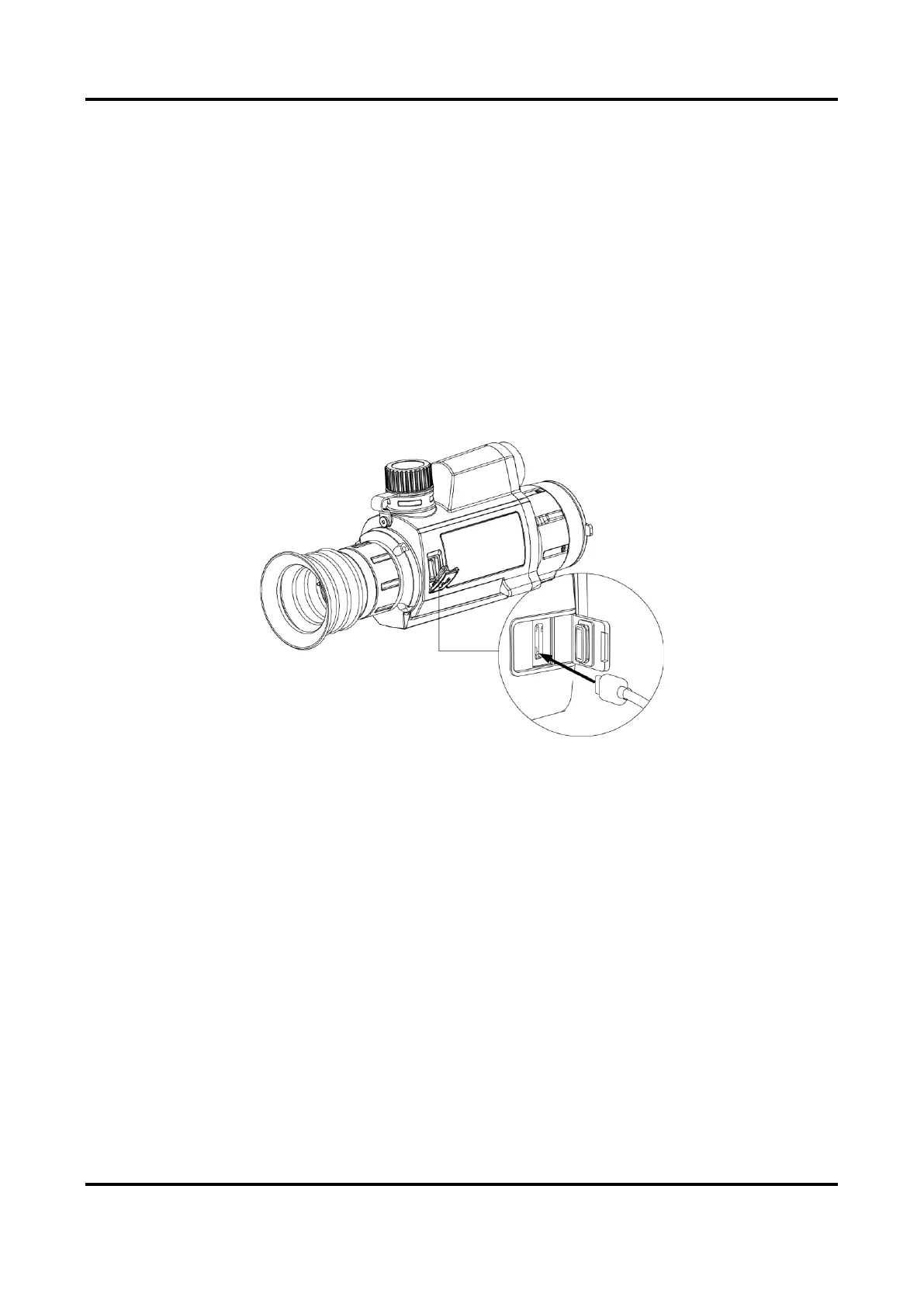

Figure 2-1 Cable Connection
2.2 Install Battery
Insert the batteries into the battery compartment.
Steps
1. Turn the battery cover anticlockwise to loosen it.
