HIKVISION DS-1004KI User Manual

User Manual of the DS-1004K keyboard
10

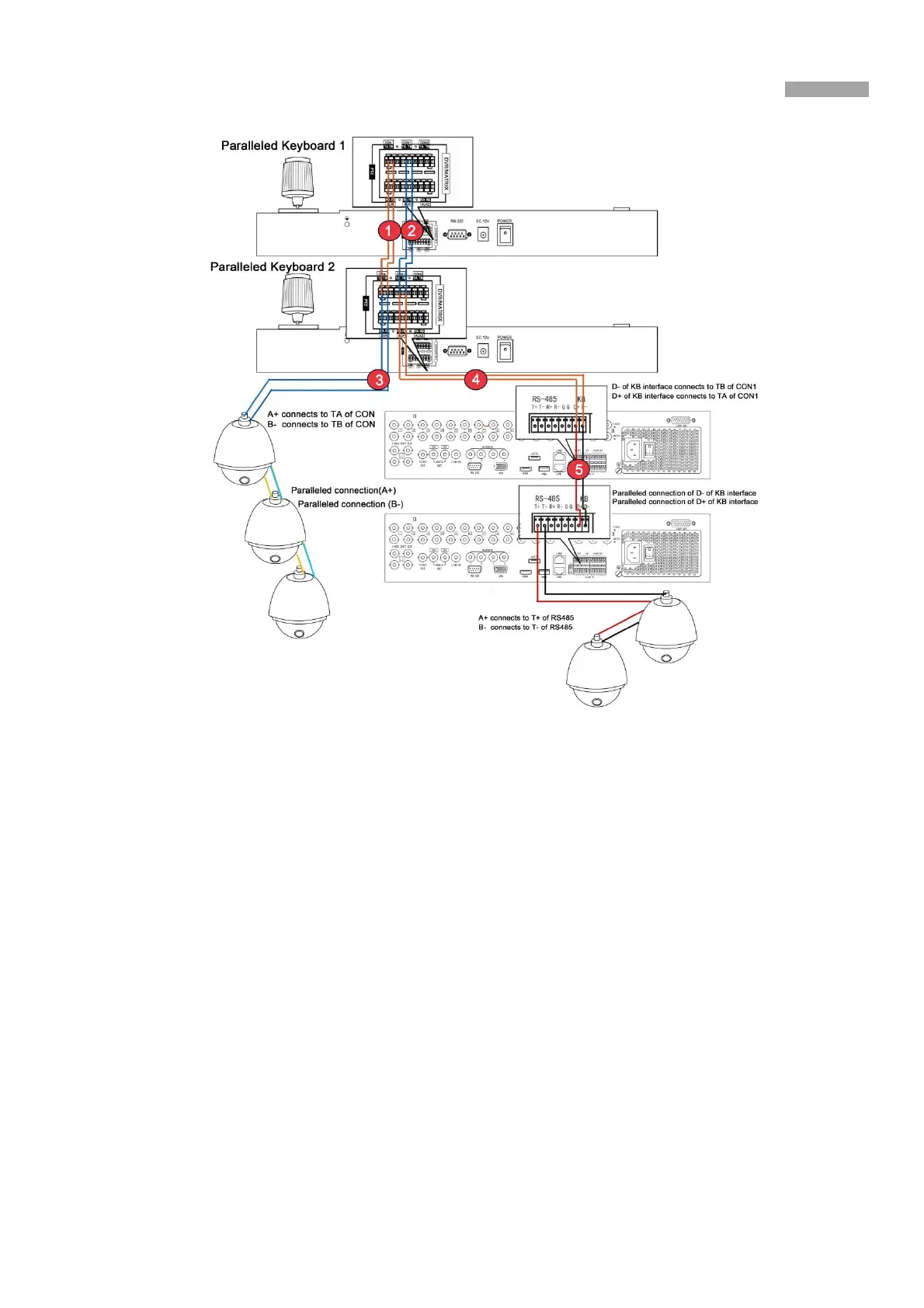

Figure 2-5 Connection between the paralleled keyboards, the keyboards and the dome camera, the keyboard and the
DVRs
① shows the connection of keyboard when they are connected to each other to control the dome camera. PTZ-CON interface: TA
connects TA, TB connects TB.
③ shows the connection between the keyboard and the dome camera. PTZ-CON TA connects 485+, TB connects 485-.
② shows the connection between the paralleled connected keyboard and DVR/NVR. DVR-CON: TA connects TA and TB
connects TB.
④ shows the connection between the keyboard and DVR/NVR. DVR-CON1 TA connects D+ of KB and DVR-CON1 TB
connects D- of KB.

HIKVISION DS-1004KI Specifications

General

Numeric keypad	Yes
Keyboard layout	-
Pointing device	Trackball
Device interface	RS-485
Connectivity technology	Wired
Wrist rest	No
Product color	Black
Keyboard style	Straight
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product type	Control panel
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	163 mm
Width	434 mm
Height	43 mm
Keyboard weight	1250 g
Keyboard dimensions (WxDxH)	434 x 163 x 43 mm
