Installation Manual of Network Camera
3
below:

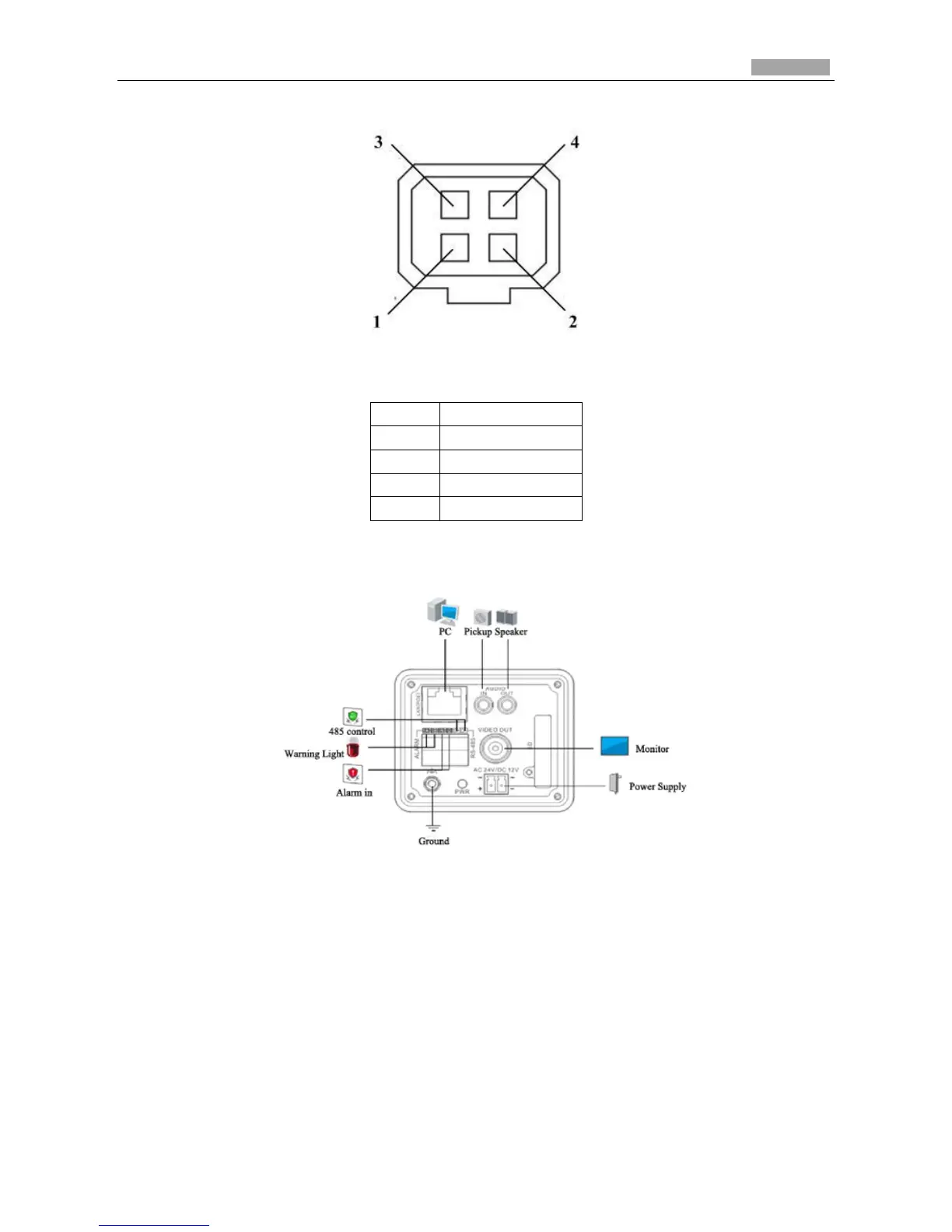

Figure 2-2 Auto-iris Interface
Table 2-2 Pins
DC-driven
1
Damp-
2
Damp+
3
Drive+
4
Drive-
Damp+, Damp-, Drive+ and Drive- pins are used when the auto-iris is driven by DC.
Camera wiring Diagram:
Figure 2-3 Wiring Diagram
2.1.2 Box Camera II
Camera description:
