Note:
To reset the default parameters to the camera, you need to press and hold the RESET button and
power on the camera. After the power on of the camera, you must still press and hold the Reset
button for about 20 seconds.

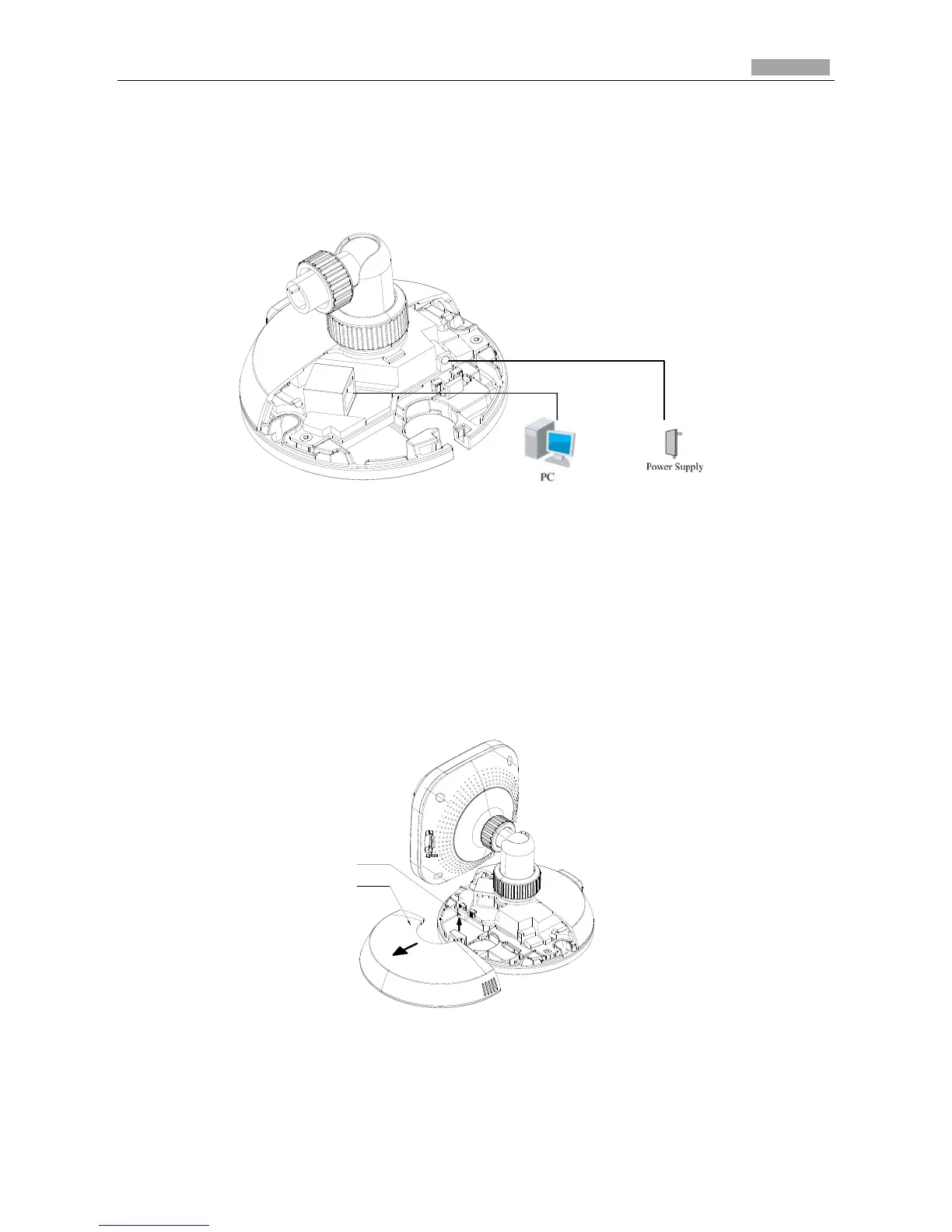

Camera wiring diagram:
Figure 5-7 Wiring Diagram
5.2.4 Installation
The cube camera can be installed to wall, ceiling or table. Ceiling mounting is taken as an example in
this section; if you adopt wall mounting or table mounting, you can also take below procedure as a
reference.
Steps:
1. Slide the right cover to remove it from the camera. Remove the fixator.
Figure 5-8 Remove the Side Cover
2. Remove the battery cover; insert the battery; reinstall the battery cover.
Note: If you want to install the battery, then you can take this step.
