HIKVISION DS-2CD754FWD-E Installation Manual

Installation Manual of Network Camera
2
Chapter 2 Box Camera Installation
2.1 Appearance Description
2.1.1 Box Camera I
Camera description:

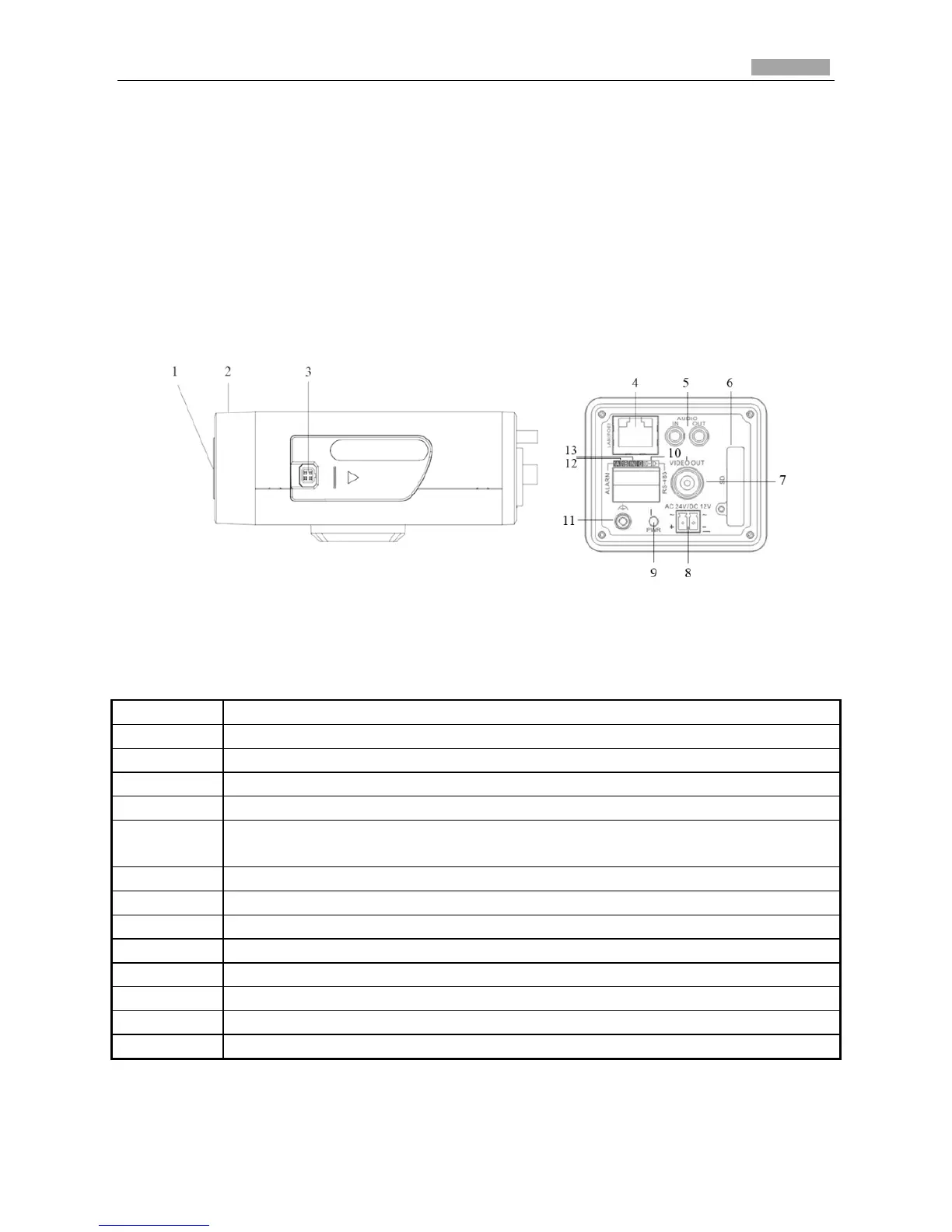

Figure 2-1 Overview
Table 2-1 Description
No.
Description
1
CS Lens mount
2
Back focus ring
3
Auto-iris interface
4
10M/100M self-adaptive Ethernet interface
5
AUDIO IN: Audio input interface
AUDIO OUT: Audio output interface
6
SD: SD card slot
7
VIDEO OUT: Video output interface
8
Power supply interface
9
PWR: Power LED indicator
10
D+, D-: RS-485 interface
11
Ground
12
1A, 1B: Alarm output interface
13
IN, G: Alarm input interface
Note: The type of auto-iris interface is shown in Figure 2-2, and the definition of each pin is shown

HIKVISION DS-2CD754FWD-E Specifications

General

Brand	HIKVISION
Model	DS-2CD754FWD-E
Category	Security Camera
Language	English
