HIKVISION DS-2CD754FWD-E Installation Manual

Installation Manual of Network Camera
17
No.
Description
1
10M/100M self-adaptive Ethernet interface
2
AUDIO IN: Audio input interface
3
AUDIO OUT: Audio output interface
4
D+, D-: RS-485 interface
5
IN, G: Alarm input interface
1A, 1B: Alarm output interface
6
Power supply interface

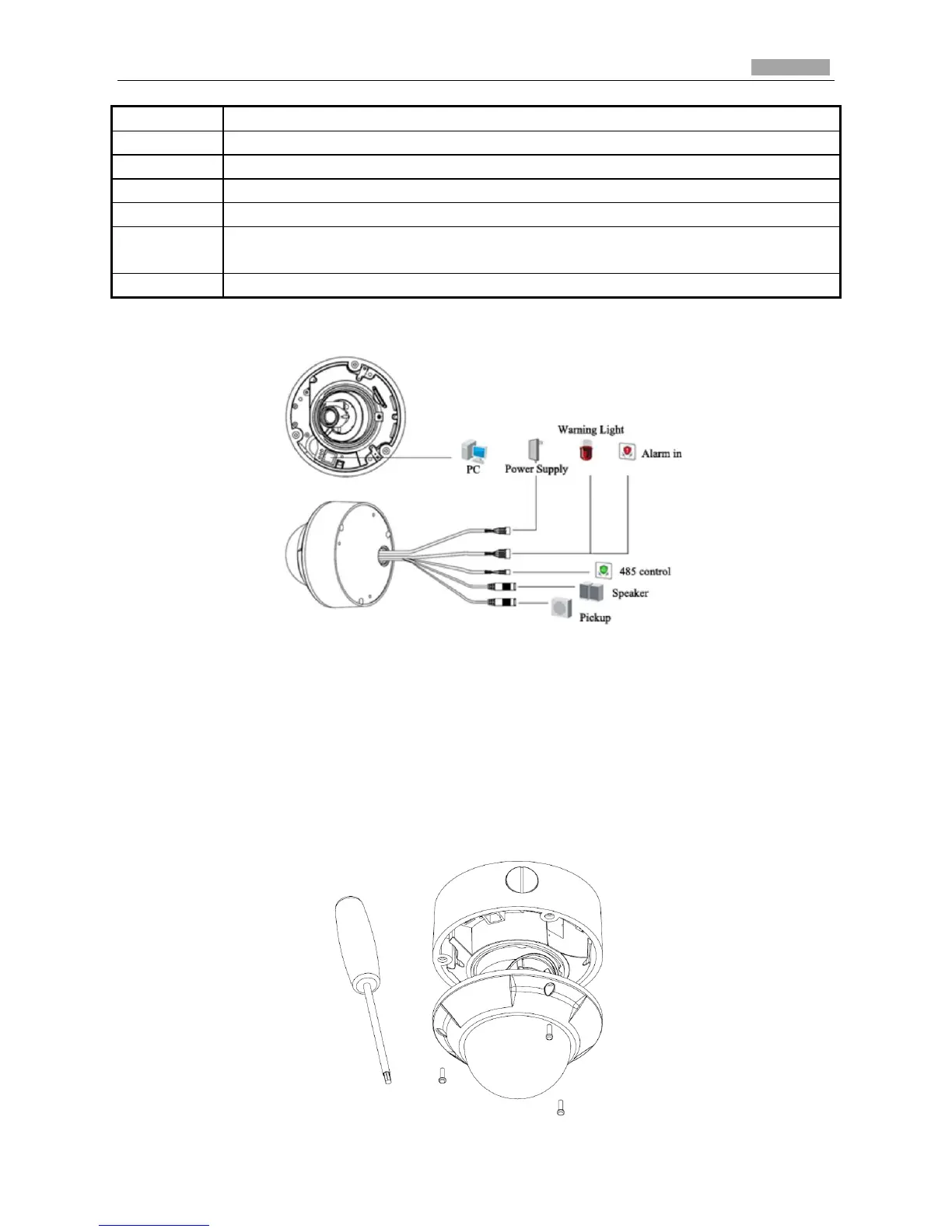

Camera wiring Diagram:
Figure 3-7 Wiring Diagram
3.2.2 Installation
The ceiling mounting and wall mounting are available for dome camera II. For wall mounting, you
need to use special vandal-proof bracket.
Steps:
1. Loosen the screw with the hex key (supplied) and remove the lower dome.
