HIKVISION DS-2CD754FWD-E Installation Manual

Installation Manual of Network Camera
28

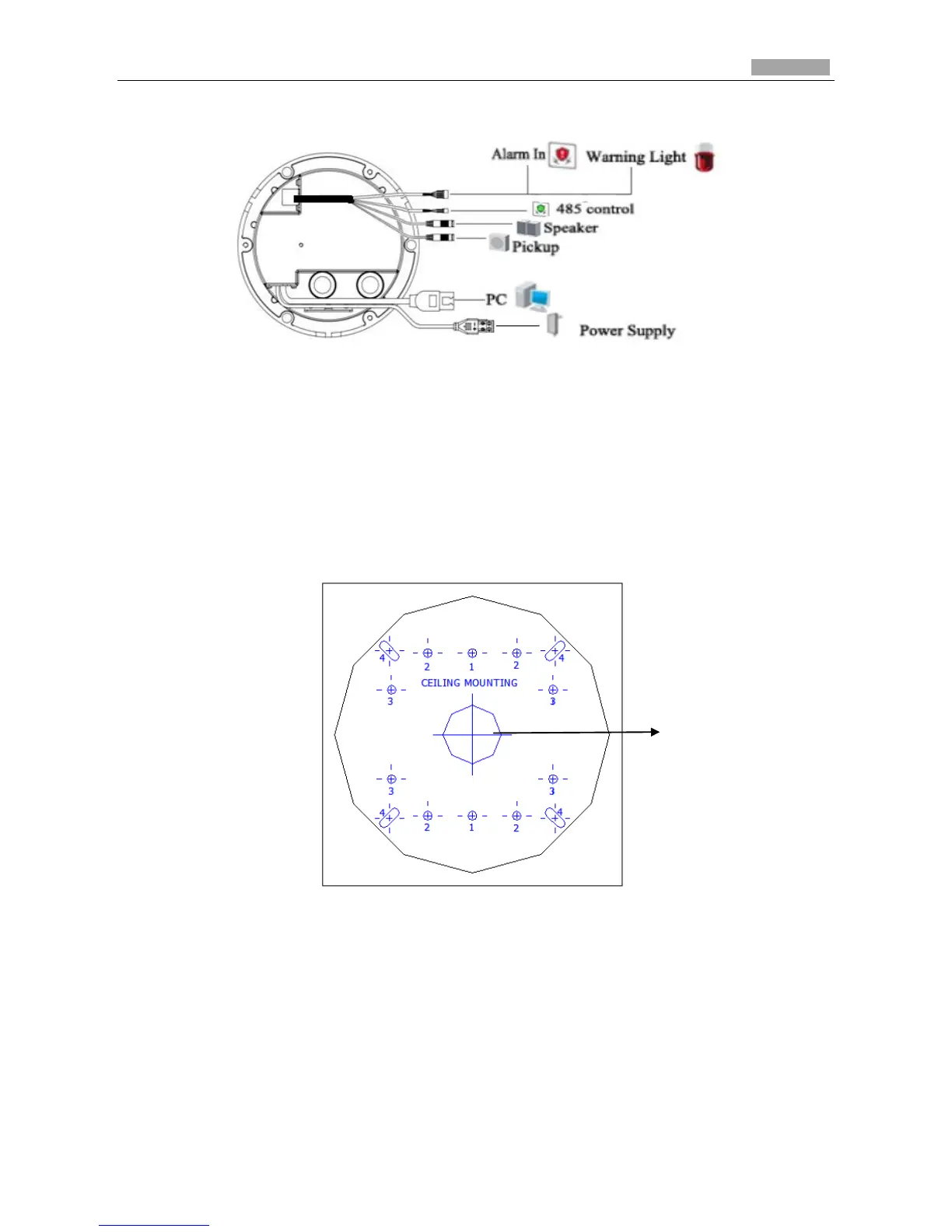

Camera wiring Diagram:
Figure 3-28 Wiring Diagram
3.4.2 Installation
Ceiling mounting:
Steps:
1. Drill the screw holes on the ceiling with the supplied drilling template. If you need to route the
cables from the bottom of the camera, cut a cable hole in the ceiling.
Figure 3-29 Drill Template
2. Secure the back box to the ceiling with screws.
Cable hole
