HIKVISION DS-2CD754FWD-E Installation Manual

Installation Manual of Network Camera
29

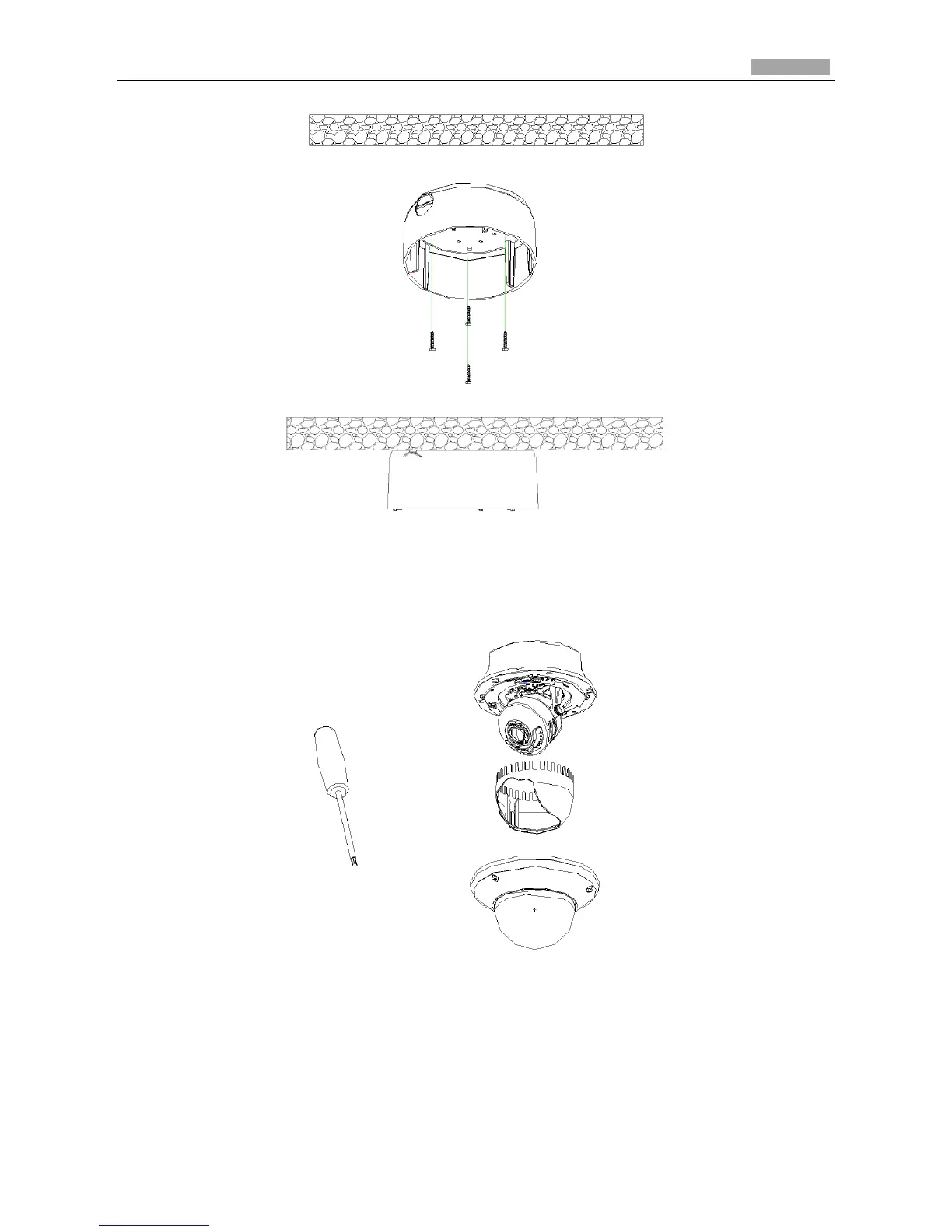

Figure 3-30 Mount the Back Box
3. Loosen the set screws with the hex key (supplied) to remove the lower dome; remove the dome
liner.
Figure 3-31 Remove the Lower Dome
4. Install the dome module to the back box and pull the cables through the cable outlet on the
bottom of the back box.

HIKVISION DS-2CD754FWD-E Specifications

General

Brand	HIKVISION
Model	DS-2CD754FWD-E
Category	Security Camera
Language	English
