HIKVISION DS-2CD754FWD-E Installation Manual

Installation Manual of Network Camera
22

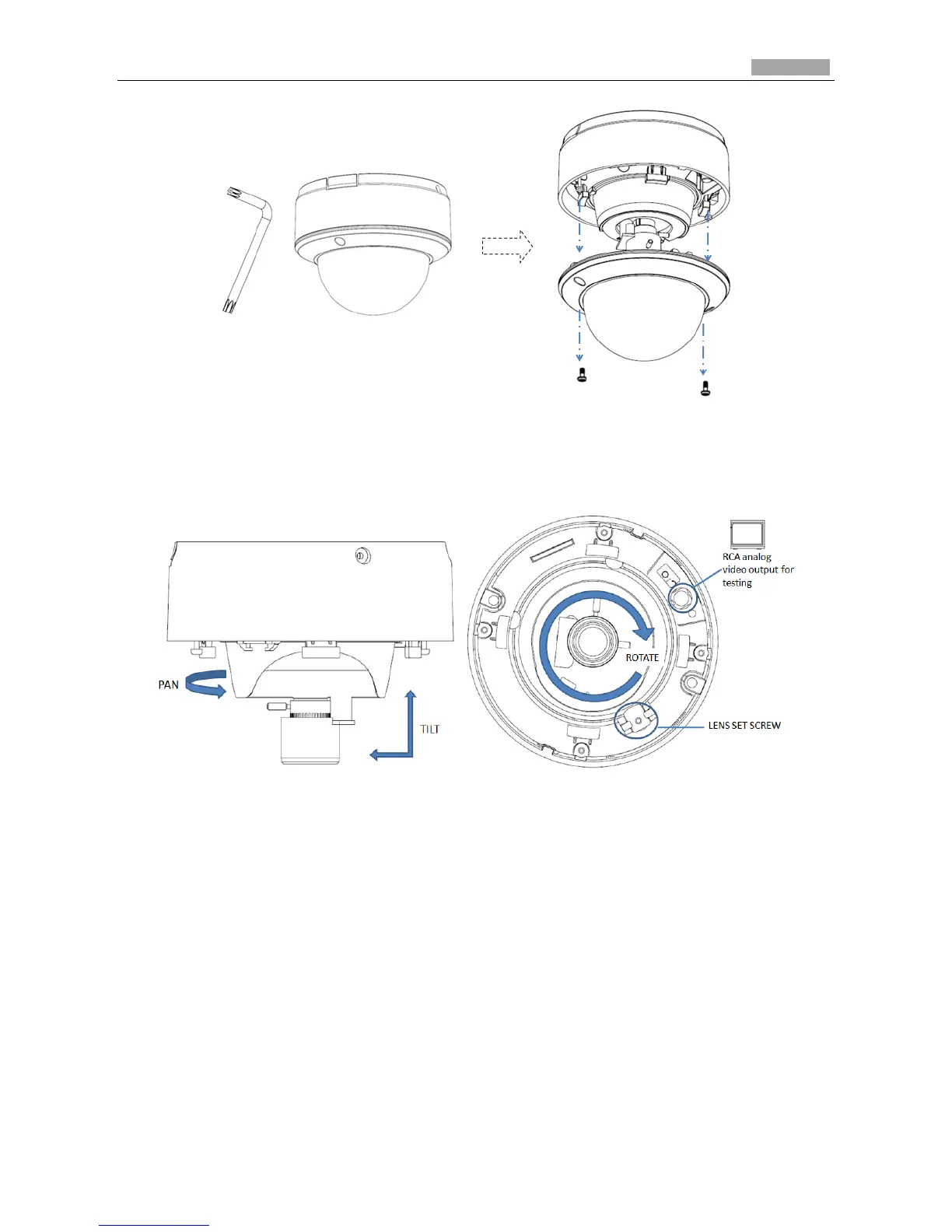

Figure 3-17 Remove the Lower Dome
3. Connect the RCA analog video output with a monitor to view the image of the camera. Loosen
the lens set screw and pan, tilt or rotate the lens to get a desired surveillance angle. Adjust the
lens focus to obtain a perfect image. Fasten the lens set screw.
Figure 3-18 Adjust the image
4. Reinstall the lower dome and tighten the screws.
