© Hikvision
6.2 Configuring Video and Audio Settings
6.2.1 Configuring Video Settings
Steps:
1. Enter the Video settings interface:
Configuration > Video/Audio > Video

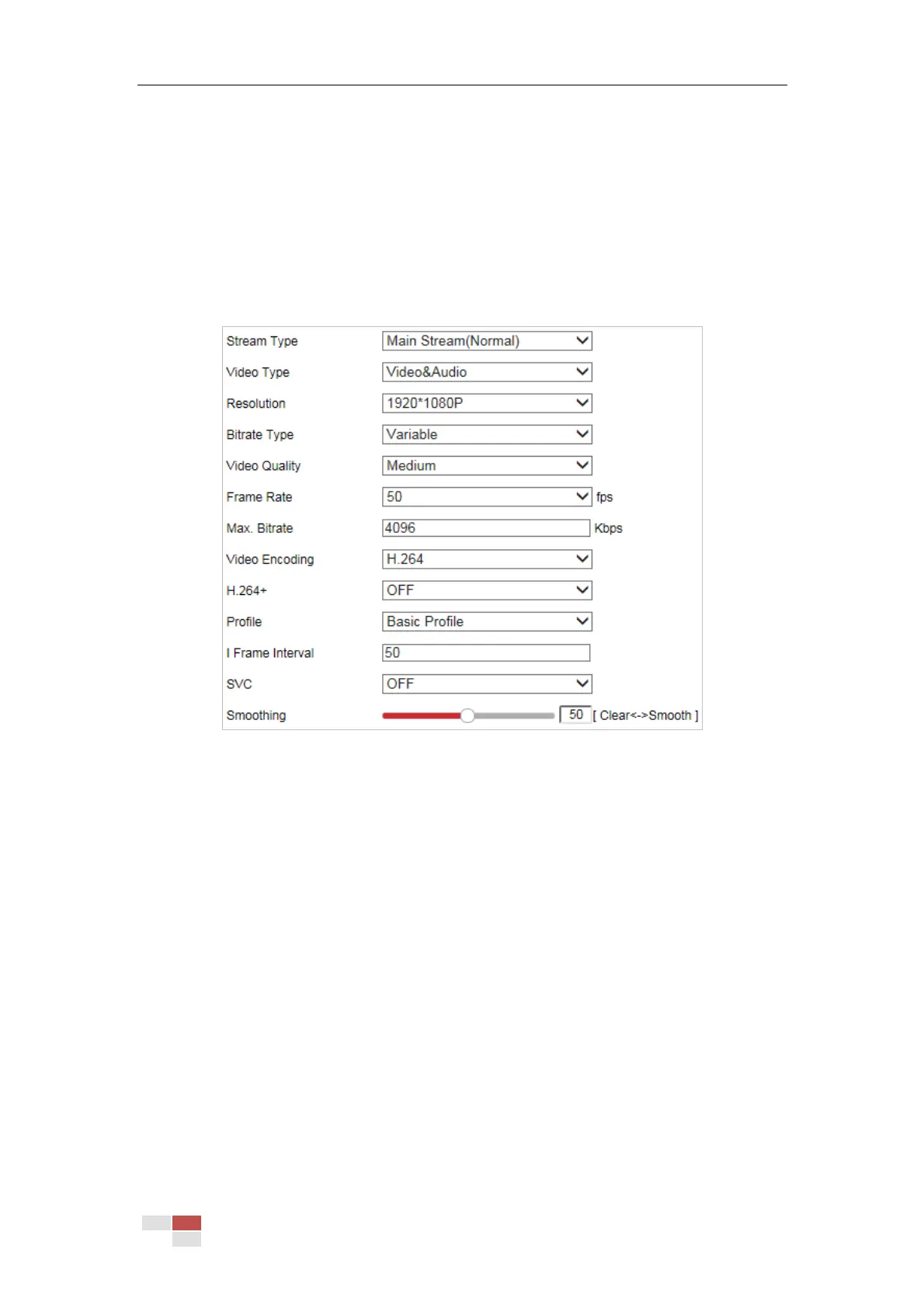

Figure 6-21 Configure Video Settings
2. (Optional) Check the checkbox to enable the Stream Adaption. If the function is enabled, the
live view takes the image smoothing as a priority. The camera adjusts video-related
parameters automatically, and the pre-set video-related configuration is invalid.
Notes:
A reboot is required for the function to take effect.
The function is only available for certain models.
3. Select the Stream Type of the camera to Main Stream (Normal), Sub-stream or Third Stream.
The main stream is usually for recording and live viewing with good bandwidth, and the
sub-stream can be used for live viewing when the bandwidth is limited. Refer to the Section
4.2 Configuring Local Parameters for switching the main stream and sub-stream for live
viewing.
4. You can customize the following parameters for the selected stream.
Note:
The parameters vary depending on different camera models.
Video Type:
Select the stream type to video stream, or video & audio composite stream. The audio signal
will be recorded only when the Video Type is Video & Audio.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-2DE4225W-DE and is the answer not in the manual?

HIKVISION DS-2DE4225W-DE Specifications

General IconGeneral
Sensor typeCMOS
Progressive scanYes
Number of sensors1
Optical sensor size1/2.8 \
FocusMotorized/Manual
Digital zoom16 x
Optical zoom25 x
Focal length range- mm
Maximum aperture number3.5
Minimum aperture number1.6
Closest focusing distance0.01 m
Pan range0 - 360 °
Pan speed160 °/sec
White balanceATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
Tilt angle range0 - 90 °
Camera shutter speed1/1 - 1/30000 s
Minimum illumination0.001 lx
Total megapixels2 MP
Gain control typeAuto/Manual
Maximum resolution1920 x 1080 pixels
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Noise reduction technology3D noise reduction
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
TypeIP security camera
PTZ modesAuto Scan, Preset point
Languages supportBUL, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR
Number of languages32
Placement supportedOutdoor
Connectivity technologyWired
Voice codecsG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
Audio input channels1 channels
Audio formats supportedPCM
Behavior analysisIntrusion detection, Line crossing detection, Object removal detection, Unattended baggage detection
Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size256 GB
Number of users32 user(s)
Networking standardsIEEE 802.1x, IEEE 802.3at
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
DC output voltage12
Power source typeDC, PoE
Power consumption (max)18 W
Operating temperature (T-T)-30 - 65 °C
Operating relative humidity (H-H)0 - 90 %
Form factorDome
Mounting typeCeiling/wall
Product colorBlack, White
International Protection (IP) codeIP66
Weight and Dimensions IconWeight and Dimensions
Height239.5 mm
Weight2000 g
Diameter180 mm
