HIKVISION DS-2DE4225W-DE User Manual

© Hikvision
(2) In the Domain text field, enter the domain name obtained from the DynDNS website.
(3) Enter the Port of DynDNS server.
(4) Enter the User Name and Password registered on the DynDNS website.
(5) Click to save the settings.

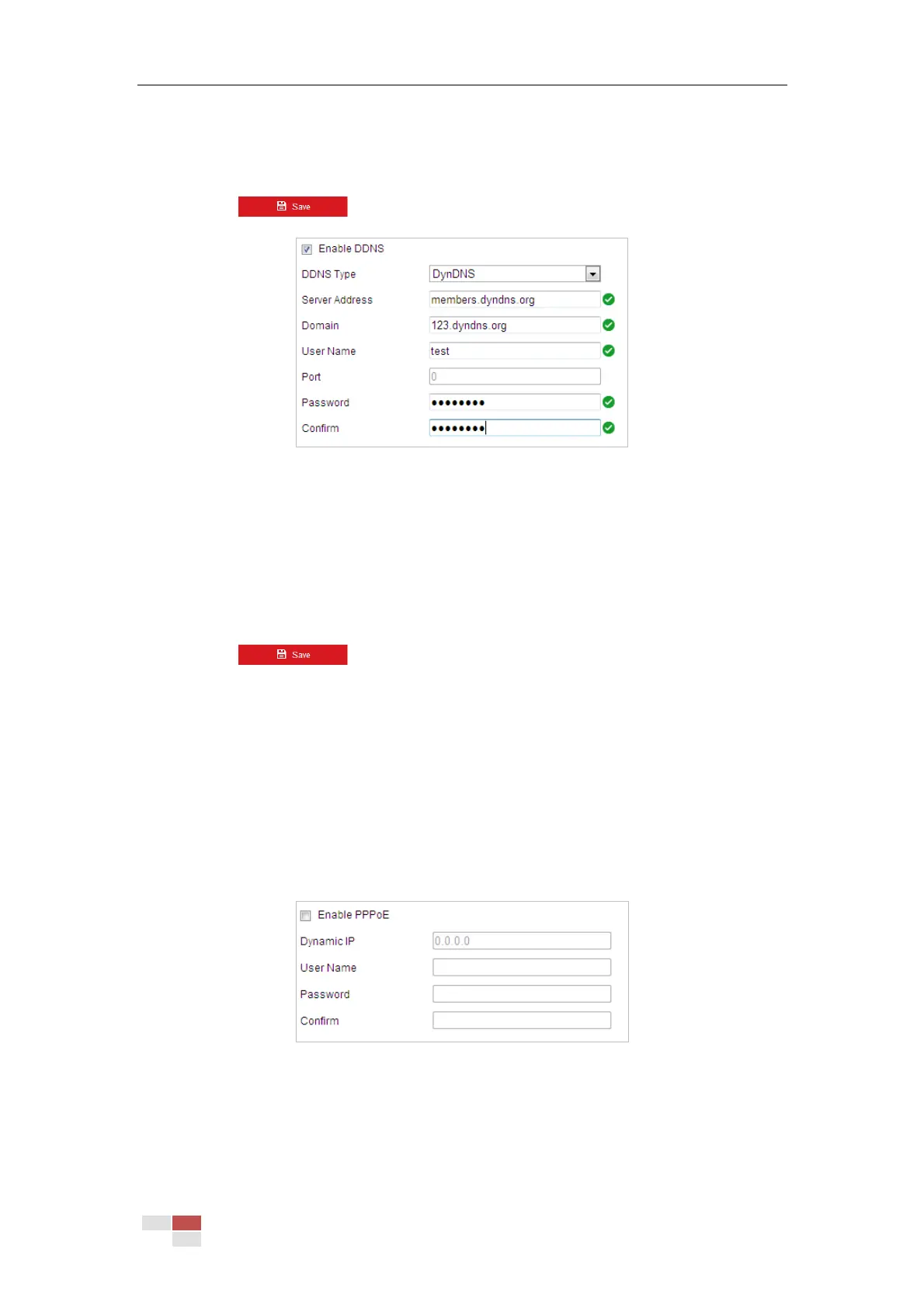

Figure 6-3 DynDNS Settings
 NO-IP:
Steps:
(1) Enter Server Address of NO-IP.
(2) In the Domain text field, enter the domain name obtained from the NO-IP website.
(3) Enter the Port of NO-IP server.
(4) Enter the User Name and Password registered on the NO-IP website.
(5) Click to save the settings.
Configuring PPPoE Settings
Purpose:
If you have no router but only a modem, you can use Point-to-Point Protocol over Ethernet
(PPPoE) function.
Steps:
1. Enter the PPPoE settings interface:
Configuration > Network > Basic Settings > PPPoE
Figure 6-4 PPPoE Settings
2. Check the Enable PPPoE checkbox to enable this feature.
3. Enter User Name, Password, and Confirm password for PPPoE access.
Note:
The User Name and Password should be assigned by your ISP.

HIKVISION DS-2DE4225W-DE Specifications

General

Sensor type	CMOS
Progressive scan	Yes
Number of sensors	1
Optical sensor size	1/2.8 \
Focus	Motorized/Manual
Digital zoom	16 x
Optical zoom	25 x
Focal length range	- mm
Maximum aperture number	3.5
Minimum aperture number	1.6
Closest focusing distance	0.01 m
Pan range	0 - 360 °
Pan speed	160 °/sec
White balance	ATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
Tilt angle range	0 - 90 °
Camera shutter speed	1/1 - 1/30000 s
Minimum illumination	0.001 lx
Total megapixels	2 MP
Gain control type	Auto/Manual
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Noise reduction technology	3D noise reduction
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Type	IP security camera
PTZ modes	Auto Scan, Preset point
Languages support	BUL, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR
Number of languages	32
Placement supported	Outdoor
Connectivity technology	Wired
Voice codecs	G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
Audio input channels	1 channels
Audio formats supported	PCM
Behavior analysis	Intrusion detection, Line crossing detection, Object removal detection, Unattended baggage detection
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Number of users	32 user(s)
Networking standards	IEEE 802.1x, IEEE 802.3at
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	18 W
Operating temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
Form factor	Dome
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66

Weight and Dimensions

Height	239.5 mm
Weight	2000 g
Diameter	180 mm
