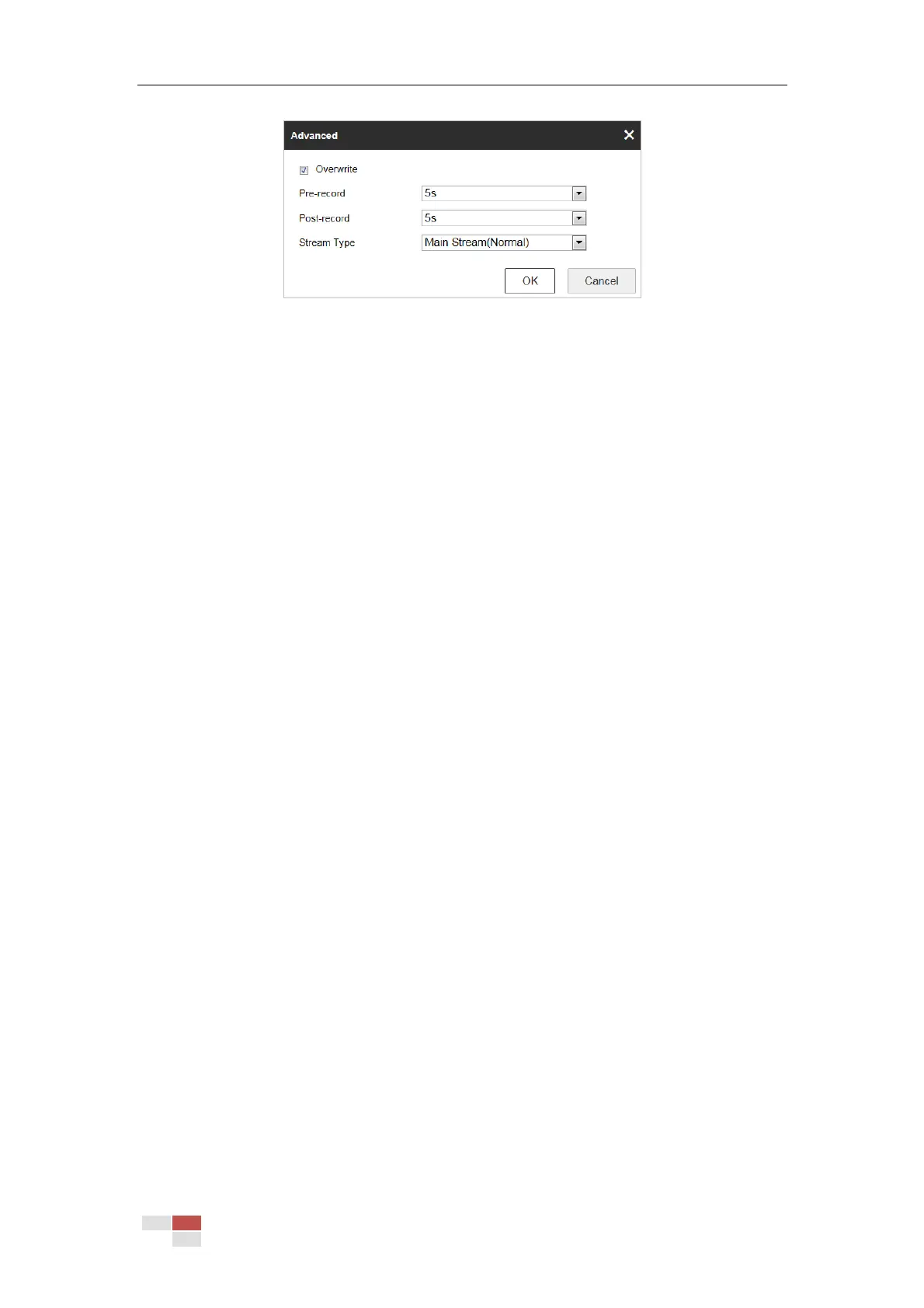

Figure 5-2 Record Parameters
 Pre-record: The time you set to start recording before the scheduled time or the event.
For example, if an alarm triggers recording at 10:00, and the pre-record time is set as 5
seconds, the camera starts to record at 9:59:55.
The pre-record time can be configured as No Pre-record, 5 s, 10 s, 15 s, 20 s, 25 s, 30 s or
not limited.
Note:
The pre-record time changes according to the video bitrate.
 Post-record: The time you set to stop recording after the scheduled time or the event.
For example, if an alarm triggered recording ends at 11:00, and the post-record time is
set as 5 seconds, the camera records until 11:00:05.
The Post-record time can be configured as 5 s, 10 s, 30 s, 1 min, 2 min, 5 min or 10 min.
 Stream Type: You can select the stream type for recording; Main Stream and Sub-stream
are selectable. If you select Sub-stream, you can record for a longer time with the same
storage capacity.
 Overwrite: If you enable his function and the HDD is full, the new record files overwrite
the oldest record files automatically.
Note:
The Pre-record and Post-record parameters vary depending on different camera models.
4. Click OK to save the advanced setting.
5. Select a Record Type. The record type can be Continuous, Motion, Alarm, Motion | Alarm,
Motion & Alarm, and Event.
 Normal: If you select Continuous, the video will be recorded automatically according to
the time of the schedule.
 Record Triggered by Motion Detection: If you select Motion, the video will be recorded
when the motion is detected. Besides configuring the recording schedule, you have to
set the motion detection area and check the checkbox of Trigger Channel in the Linkage
Method of Motion Detection settings interface. For detailed information, refer to
Section 5.2.1 Configuring Motion Detection.
 Record Triggered by Alarm: If you select Alarm, the video will be recorded when the
alarm is triggered via the external alarm input channels. Besides configuring the
recording schedule, you have to set the Alarm Type and check the checkbox of Trigger
Channel in the Linkage Method of Alarm Input settings interface. For detailed
information, refer to Section 5.2.3 Configuring Alarm Input.
Note:
The function is only supported by certain camera models.

HIKVISION DS-2DE4225W-DE Specifications

General

Sensor type	CMOS
Progressive scan	Yes
Number of sensors	1
Optical sensor size	1/2.8 \
Focus	Motorized/Manual
Digital zoom	16 x
Optical zoom	25 x
Focal length range	- mm
Maximum aperture number	3.5
Minimum aperture number	1.6
Closest focusing distance	0.01 m
Pan range	0 - 360 °
Pan speed	160 °/sec
White balance	ATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
Tilt angle range	0 - 90 °
Camera shutter speed	1/1 - 1/30000 s
Minimum illumination	0.001 lx
Total megapixels	2 MP
Gain control type	Auto/Manual
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Noise reduction technology	3D noise reduction
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Type	IP security camera
PTZ modes	Auto Scan, Preset point
Languages support	BUL, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR
Number of languages	32
Placement supported	Outdoor
Connectivity technology	Wired
Voice codecs	G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
Audio input channels	1 channels
Audio formats supported	PCM
Behavior analysis	Intrusion detection, Line crossing detection, Object removal detection, Unattended baggage detection
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Number of users	32 user(s)
Networking standards	IEEE 802.1x, IEEE 802.3at
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	18 W
Operating temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
Form factor	Dome
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66

Weight and Dimensions

Height	239.5 mm
Weight	2000 g
Diameter	180 mm
