HIKVISION DS-2DE4225W-DE User Manual

© Hikvision

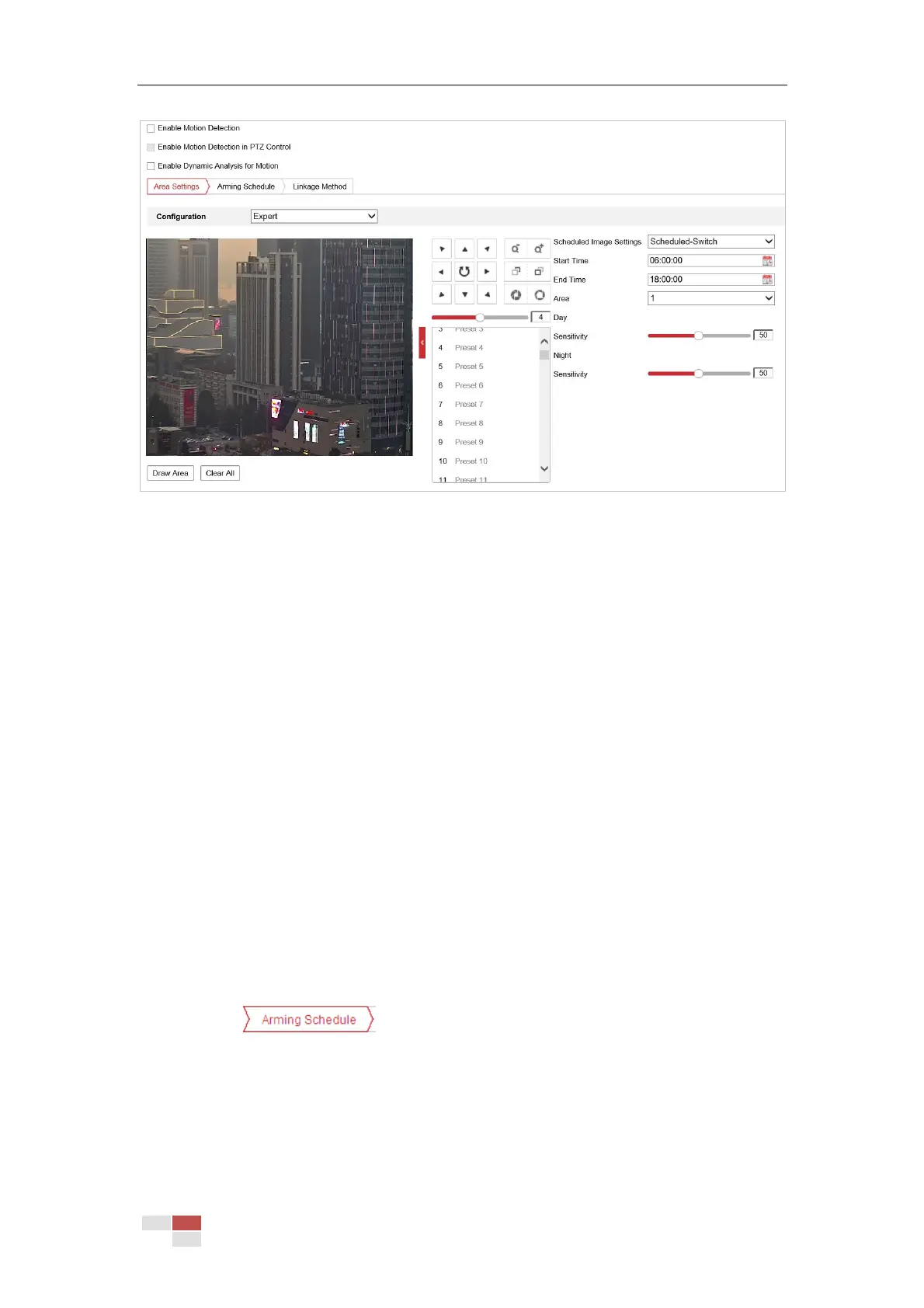

Figure 5-11 Motion Detection Settings-Expert
Steps:
(1) Set the Scheduled Image Settings, there are OFF, Auto-Switch and Scheduled-Switch
selectable. If the schedule image switch mode is enabled, you can configure the
detection rule for the day and night separately.
OFF: Disable the day and night switch.
Auto-Switch: Switch the day and night mode according to the illumination
automatically.
Scheduled-Switch: Switch to the day mode and the night mode according to the
configured time. You need to set the start time and end time.
(2) Select Area from the dropdown list to configure.
(3) Set the value of sensitivity.
Sensitivity: The higher the value is, the easier the alarm will be triggered.
(4) Percentage: When the size proportion of the moving object exceeds the predefined
value, the alarm will be triggered. The less the value is, the easier the alarm will be
triggered.
Note:
Percentage is only supported by certain camera models.
4. Set the Arming Schedule for Motion Detection.
Steps:
(1) Click tab to enter the arming schedule setting interface.

HIKVISION DS-2DE4225W-DE Specifications

General

Sensor type	CMOS
Progressive scan	Yes
Number of sensors	1
Optical sensor size	1/2.8 \
Focus	Motorized/Manual
Digital zoom	16 x
Optical zoom	25 x
Focal length range	- mm
Maximum aperture number	3.5
Minimum aperture number	1.6
Closest focusing distance	0.01 m
Pan range	0 - 360 °
Pan speed	160 °/sec
White balance	ATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
Tilt angle range	0 - 90 °
Camera shutter speed	1/1 - 1/30000 s
Minimum illumination	0.001 lx
Total megapixels	2 MP
Gain control type	Auto/Manual
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Noise reduction technology	3D noise reduction
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Type	IP security camera
PTZ modes	Auto Scan, Preset point
Languages support	BUL, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR
Number of languages	32
Placement supported	Outdoor
Connectivity technology	Wired
Voice codecs	G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
Audio input channels	1 channels
Audio formats supported	PCM
Behavior analysis	Intrusion detection, Line crossing detection, Object removal detection, Unattended baggage detection
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Number of users	32 user(s)
Networking standards	IEEE 802.1x, IEEE 802.3at
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	18 W
Operating temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
Form factor	Dome
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66

Weight and Dimensions

Height	239.5 mm
Weight	2000 g
Diameter	180 mm
