(5) Click to save the settings.
Note:
The time of each period cannot be overlapped. Up to 8 periods can be configured for each
day.
5. Set the Alarm Actions for Motion Detection.
Click tab to enter the Linkage Method interface.
You can specify the linkage method when an event occurs. The following contents are about
how to configure the different types of linkage method.

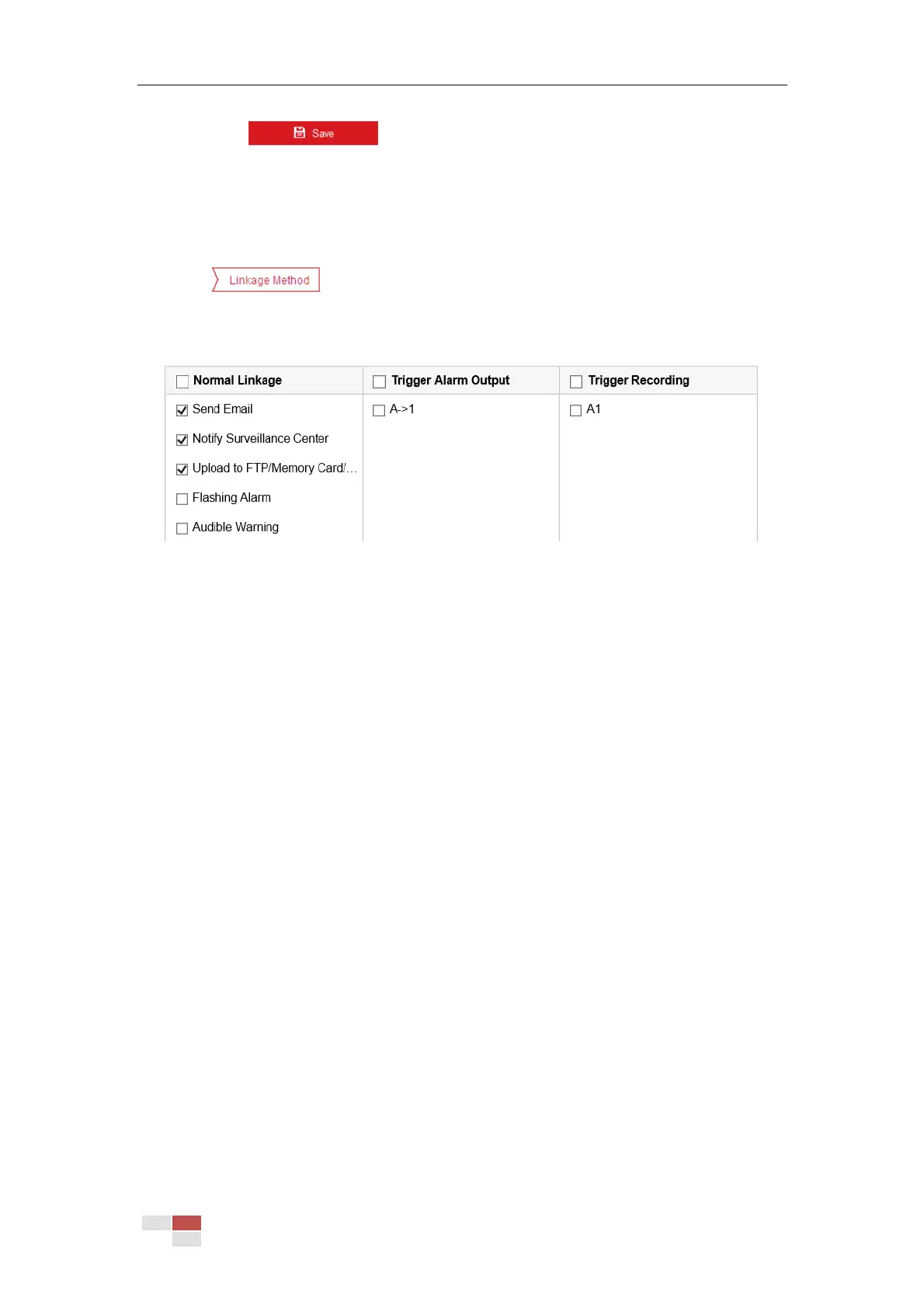

Figure 5-15 Linkage Method
Check the checkbox to select the linkage method. Send Email, Notify Surveillance
Center and Upload to FTP/Memory/NAS are selectable.
Send Email
Send an email with alarm information to a user or users when an event occurs.
Note:
To send the Email when an event occurs, you need to refer to Section 3 Configuring
Email Settings to set the Email parameters.
Notify Surveillance Center
Send an exception or alarm signal to remote management software when an event
occurs.
Upload to FTP/Memory/NAS
Capture the image when an alarm is triggered and upload the picture to a FTP server.
Note:
You need a FTP server and set FTP parameters first. Refer to Section 6.1.2 Configuring
FTP Settings for setting FTP parameters.
Smart Tracking
Track the moving objects automatically when an alarm is triggered.
Notes:
To configure the smart tracking, you need to refer to Section Configuring Smart
Tracking to set the parameters.
The function is only supported by certain camera models.
White Light Flashing
