HIKVISION DS-3WR12C User Manual

WiFi Router • User Guide
13

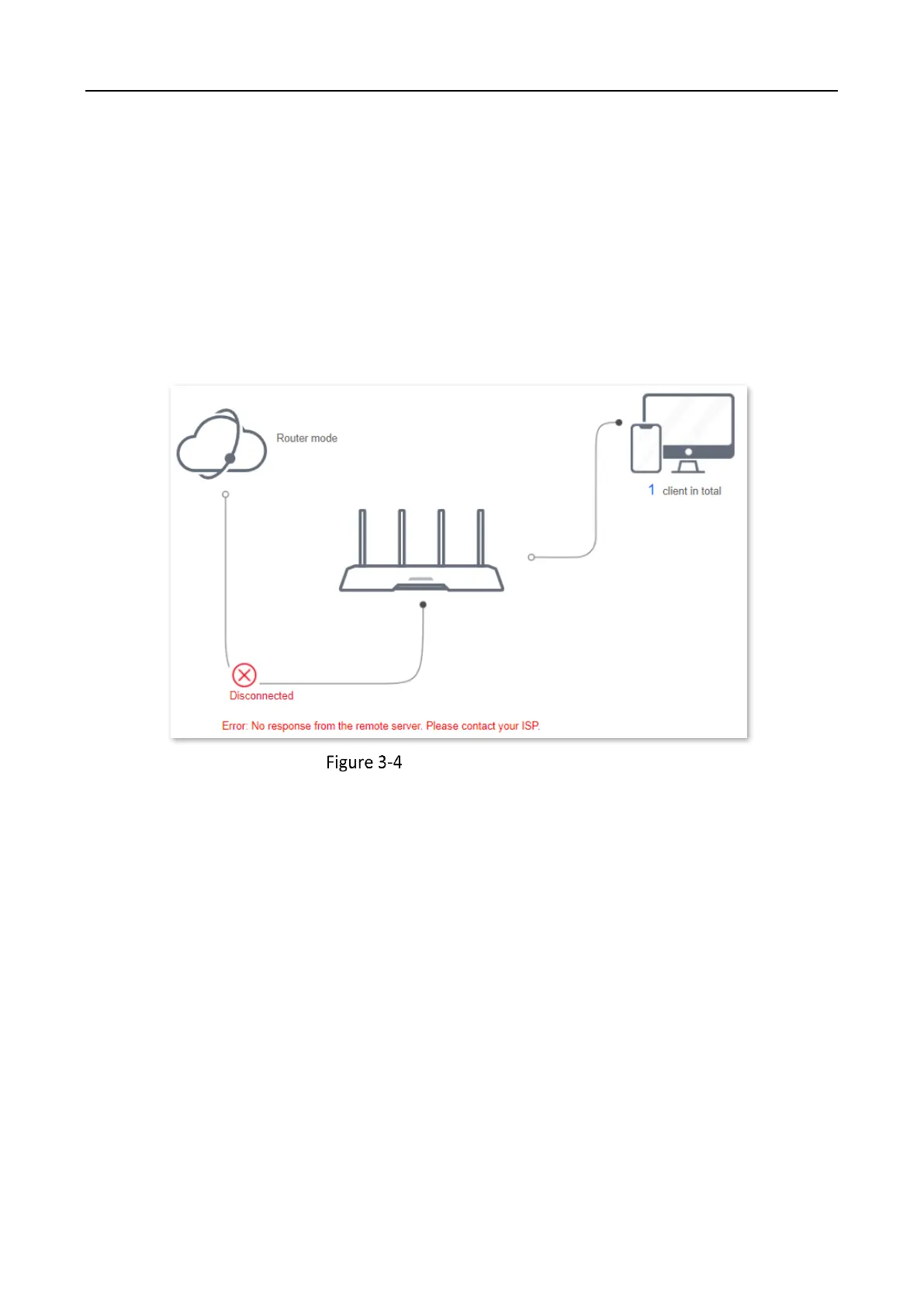

When a red cross and “Disconnected” are shown between the internet and the router, and Error:
No response from the remote server. Please contact your ISP. is shown on the page, try the
following solutions:
- Ensure that the Ethernet cable is connected properly.
- Ensure that you choose the proper connection type (Contact your ISP for any doubt about the
connection type).
- Power off the router and wait for several minutes, then power it on and try again.
If the problem persists, consult your ISP.
Internet connection status

HIKVISION DS-3WR12C Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Channels quantity	48 channels
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Product type	Tabletop router
Product color	Black
LED indicators	Link
Output current	1 A
Output voltage	9 V
Power source type	DC
Cables included	LAN (RJ-45)
Antenna type	2x2
Antennas quantity	4
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Package depth	59 mm
Package width	306 mm
Package height	290 mm
Number of products included	1 pc(s)
Storage temperature (T-T)	5 - 90 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	213.34 mm
Width	248.4 mm
Height	154.8 mm
Weight	222 g
