User Manual of Digital Video Recorder
name in the HiDDNS server first and then enter the alias to the Device Domain Name in the DVR;
you can also enter the domain name directly on the DVR to create a new one.

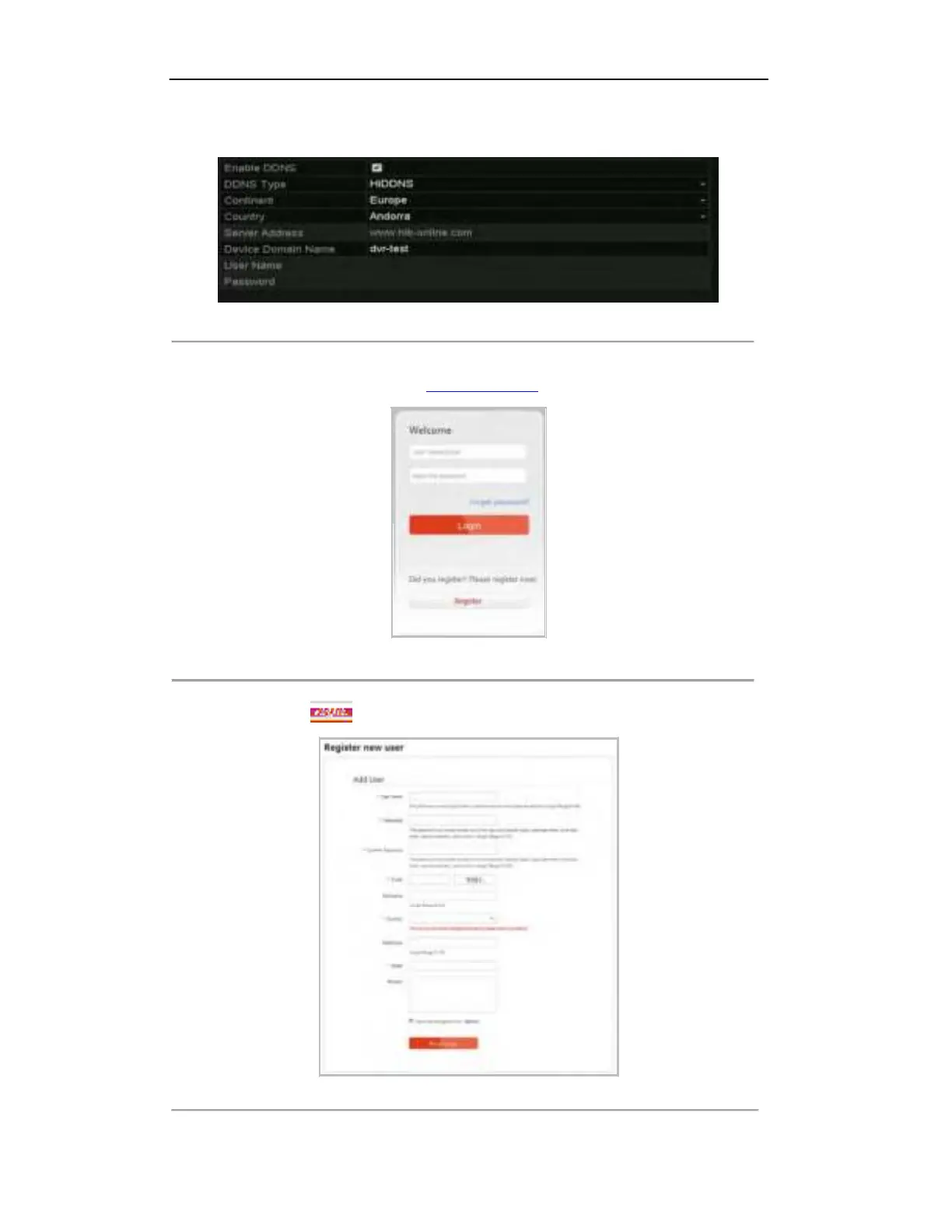

Figure 9. 8 HiDDNS Settings Interface
 Register the device on the HiDDNS server.
1) Go to the HiDDNS website: www.hik-online.com.
Figure 9. 9 Login Interface
2) Click to register an account if you do not have one and use the account to log in.
Figure 9. 10 Register an Account

HIKVISION DS-7100 Specifications

General

Video Compression	H.264
Video Input	4/8/16 channels
Audio Compression	G.711
Resolution	720P
Hard Drive	SATA
Network Interface	RJ45 10M / 100M Ethernet interface
USB Interface	2 x USB 2.0
Operating Temperature	-10 °C ~ +55 °C (14 °F ~ 131 °F)
Operating Humidity	10% ~ 90%
Audio Output	1-ch RCA(Linear, 1kΩ)
