166
User Manual of Digital Video Recorder
10.1 Initializing HDDs
Purpose:
A newly installed hard disk drive (HDD) must be initialized before it can be used with your DVR.
Steps:
1.
Enter the HDD Information interface.
Menu > HDD>General.

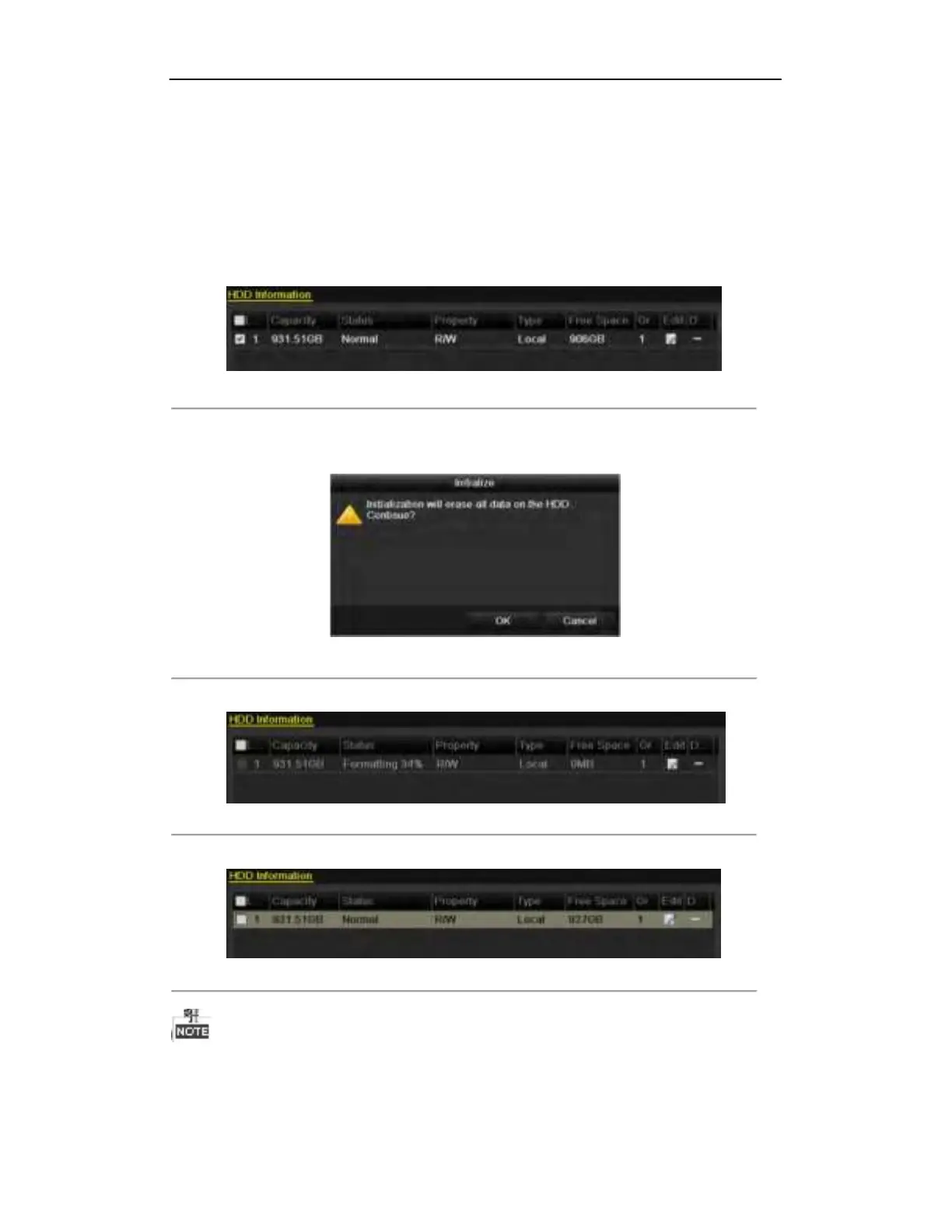

Figure 10. 1 HDD Information Interface
2.
Select HDD to be initialized.
3.
Click the
Init
button.
Figure 10. 2 Confirm Initialization
4.
Select the
OK
button to start initialization.
Figure 10. 3 Start Initialization
5.
After the HDD has been initialized, the status of the HDD will change from
Uninitialized
to
Normal
.
Figure 10. 4 HDD Status Changes to Normal
Initializing the HDD will erase all data on it.
The HDDs which are free of working for a long time can be enabled to sleep, thus to decrease the power
