User Manual of Digital Video Recorder
10.2 Managing Network HDD
Purpose:
You can add the allocated NAS or disk of IP SAN to DVR, and use it as network HDD.
Steps:
1. Enter the HDD Information interface.
Menu > HDD>General

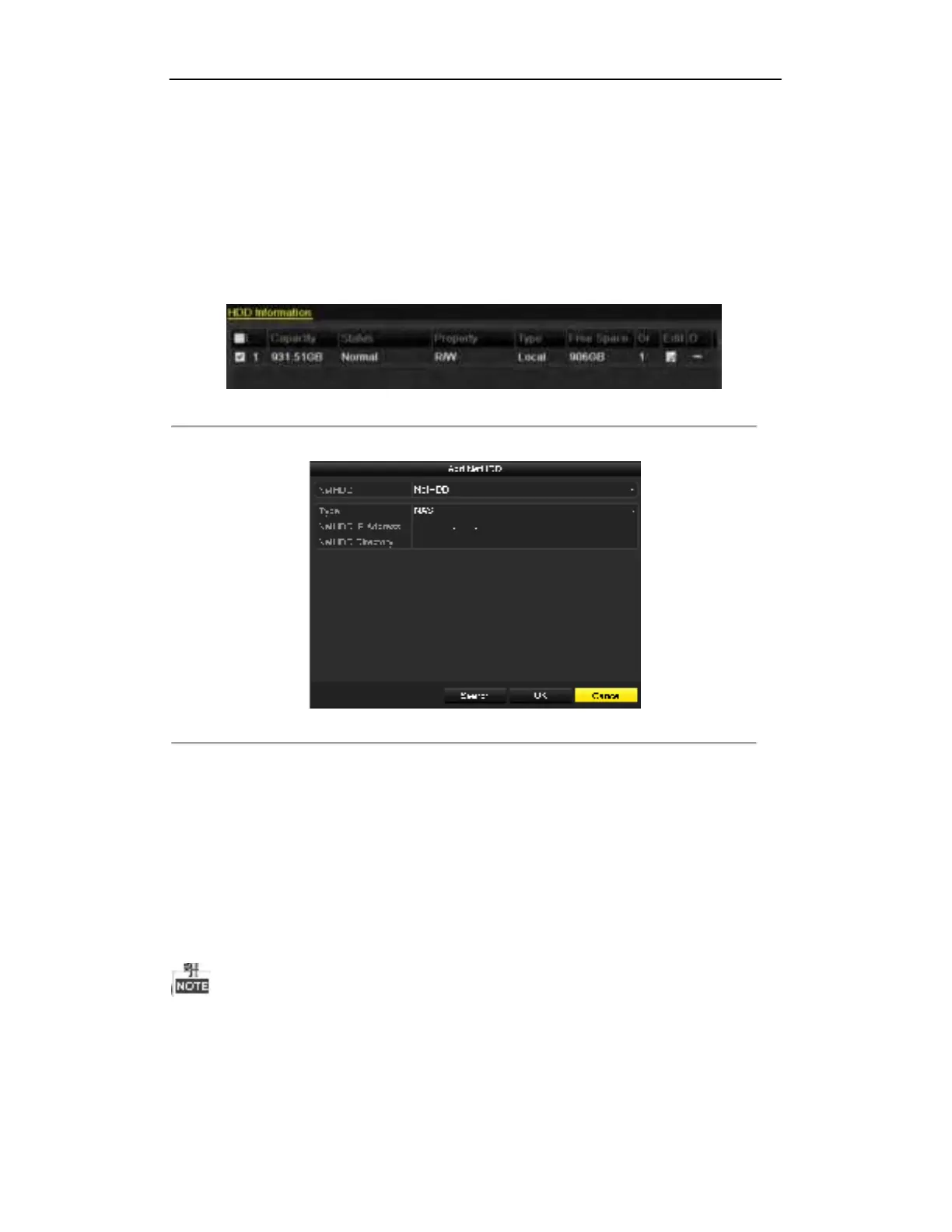

Figure 10. 6 HDD Information Interface
2. Click the Add button to enter the Add NetHDD interface, as shown in Figure 10. 7.
Figure 10. 7 HDD Information Interface
3. Add the allocated NetHDD.
4. Select the type to NAS or IP SAN.
5. Configure the NAS or IP SAN settings.
• Add NAS disk:
1) Enter the NetHDD IP address in the text field.
2) Click Search to search the available NAS disks.
3) Select the NAS disk from the list shown below.
Or you can just manually enter the directory in the text field of NetHDD Directory.
4) Click OK to add the configured NAS disk.
Up to 8 NAS disks can be added.

HIKVISION DS-7100 Specifications

General

Video Compression	H.264
Video Input	4/8/16 channels
Audio Compression	G.711
Resolution	720P
Hard Drive	SATA
Network Interface	RJ45 10M / 100M Ethernet interface
USB Interface	2 x USB 2.0
Operating Temperature	-10 °C ~ +55 °C (14 °F ~ 131 °F)
Operating Humidity	10% ~ 90%
Audio Output	1-ch RCA(Linear, 1kΩ)
