HIKVISION DS-7104HGHI-F1/N User Manual

Digital Video Recorder User Manual
260
 Guest: The Guest user has no permission of Two-way Audio in Remote Configuration and
only has the local/remote playback in the Camera Configuration by default.
User’s MAC Address: The MAC address of the remote PC which logs onto the DVR. If it is
configured and enabled, it only allows the remote user with this MAC address to access the
DVR.
Step 4 Click the OK button to save the settings and go back to the User Management interface.
The added new user will be displayed on the list, as shown in Figure 17-14.

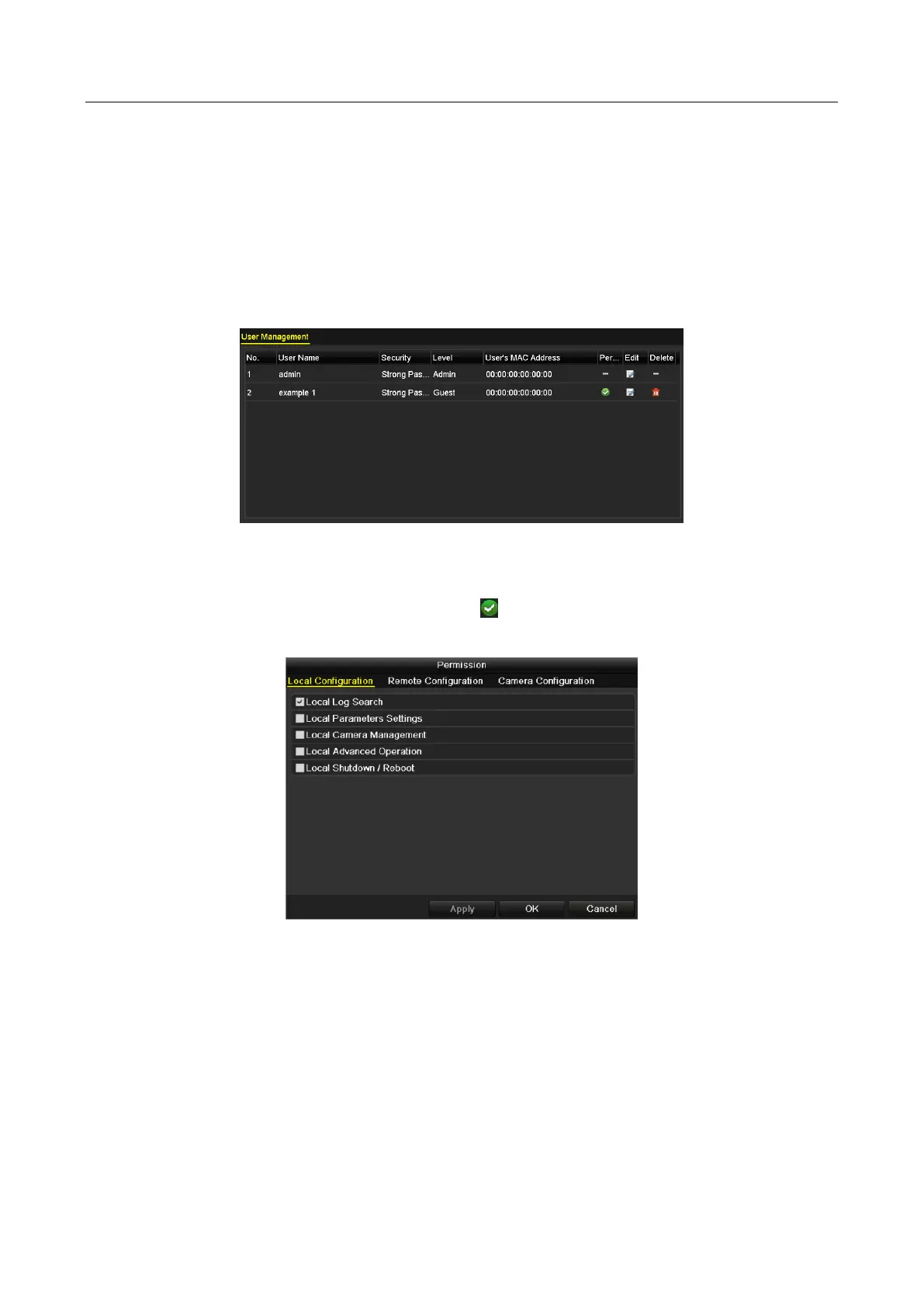

Figure 17-14 Added User Listed in User Management Interface
Step 5 You can assign permissions for the added user.
1) Select the user from the list and then click to enter the Permission Settings interface,
as shown in Figure 17-15.
Figure 17-15 User Permission Settings Interface
2) Set the operating permission of Local Configuration, Remote Configuration and Camera
Configuration for the user.
Local Configuration
 Local Log Search: Searching and viewing logs and system information of device.
 Local Parameters Settings: Configuring parameters, restoring factory default
parameters and importing/exporting configuration files.

HIKVISION DS-7104HGHI-F1/N Specifications

General

Power consumption (typical)	8 W
Voltage	12 V
Product color	White
Channels quantity	4 channels
Audio formats supported	G.711
Video compression formats	H.264, H.264+
BNC input ports	1
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	200 mm
Height	45 mm
Weight	800 g
