HIKVISION DS-7108NI-E1/V/W User Manual

Quick Operation Guide of Network Video Recorder
36
Creating Wireless Network
The device provides you with dialing, wired network and WIFI features, such as a router.
You can access to internet via the device instead of a router.

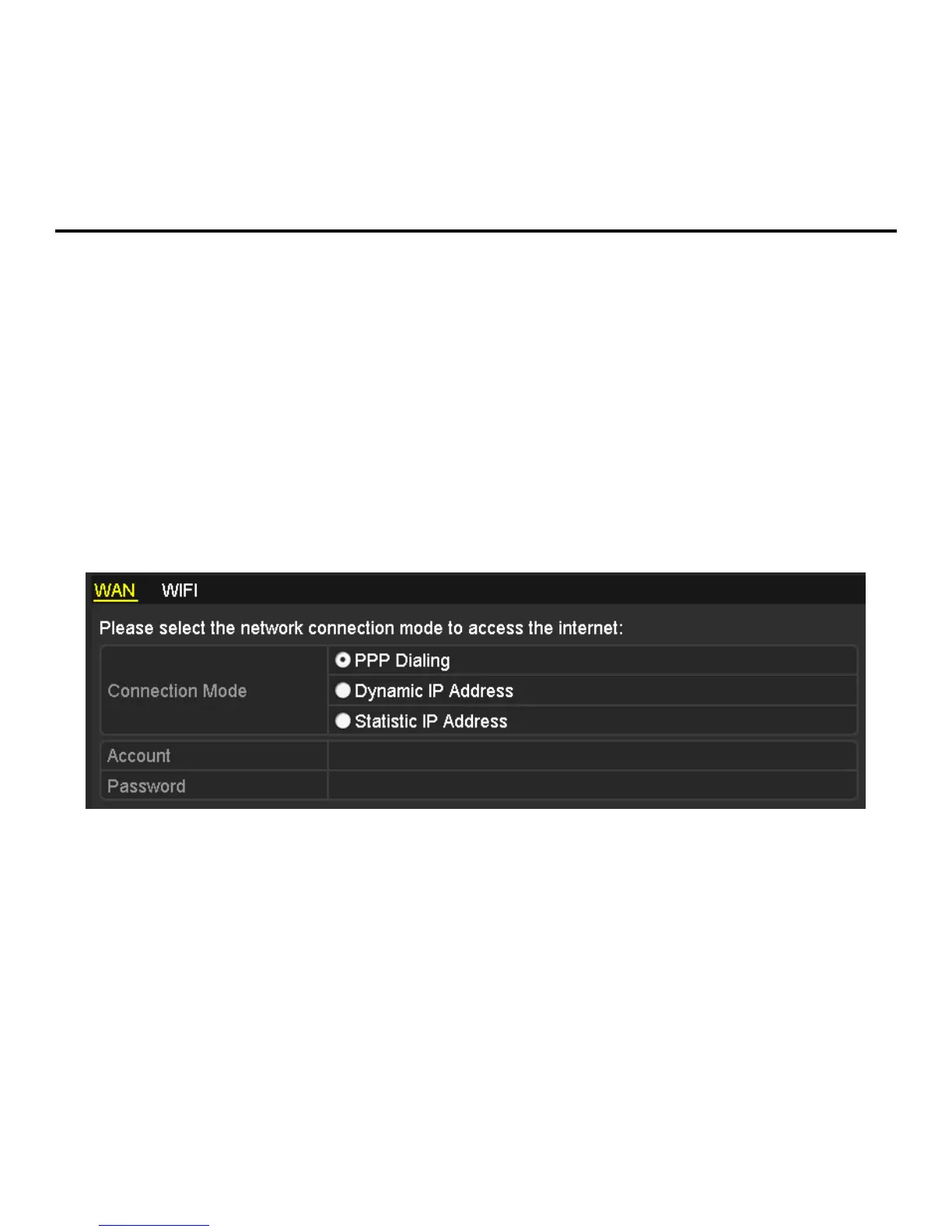

Configuring WAN Settings
Steps:
1. Enter WAN configuration interface.
Menu > Configuration > WIFI
2. Select the Connection Mode as PPP Dialing.
3. Input Account and Password in the text field.
4. Click Apply to dial up.

HIKVISION DS-7108NI-E1/V/W Specifications

General

Maximum resolution	- pixels
Video input channels	8 channels
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	12 W
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, UPnP, SNMP, NTP, SADP, DDNS, SMTP, NFS, iSCSI
HDD capacity	0 GB
HDD interface	-
Maximum storage capacity	- TB
Number of HDDs installed	0

Weight and Dimensions

Width	870 mm
Height	157 mm
Weight	530 g
