HIKVISION DS-7208HGHI-F1 User Manual

Digital Video Recorder User Manual
260
 Guest: The Guest user has no permission of Two-way Audio in Remote Configuration and
only has the local/remote playback in the Camera Configuration by default.
User’s MAC Address: The MAC address of the remote PC which logs onto the DVR. If it is
configured and enabled, it only allows the remote user with this MAC address to access the
DVR.
Step 4 Click the OK button to save the settings and go back to the User Management interface.
The added new user will be displayed on the list, as shown in Figure 17-14.

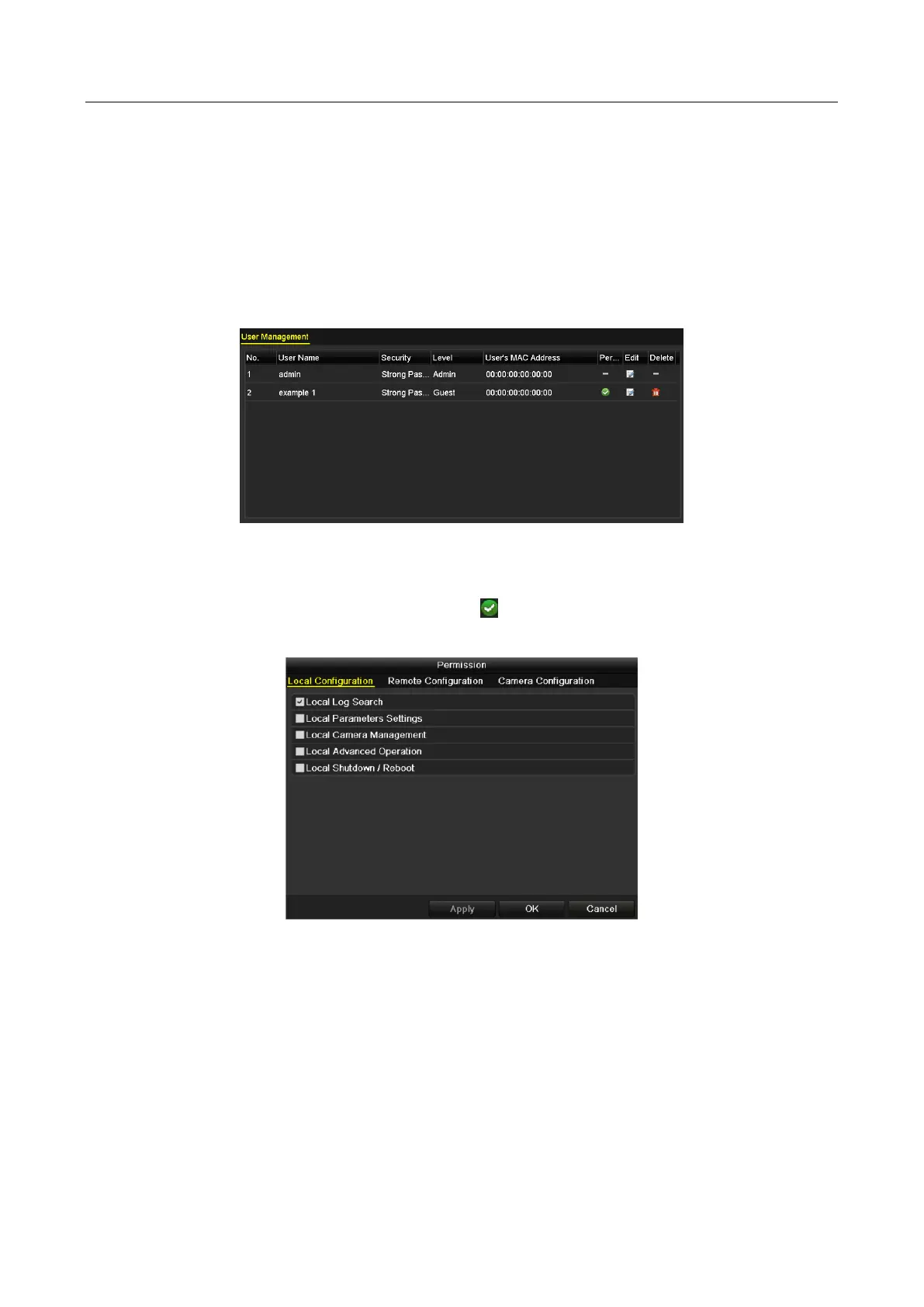

Figure 17-14 Added User Listed in User Management Interface
Step 5 You can assign permissions for the added user.
1) Select the user from the list and then click to enter the Permission Settings interface,
as shown in Figure 17-15.
Figure 17-15 User Permission Settings Interface
2) Set the operating permission of Local Configuration, Remote Configuration and Camera
Configuration for the user.
Local Configuration
 Local Log Search: Searching and viewing logs and system information of device.
 Local Parameters Settings: Configuring parameters, restoring factory default
parameters and importing/exporting configuration files.

HIKVISION DS-7208HGHI-F1 Specifications

General

Product color	Black
Rack capacity	1U
Channels quantity	8 channels
Remote control type	128
Video capturing speed	30 fps
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1080p lite
BNC input ports	8
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	12 W
Storage temperature (T-T)	10 - 90 °C
Operating temperature (T-T)	-10 - 55 °C

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
