HIKVISION DS-7208HTHI-K2 User Manual

Network Video Recorder User Manual
26

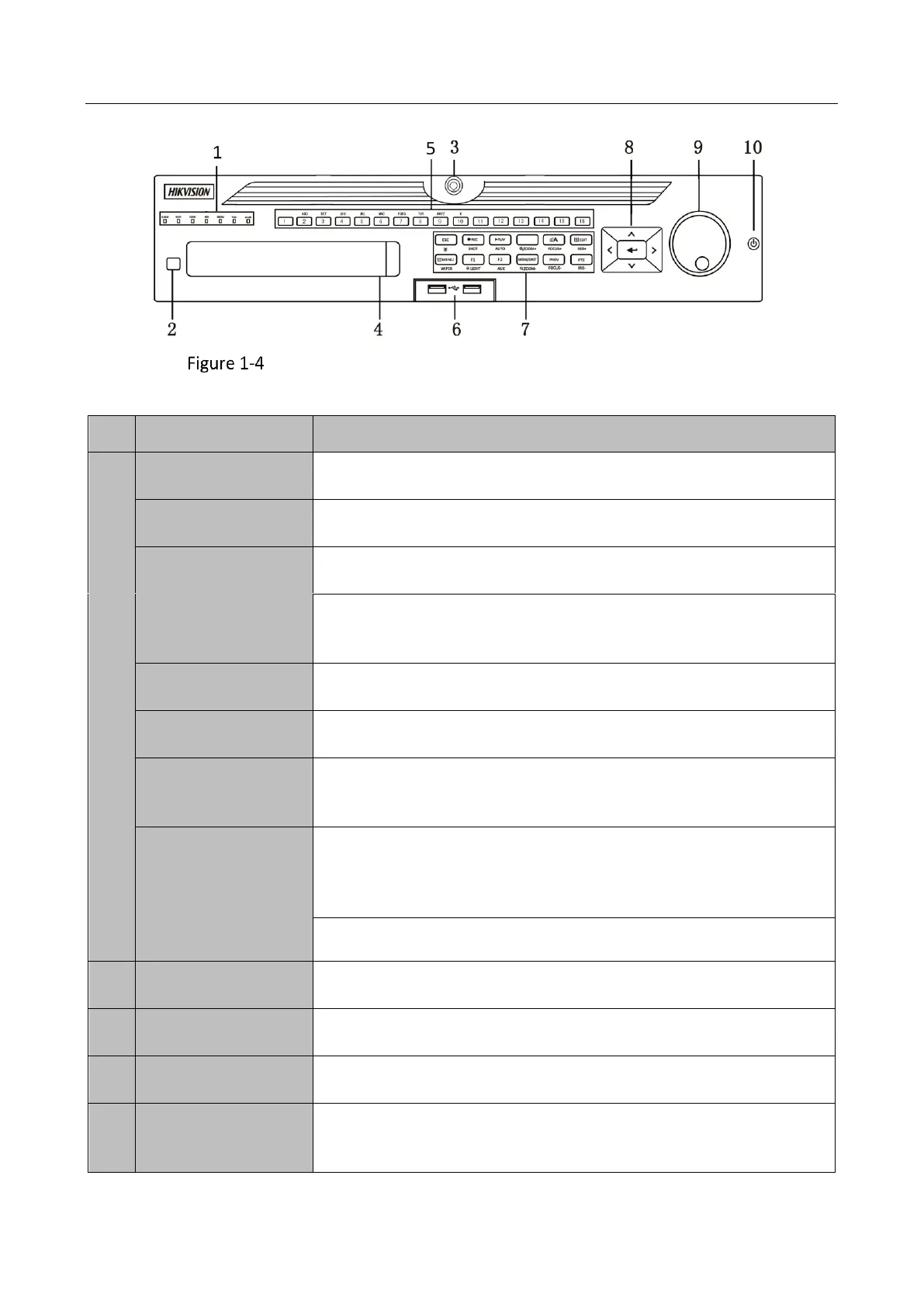

Front Panel of DS-9000HUHI/HTHI-K8 and iDS-9016HUHI-K8/16S
Table 1-3 Front Panel Description
No.
Name
Function Description
1
ALARM
Turns red when a sensor alarm is detected.
READY
Turns blue, indicating that the DVR is functioning properly.
STATUS
Turns blue when device is controlled by an IR remote.
Turns red when controlled by a keyboard and purple when IR
remote and keyboard is used at the same time.
HDD
Flickers in red when data is being read from or written to HDD.
MODEM
Flickers in blue when network connection is functioning properly.
Tx/Rx
Turns blue when the device is in armed status; at this time, an alarm
is enabled when an event is detected.
GUARD
Turns off when the device is unarmed. The arm/disarm status can
be changed by pressing and holding on the ESC button for more
than 3 seconds in live view mode.
Turns red when a sensor alarm is detected.
2
IR Receiver
Receiver for IR remote
3
Front Panel Lock
Lock or unlock the panel by the key.
4
DVD-R/W
Slot for DVD-R/W.
5
Alphanumeric
Buttons
Switches to the corresponding channel in live view or PTZ control
mode.

HIKVISION DS-7208HTHI-K2 Specifications

General

Voltage	12 V
Product color	Black
LED indicators	Yes
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio formats supported	G.711
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.265 Pro+, H.265 Pro, H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Number of HDDs supported	2
Power consumption (max)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Optical drive included	No

Weight and Dimensions

Depth	320 mm
Width	380 mm
Height	48 mm
Weight	2000 g
