HIKVISION DS-7208HTHI-K2 User Manual

Network Video Recorder User Manual
91

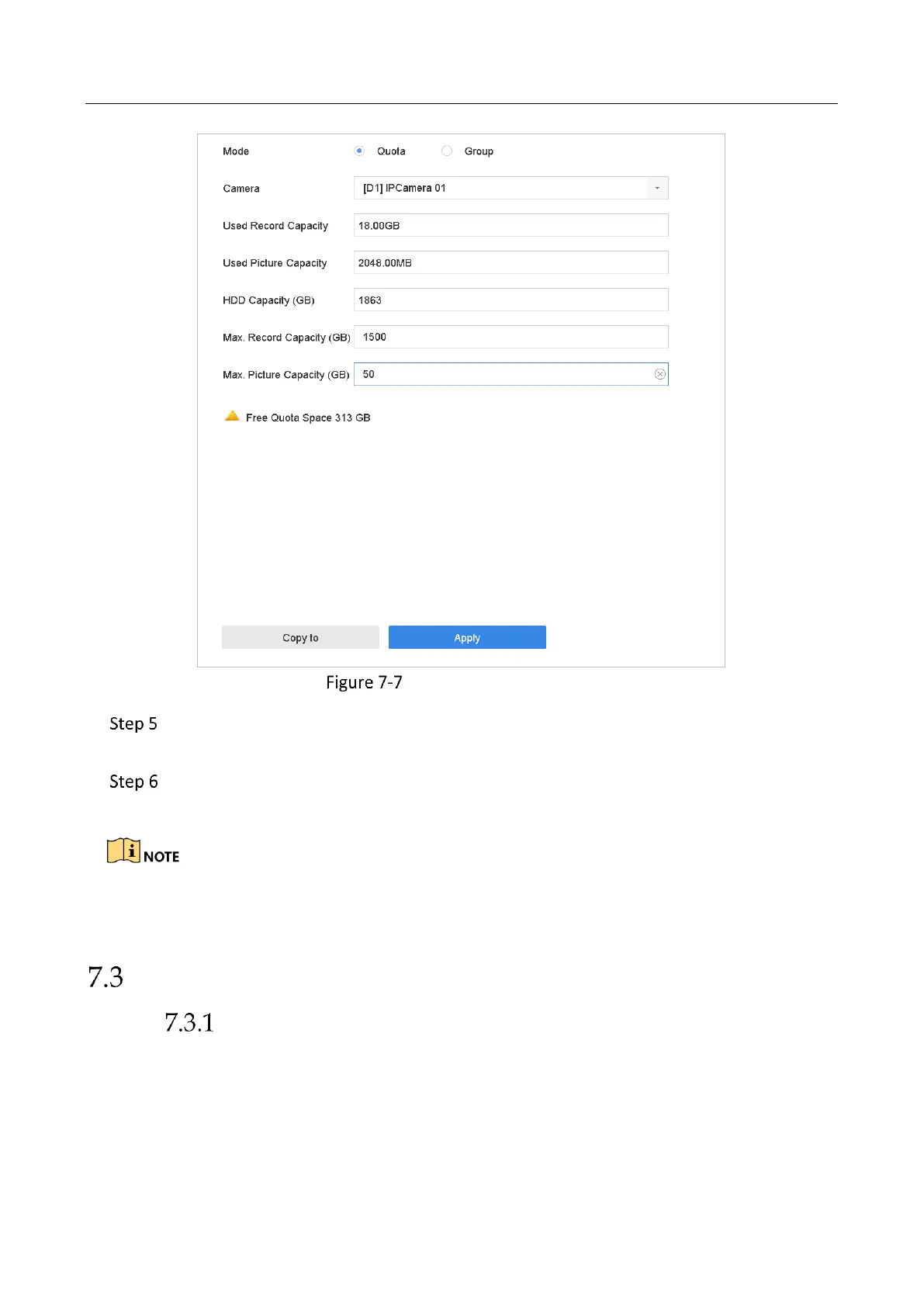

Storage Mode-HDD Quota
(Optional) You can click Copy to if you want to copy the quota settings of the current
camera to other cameras.
Click Apply to apply the settings. Reboot the device to activate the new storage mode
settings.
When the quota capacity is set to 0, all cameras will use the total capacity of HDD for record and
picture capture.
Recording Parameters
Main Stream
The Main Stream refers to the primary stream that affects data recorded to the hard disk drive and
will directly determine your recording quality and image size.
Comparing with the sub-stream, the main stream can provide a higher quality video with higher
resolution and frame rate.

HIKVISION DS-7208HTHI-K2 Specifications

General

Voltage	12 V
Product color	Black
LED indicators	Yes
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio formats supported	G.711
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.265 Pro+, H.265 Pro, H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Number of HDDs supported	2
Power consumption (max)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Optical drive included	No

Weight and Dimensions

Depth	320 mm
Width	380 mm
Height	48 mm
Weight	2000 g
