HIKVISION DS-7208HTHI-K2 User Manual

Network Video Recorder User Manual
43
1
2 34
5
6
7
8
9
10
11
12
13
14
15
16

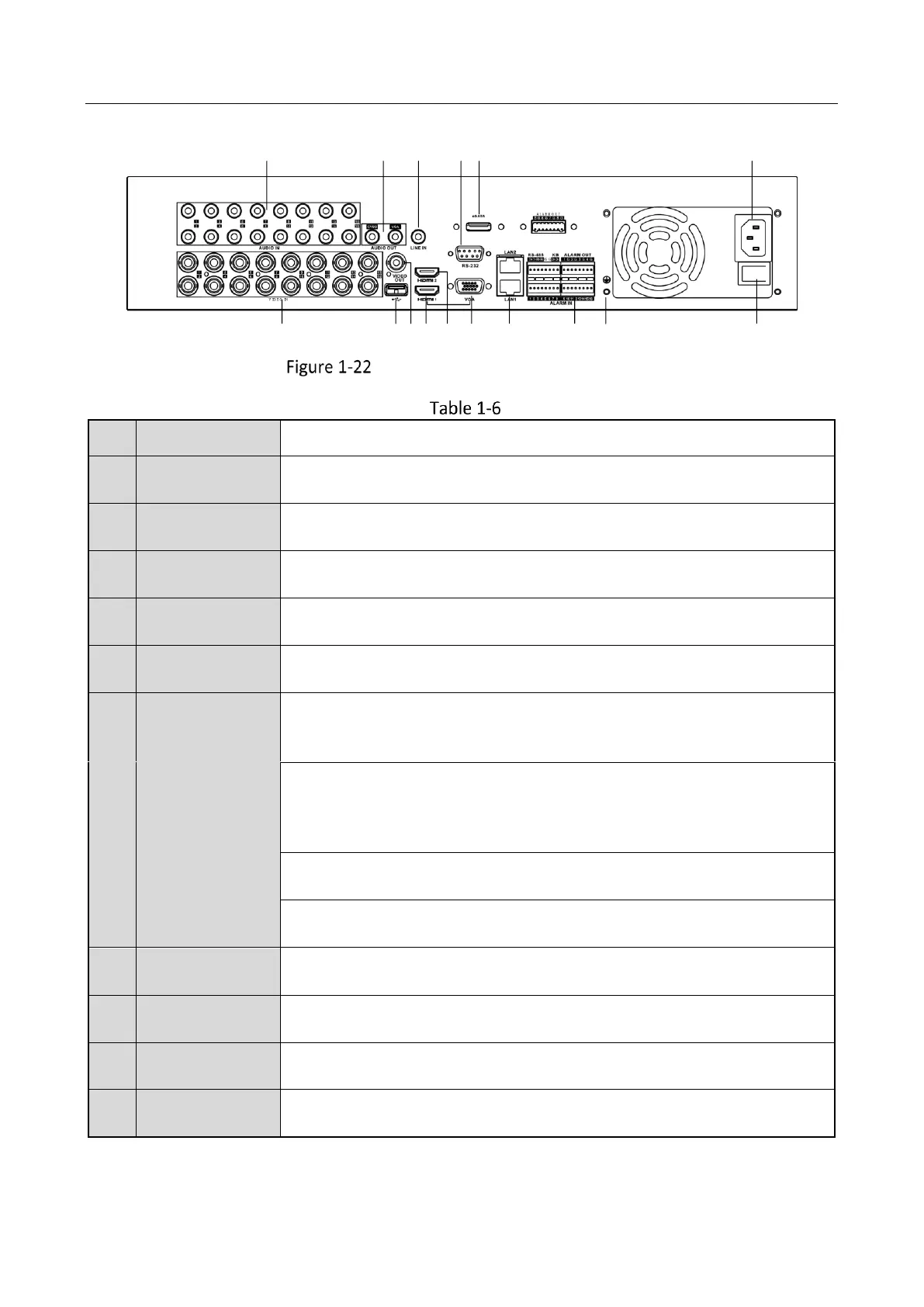

Rear Panel of iDS-9016HUHI-K8/16S
Rear Panel Description
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video input.
2
AUDIO IN
RCA connector.
3
LINE IN
BNC connector for audio input.
4
AUDIO OUT
RCA connector.
5
VIDEO OUT
BNC connector for video output.
6
RS-485 and
Alarm Interface
Connector for RS-485 devices. T+ and T- pins connect to R+ and R- pins
of PTZ receiver respectively.
D+, D- pin connects to Ta, Tb pin of controller. For cascading devices, the
first DVR’s D+, D- pin should be connected with the D+, D- pin of the
next DVR.
Connector for alarm input.
Connector for alarm output.
7
RS-232 Interface
Connector for RS-232 devices.
8
VGA Interface
VGA video output connector. Display local video output and menu.
9
eSATA
Connects external SATA HDD, CD/DVD-RW.
10
HDMI1 Interface
HDMI1 video output connector. Display local video output and menu.

HIKVISION DS-7208HTHI-K2 Specifications

General

Voltage	12 V
Product color	Black
LED indicators	Yes
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio formats supported	G.711
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.265 Pro+, H.265 Pro, H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Number of HDDs supported	2
Power consumption (max)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Optical drive included	No

Weight and Dimensions

Depth	320 mm
Width	380 mm
Height	48 mm
Weight	2000 g
