HIKVISION DS-7208HTHI-K2 User Manual

Network Video Recorder User Manual
38

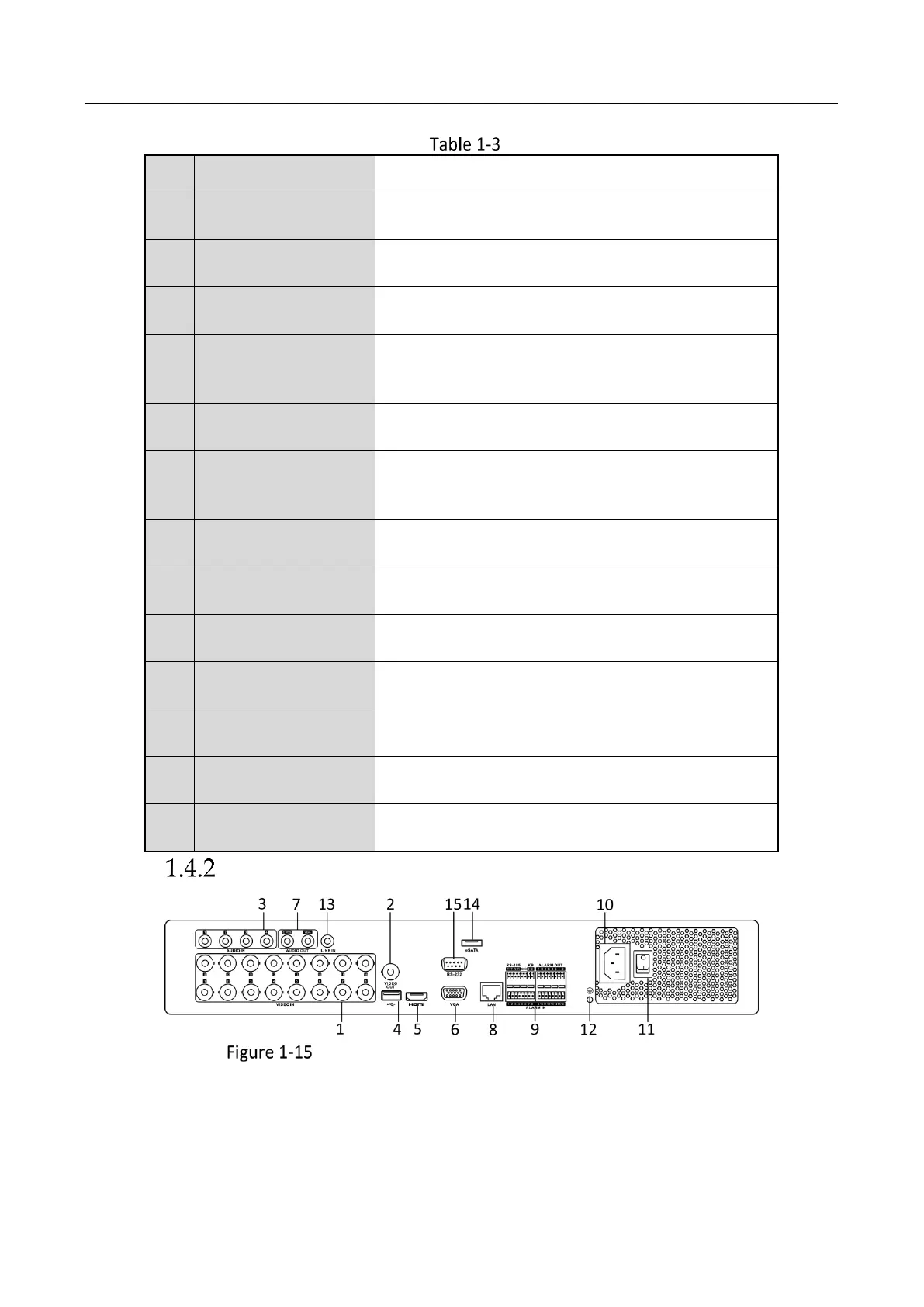

Rear Panel Description
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video input.
2
AUDIO IN
RCA connector
3
AUDIO OUT
RCA connector.
4
VGA
DB15 connector for VGA output. Display local video
output and menu.
5
HDMI
HDMI video output connector.
6
USB Interface
Universal Serial Bus (USB) port for additional
devices.
7
Network Interface
Connector for network
8
RS-485 Interface
Connector for RS-485 devices.
9
Power Supply
48 VDC or 12 VDC.
10
Power Switch
Switch for turning on/off the device.
11
GND
Ground
12
VIDEO OUT
BNC connector for video output.
13
Alarm In/Out
Connector for alarm input and output.
DS-7300HQHI-K
Rear Panel of DS-7300HQHI-K (with 16 Video Inputs)

HIKVISION DS-7208HTHI-K2 Specifications

General

Voltage	12 V
Product color	Black
LED indicators	Yes
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio formats supported	G.711
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.265 Pro+, H.265 Pro, H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Audio input	4
BNC input ports	8
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Number of HDDs supported	2
Power consumption (max)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Optical drive included	No

Weight and Dimensions

Depth	320 mm
Width	380 mm
Height	48 mm
Weight	2000 g
