Digital Video Recorder User Manual
139

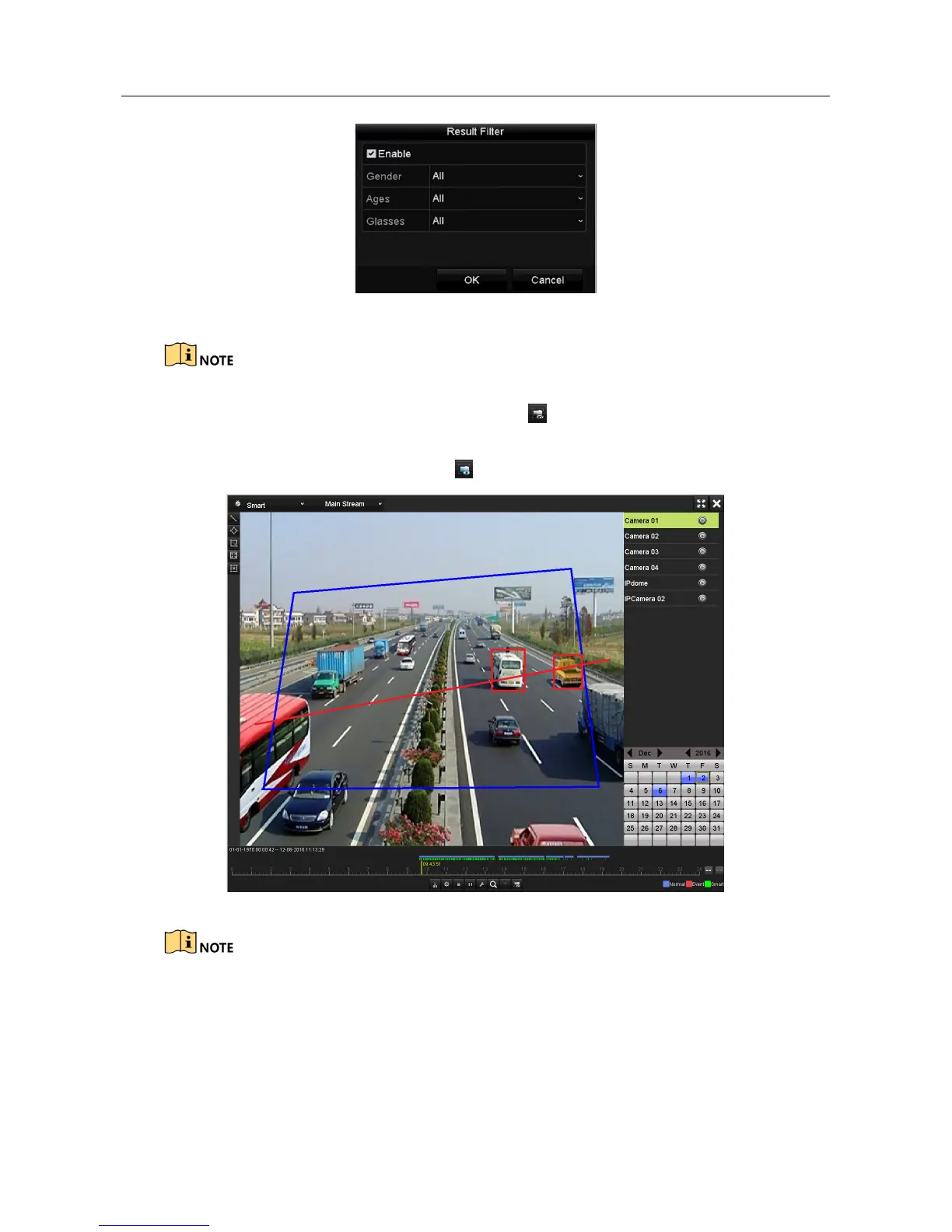

Figure 6-16 Set Result Filter
The Result Filter function is supported by the IP camera only.
Step 9 (Optional) For the cameras supporting VCA, click to show the VCA information.
Then the configured line or quadrilateral in VCA configuration and target frame(s) will be
shown on the playback interface. Click to hide the VCA information.
Figure 6-17 Show VCA Information
In smart playback, both the analog and IP cameras support VCA information overlay.
If the connected camera does not support VCA, the icon is grey and unavailable.
For the analog cameras, the VCA information includes line crossing detection and intrusion
detection. For the IP cameras, the VCA information includes all the VCA detections of smart
IP camera.

Table of Contents

Other manuals for HIKVISION DS-7316HQHI-F4/N

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7316HQHI-F4/N and is the answer not in the manual?

HIKVISION DS-7316HQHI-F4/N Specifications

General IconGeneral
Product colorBlack
Audio output channels1.0 channels
Video compression formatsH.264
BNC input ports1
Video input channels16 channels
USB 2.0 ports quantity2
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Supported network protocolsTCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
Power consumption (typical)45 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Dimensions (WxDxH)445 x 390 x 70 mm
