HIKVISION DS-7316HQHI-F4/N User Manual

Digital Video Recorder User Manual
244
Contrast and Saturation for the IP cameras. You can also click Restore to set the
parameters to the default settings.
Step 7 You can click Copy to copy the image settings of the current camera to other cameras.
Step 8 Click Apply to save the settings.
15.3.2 Configuring Camera Parameters Settings
This chapter is applicable to -F series DVR.
Step 1 Enter the Image Settings interface.
Menu > Camera > Image
Step 2 Select the Camera Parameters Settings tab.

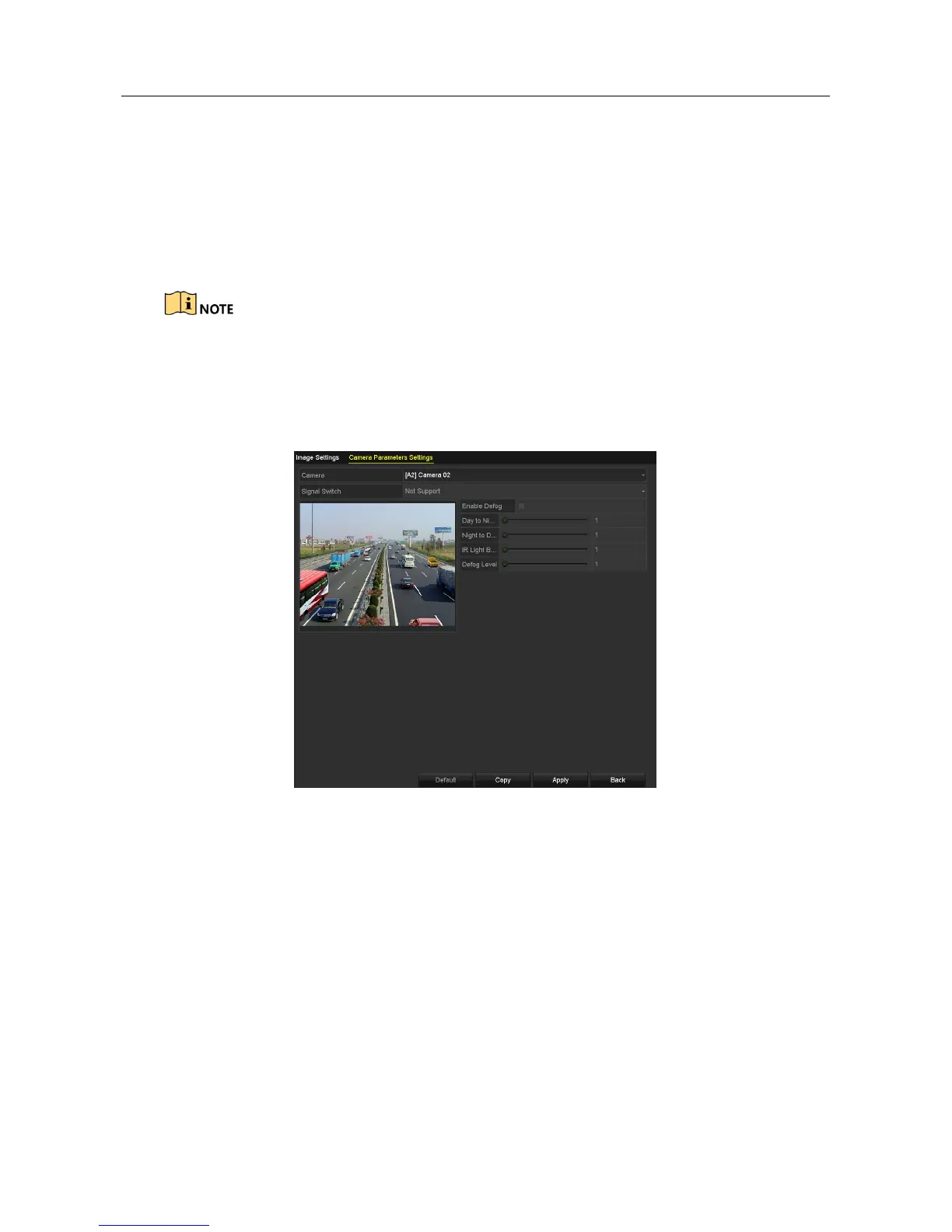

Figure 15-7 Camera Parameters Settings
Step 3 Select the Camera from the dropdown list.
Step 4 (Optional) Switch the 4 MP or 5 MP signal from the Signal Switch dropdown list. 4 MP 25/30
fps and 5 MP 20 fps are selectable. The 4 MP 25 fps and 4 MP 30 fps signals are
self-adaptive for the camera.
Step 5 (Optional) Check the checkbox of Enable Defog to enable the defog function of the selected
camera. And set the Defog Level from 1 to 4.
Step 6 (Optional) Adjust the other camera parameters including Day to Night Sensitivity, Night to
Day Sensitivity and IR Light Brightness for the analog cameras. You can also click Default to
set the parameters to the default settings.

HIKVISION DS-7316HQHI-F4/N Specifications

General

Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264
BNC input ports	1
Video input channels	16 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
