HIKVISION DS-7316HQHI-F4/N User Manual

Digital Video Recorder User Manual
51
No. Item Description
14 eSATA Connects external SATA HDD, CD/DVD-RW.
15 RS-232 Interface Connector for RS-232 devices.

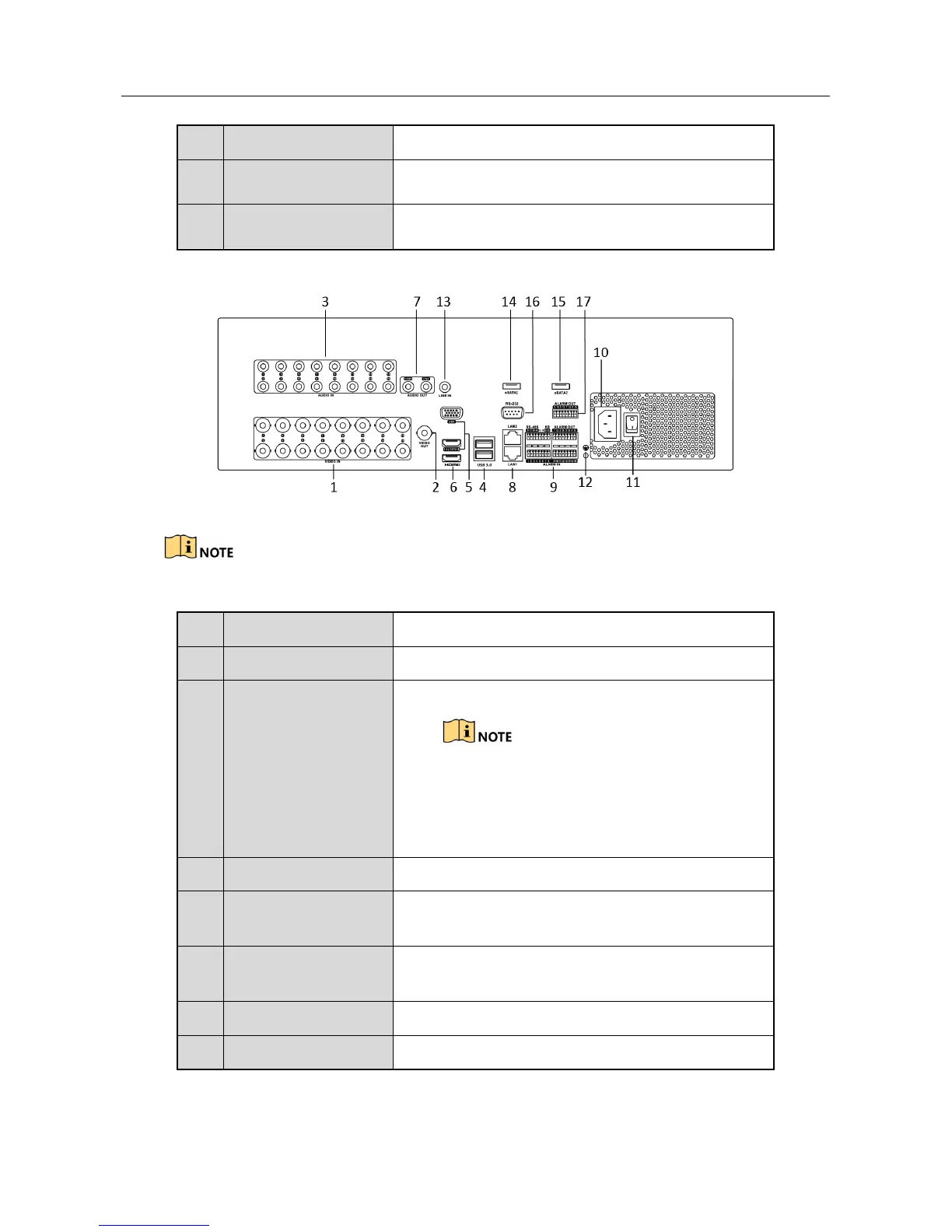

Rear Panel 12:
Figure 1-22 Rear Panel of DS-9000HUHI-F16/N
The rear panel of DS-9008HUHI-F16/N provides 8 video input interfaces.
Table 1-16 Description of Rear Panel
No. Item Description
1 VIDEO IN BNC interface for TVI and analog video input.
2
VIDEO OUT BNC connector for video output.
CVBS output is not provided by
DS-7100/7200HGHI-E1, DS-7200HGHI-E2,
DS-7100/7200HGHI-F1, DS-7200HGHI-F2,
DS-7100HQHI-F1/N, and DS-7100HGHI-F1/N series
DVR.
3 AUDIO IN BNC connector
4
USB Port Universal Serial Bus (USB) port for additional
devices.
5
HDMI1/VGA Simultaneous HDMI1/VGA output. Display local
video output and menu.
6 HDMI2 HDMI2 video output connector.
7 AUDIO OUT BNC connector.

HIKVISION DS-7316HQHI-F4/N Specifications

General

Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264
BNC input ports	1
Video input channels	16 channels
USB 2.0 ports quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
