Network Video Recorder User Manual
200

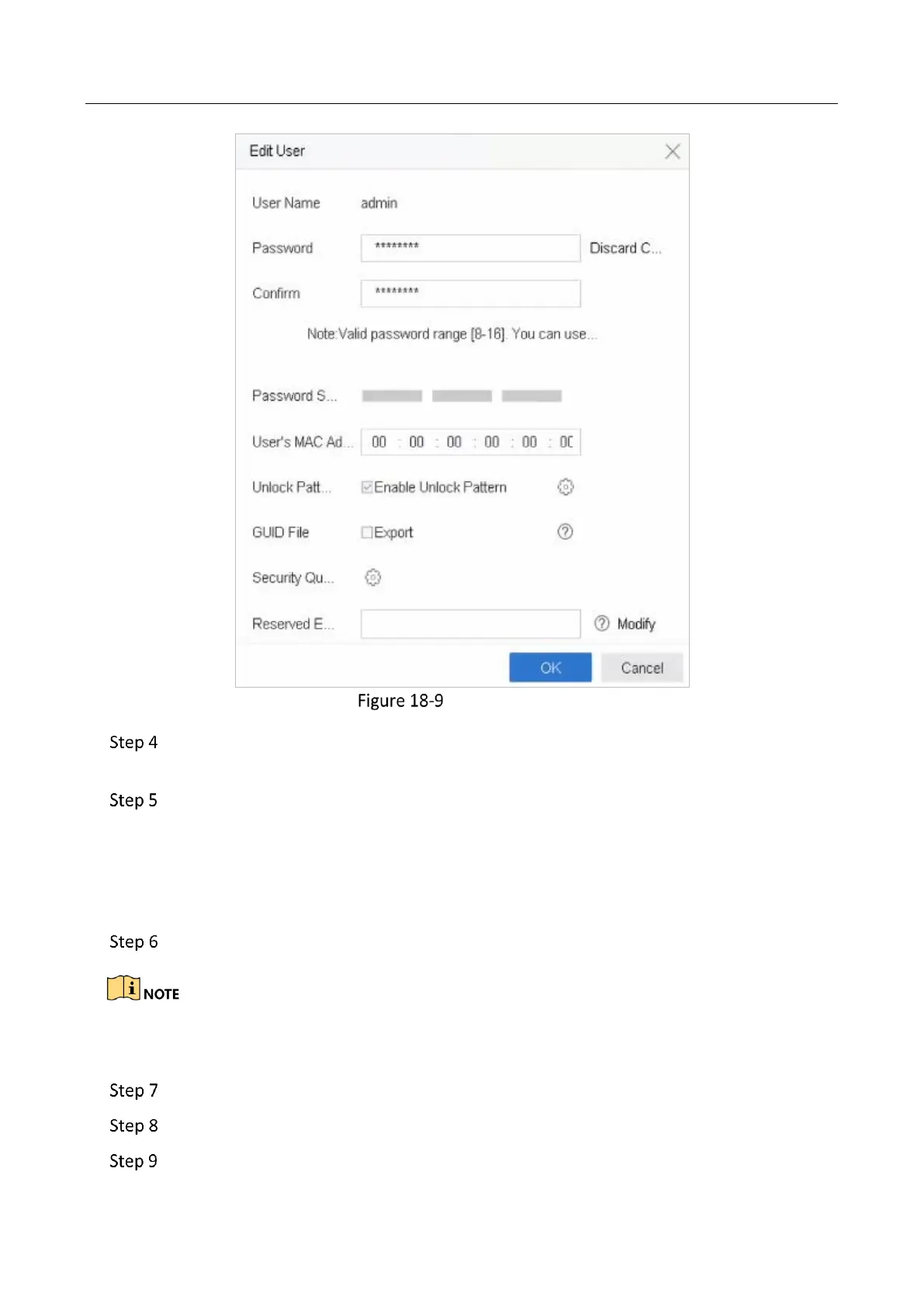

Edit Admin User
Edit the admin user information as demand, including the new admin password
(strong password is required), and MAC address.
Edit the unlock pattern for the admin user account.
1) Check Enable Unlock Pattern to enable the use of unlock pattern when logging in to the
device.
2) Use the mouse to draw a pattern among the 9 dots on the screen, and release the
mouse when the pattern is done.
Check Export of Export GUID to export the GUID file for the admin user account.
When the admin password is changed, export the new GUID to the connected USB flash drive
for the future password resetting.
Configure security question for password resetting.
Configure reserved email for password resetting.
Click OK to save the settings.

HIKVISION DS-7316HUHI-K4 Specifications

General

Bit rate	10000 Kbit/s
Internal	No
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio input channels	4.0 channels
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.265, H.265+
Number of simultaneously playbacked channels	16 channels
Audio input	RCA
RS-232 ports	1
BNC input ports	16
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
Power consumption (typical)	65 W
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, SNMP
HDD interface	eSATA
Maximum HDD capacity	10000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	5000 g
