HIKVISION DS-7316HUHI-K4 User Manual

Network Video Recorder User Manual
52

Connect at least 4 dots to draw the pattern.

Each dot can be connected for once only.
Draw the same pattern again to confirm it. When the two patterns match, the pattern
is configured successfully.

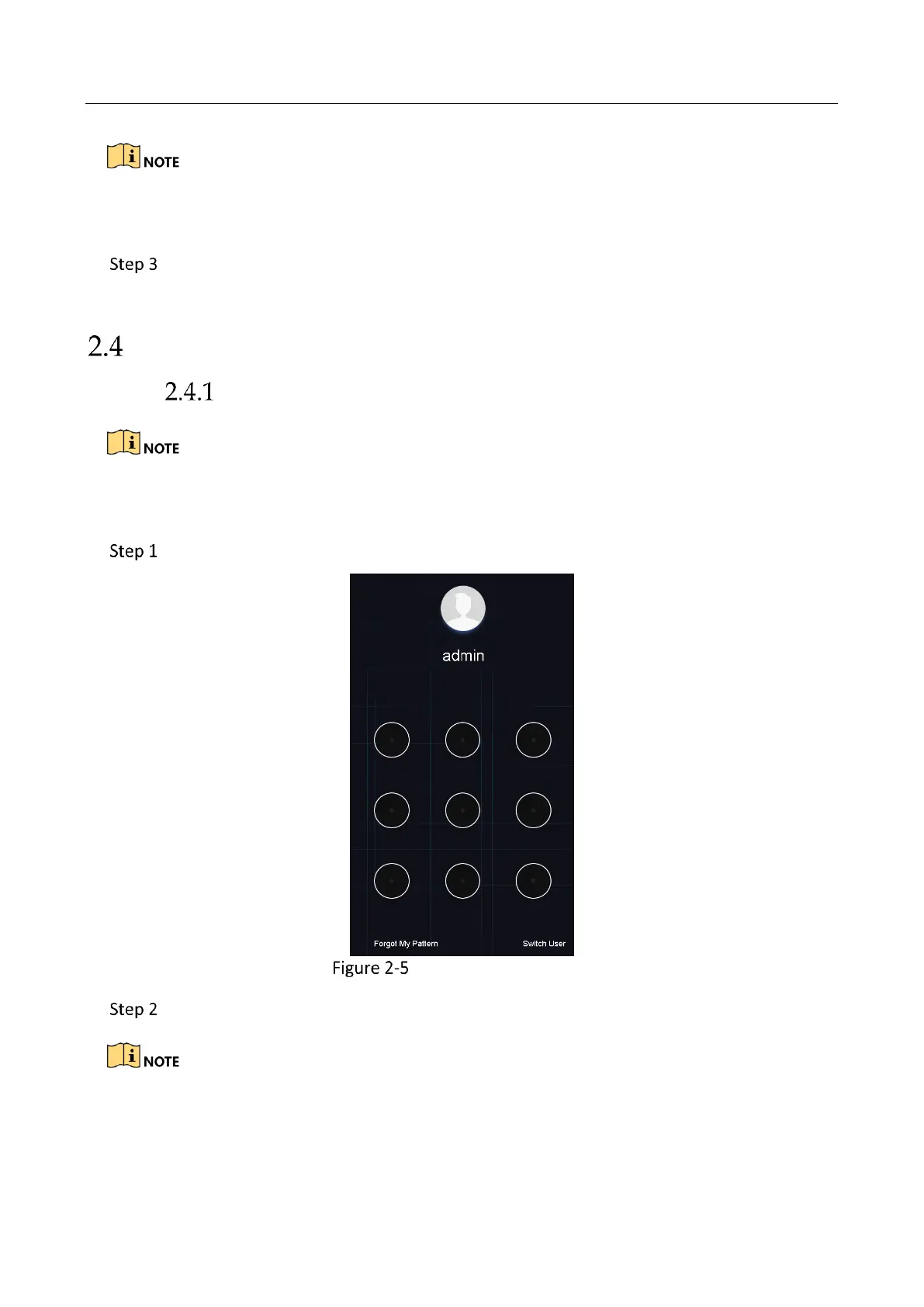

Login to the Device
Log in via Unlock Pattern

Only the admin user has the permission to unlock the device.

Please configure the pattern first before unlocking. Please refer to 2.2 Activate the Device.
Right click the mouse on the screen and select the menu to enter the interface.
Draw the Unlock Pattern
Draw the pre-defined pattern to unlock to enter the menu operation.

HIKVISION DS-7316HUHI-K4 Specifications

General

Bit rate	10000 Kbit/s
Internal	No
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio input channels	4.0 channels
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.265, H.265+
Number of simultaneously playbacked channels	16 channels
Audio input	RCA
RS-232 ports	1
BNC input ports	16
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
Power consumption (typical)	65 W
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, SNMP
HDD interface	eSATA
Maximum HDD capacity	10000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	5000 g
