HIKVISION DS-7316HUHI-K4 User Manual

Network Video Recorder User Manual
40
No.
Item
Description
15
RS-232 Interface
Connector for RS-232 devices.
DS-7300HUHI/HTHI-K4, iDS-7316HUHI-K4/16S and
DS-9000HUHI-K8

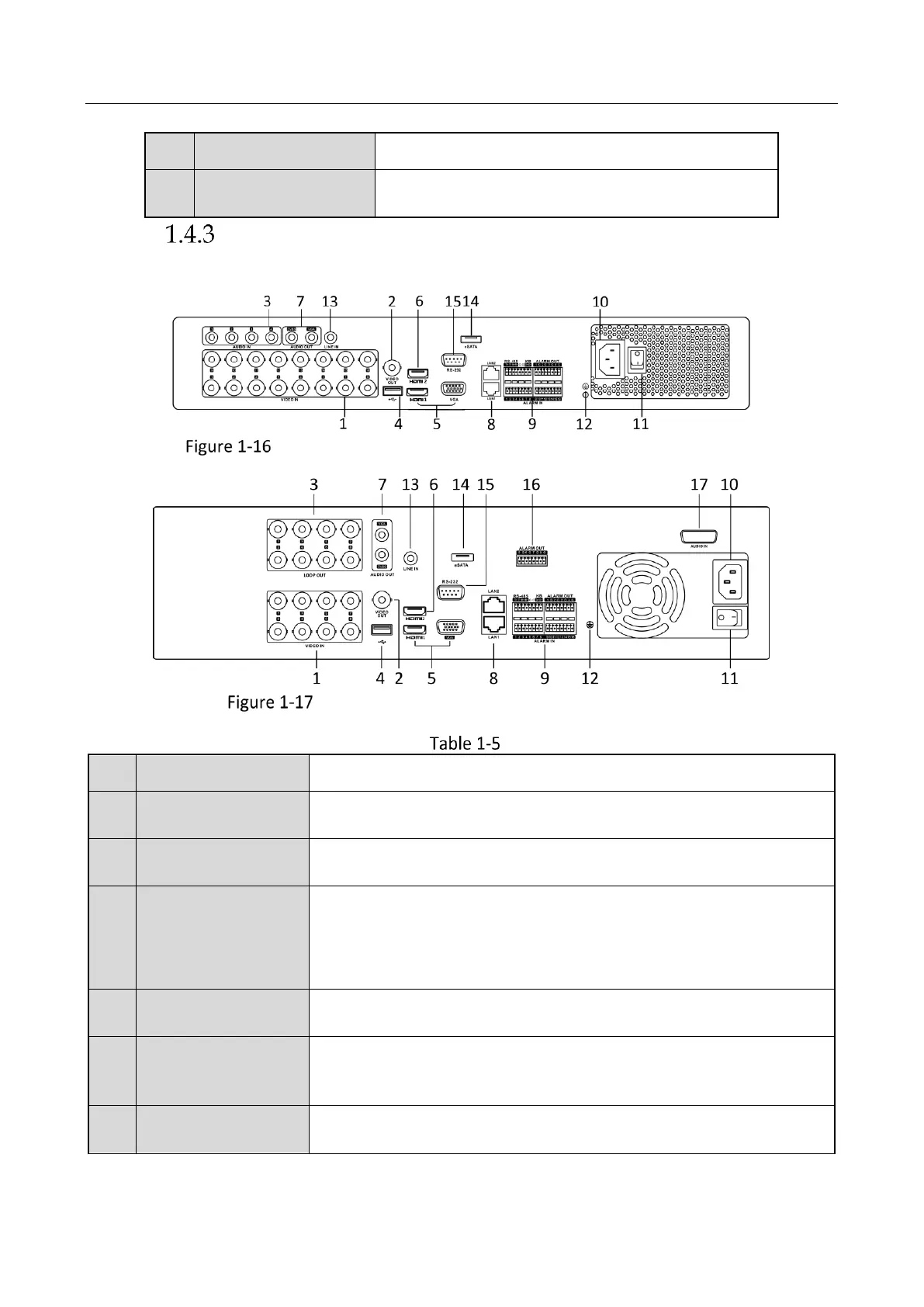

Rear Panel of DS-7300HUHI/HTHI-K4 and iDS-7316HUHI-K4/16S
Rear Panel of DS-9000HUHI-K8 (with 8 Video Inputs)
Rear Panel Description
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video input.
2
VIDEO OUT
BNC connector for video output.
3
AUDIO IN/
LOOP OUT (for DS-
9000HUHI-K8)
RCA connector
4
USB Port
Universal Serial Bus (USB) port for additional devices.
5
HDMI1/VGA
Simultaneous HDMI1/VGA output. Display local video output and
menu.
6
HDMI2
HDMI2 video output connector.

HIKVISION DS-7316HUHI-K4 Specifications

General

Bit rate	10000 Kbit/s
Internal	No
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio input channels	4.0 channels
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.265, H.265+
Number of simultaneously playbacked channels	16 channels
Audio input	RCA
RS-232 ports	1
BNC input ports	16
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
Power consumption (typical)	65 W
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, SNMP
HDD interface	eSATA
Maximum HDD capacity	10000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	5000 g
