Network Video Recorder User Manual
30

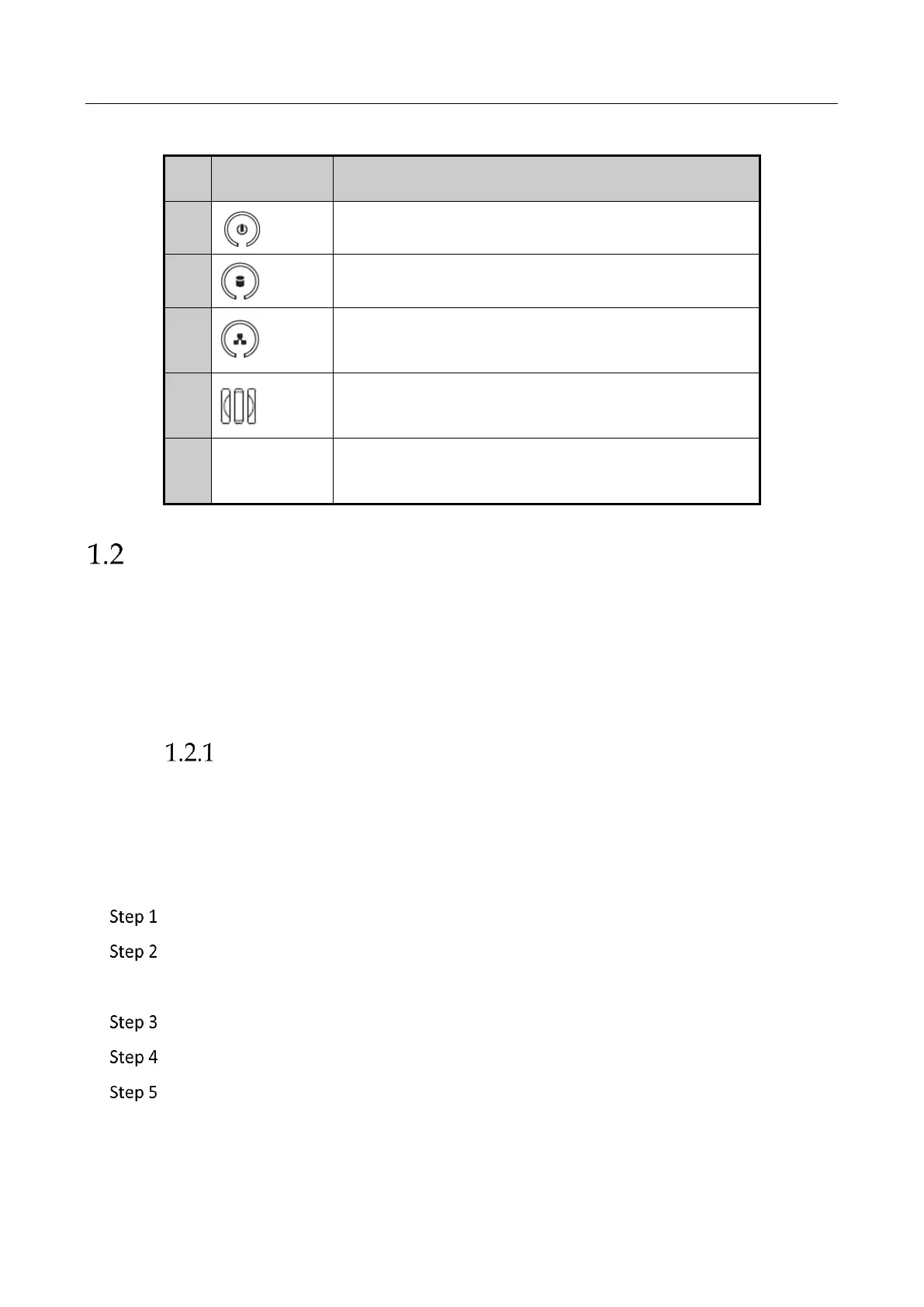

Table 1-4 Front Panel Description
No.
Icon
Description
1
Turns white when DVR is powered up.
2
Turns red when data is being read from or written to
HDD.
3
Flashes white when the network is well-connected.
4
Receiver for IR remote control.
5
USB Interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
IR Remote Control Operations
The device may also be controlled with the included IR remote control, shown in Figure 1-6.
Batteries (2×AAA) must be installed before operation.
The IR remote is set at the factory to control the device (using default Device ID# 255) without any
additional steps. Device ID# 255 is the default universal device identification number shared by the
devices. You may also pair an IR Remote to a specific device by changing the Device ID#, as follows:
Pairing (Enabling) the IR Remote to a Specific Device
(optional)
You can pair an IR Remote to a specific device by creating a user-defined Device ID#. This feature is
useful when using multiple IR Remotes and devices.
On the device:
Go to System > General.
Type a number (255 digits maximum) into Device No.
On the IR Remote:
Press DEV.
Use the Number buttons to enter the Device ID# that was entered into the device.
Press Enter to accept the new Device ID#.
