HIKVISION DS-7604NI-SE/P User Manual

User Manual of Network Video Recorder
99

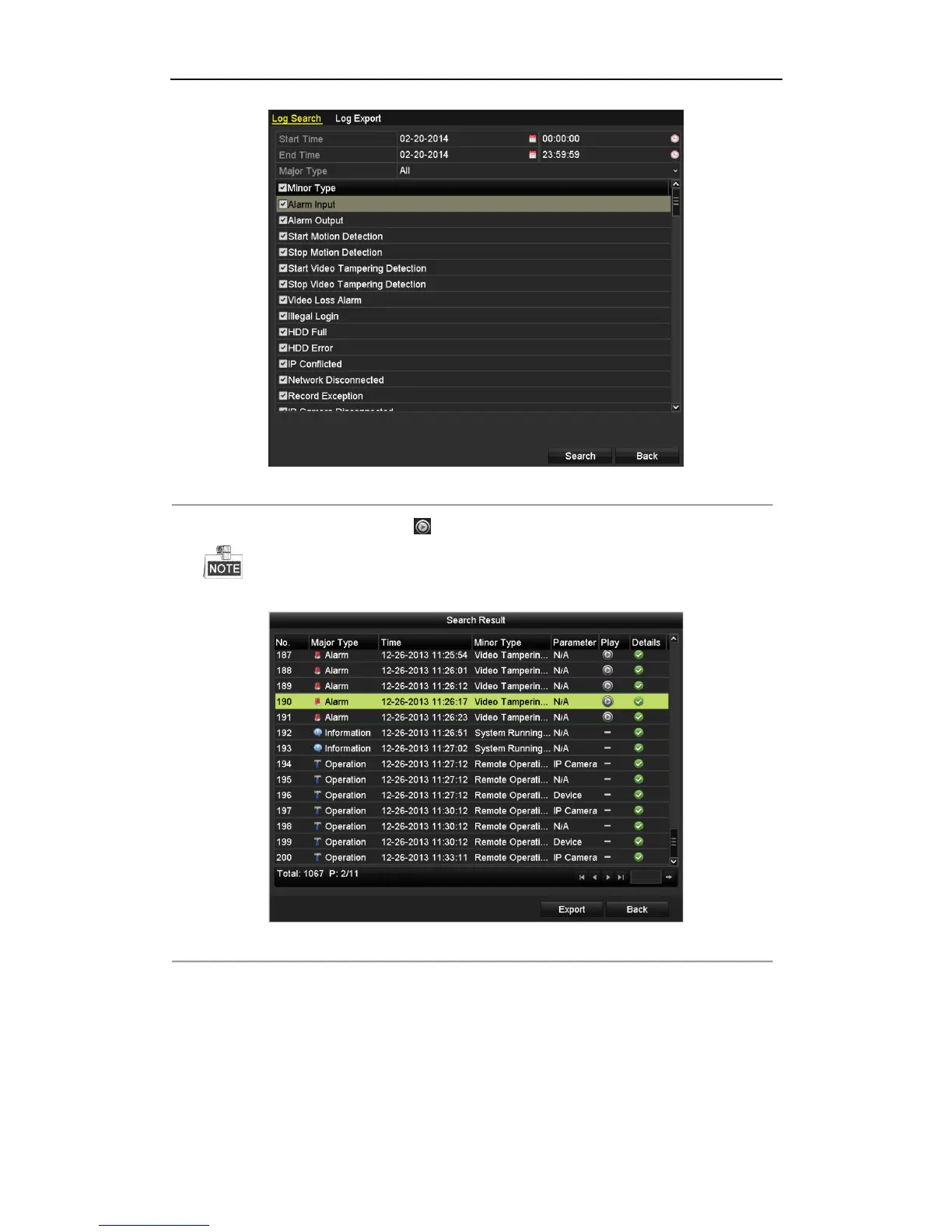

System Log Search Interface
3. Choose a log with record file and click button to enter Playback interface.
If there is no record file at the time point of the log, the message box “No result found” will pop up.
Result of System Log Search
4. Playback interface.
The toolbar in the bottom part of Playback interface can be used to control playing process.

HIKVISION DS-7604NI-SE/P Specifications

General

Product color	Black
Channels quantity	4 channels
Playback resolutions supported	5MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio input	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	5
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
HDD capacity	1000 GB
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	445 x 290 x 45 mm
