HIKVISION DS-7604NI-SE/P User Manual

User Manual of Network Video Recorder
89
The indicates the start/end time of the record.

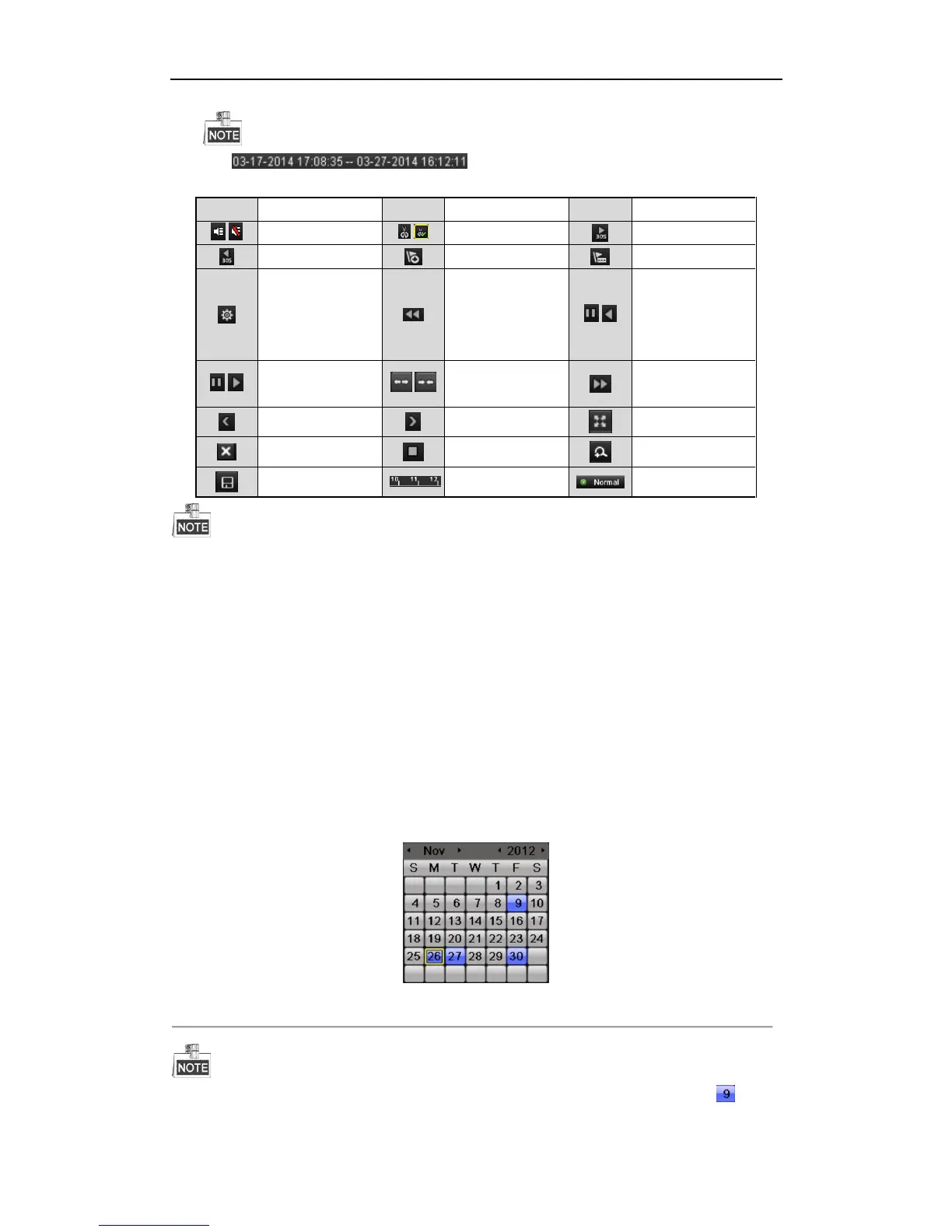

Table 6. 1 Detailed Explanation of Playback Toolbar
Button
Operation
Button
Operation
Button
Operation
/
Audio on/ Mute
/
Start/Stop clipping
30s forward
30s reverse
Add default tag
Add customized tag
Tag management
Speed down
/
Pause reverse play/
Reverse play/
Single-frame
reverse play
/
Pause play/ Play/
Single-frame play
/
Scaling up/down the
time line
Speed up
Previous day
Next day
Full Screen
Exit
Stop
Digital Zoom
Save the clips
Process bar
Video type
Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to locate
special frames.
6.1.2 Playing Back by Time
Purpose:
Play back video files recorded in specified time duration. Multi-channel simultaneous playback and channel switch
are supported.
Steps:
1. Enter playback interface.
Menu>Playback
2. Check the checkbox of channel(s) in the channel list and then double-click to select a date on the calendar.
Figure 6. 5 Playback Calendar
If there are record files for that camera in that day, in the calendar, the icon for that day is displayed as .

HIKVISION DS-7604NI-SE/P Specifications

General

Product color	Black
Channels quantity	4 channels
Playback resolutions supported	5MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio input	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	5
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
HDD capacity	1000 GB
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	445 x 290 x 45 mm
