HIKVISION DS-7604NI-SE/P User Manual

User Manual of Network Video Recorder
79
5.7 Configuring Holiday Recording
Purpose:
Follow the steps to configure the record schedule on holiday for that year. You may want to have different plan for
recording on holiday.
Steps:
1. Enter the Record setting interface.
Menu > Record > Holiday

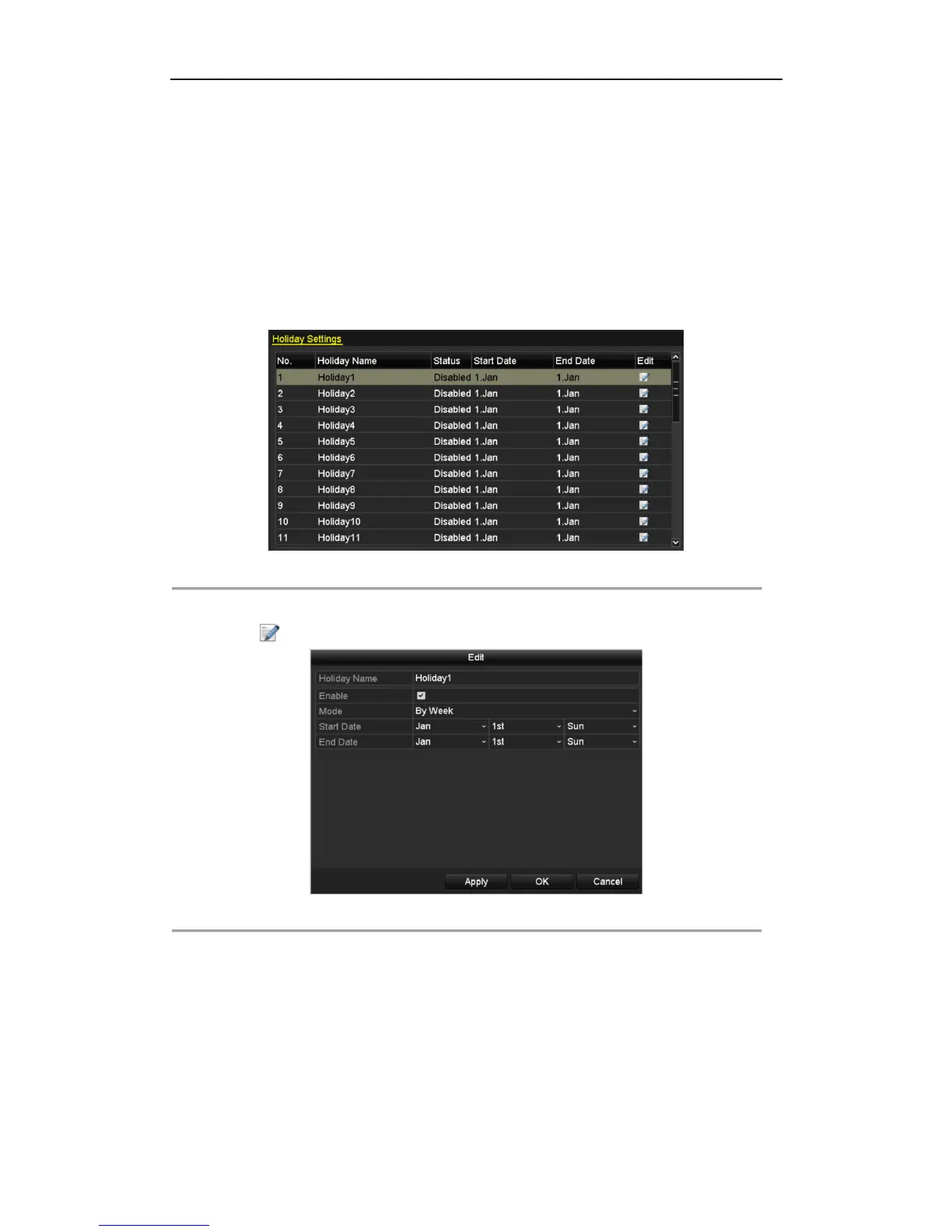

Figure 5. 19 Holiday Settings
2. Enable Edit Holiday schedule.
1) Click to enter the Edit interface.
Figure 5. 20 Edit Holiday Settings
2) Check the checkbox after Enable Holiday.
3) Select Mode from the dropdown list.
There are three different modes for the date format to configure holiday schedule.
4) Set the start and end date.
5) Click Apply to save settings.
6) Click OK to exit the Edit interface.
3. Enter Record Schedule settings interface to edit the holiday recording schedule. See Chapter 6.2 Configuring
Recording Schedule.

HIKVISION DS-7604NI-SE/P Specifications

General

Product color	Black
Channels quantity	4 channels
Playback resolutions supported	5MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio input	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	5
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
HDD capacity	1000 GB
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	445 x 290 x 45 mm
