HIKVISION DS-7604NI-SE/P User Manual

User Manual of Network Video Recorder
151
Click Refresh button if the connected local backup device cannot be displayed. When it fails to detect the backup
device, please check whether it is compatible with the NVR. You can format the backup device if the format is
incorrect.

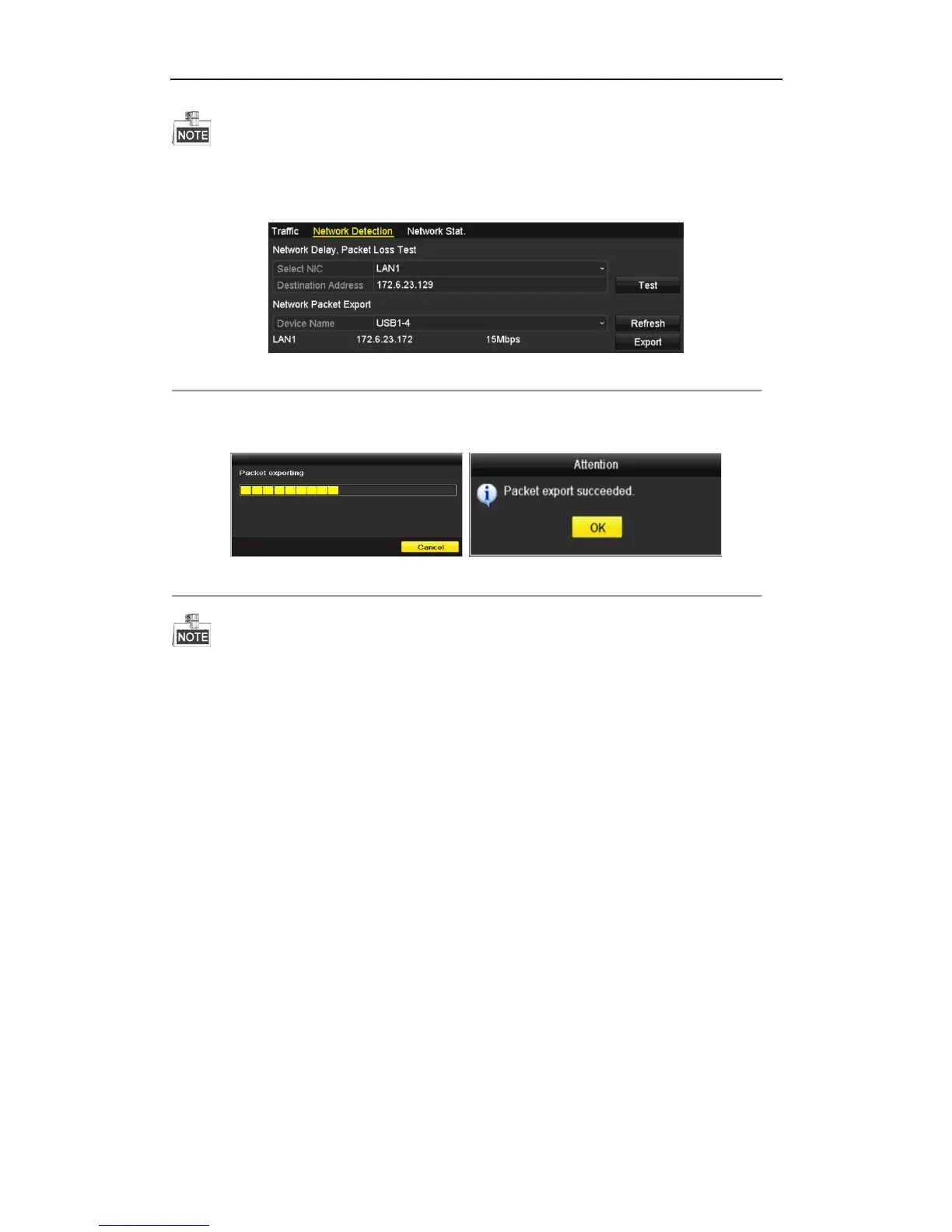

Figure 9. 32 Export Network Packet
4. Click Export button to start exporting.
5. After the exporting is complete, click OK to finish the packet export, as shown in Figure 9. 33.
Figure 9. 33 Packet Export Attention
Up to 1M data can be exported each time.
9.4.3 Checking the Network Status
Purpose:
You can also check the network status and quick set the network parameters in this interface.
Steps:
Click the Status button on the lower- right corner of the page.

HIKVISION DS-7604NI-SE/P Specifications

General

Product color	Black
Channels quantity	4 channels
Playback resolutions supported	5MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio input	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	5
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
HDD capacity	1000 GB
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	445 x 290 x 45 mm
