HIKVISION DS-7604NI-SE/P User Manual

User Manual of Network Video Recorder
76

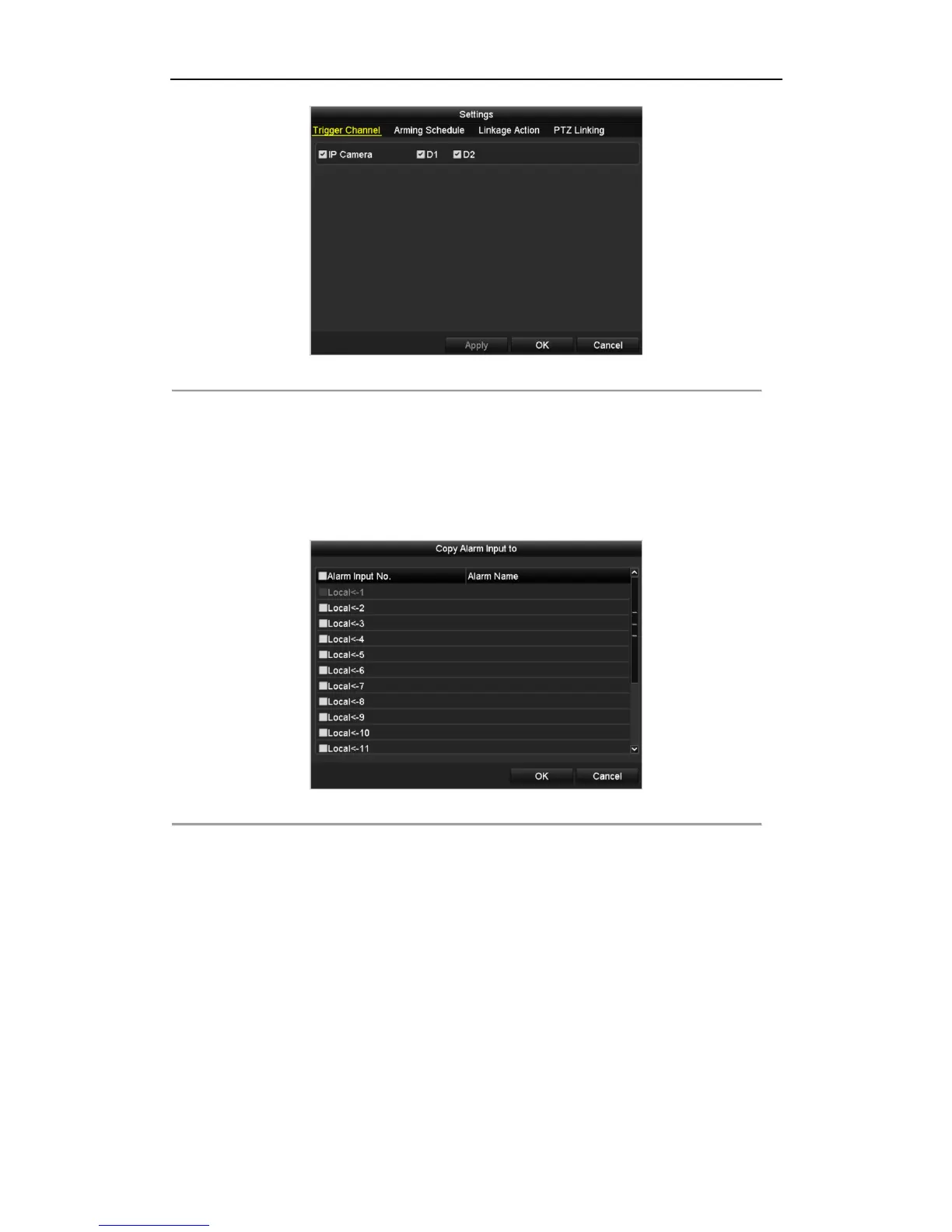

Figure 5. 14 Alarm Settings
5) Choose the alarm triggered recording channel.
6) Check the checkbox to select channel.
7) Click Apply to save settings.
8) Click OK to back to the upper level menu.
Repeat the above steps to configure other alarm input parameters.
If the settings can also be applied to other alarm inputs, click Copy and choose the alarm input number.
Figure 5. 15 Copy Alarm Input
3. Edit the Alarm triggered record in the Record Schedule setting interface. For the detailed information of
schedule configuration, see Chapter Configuring Recording Schedule.

HIKVISION DS-7604NI-SE/P Specifications

General

Product color	Black
Channels quantity	4 channels
Playback resolutions supported	5MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio input	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	5
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
HDD capacity	1000 GB
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	445 x 290 x 45 mm
