Network Video Recorder User Manual
141
15.2 Configure POS Alarm
Purpose:
The POS event can trigger channels to start recording, or trigger full screen monitoring, audio
warning, notifying the surveillance center, sending email and so on.
Step 1 Go to Storage > Recording Schedule.
Step 2 Set the arming schedule of the POS event.
Step 3 Go to System > POS Settings.
Step 4 On the POS adding or editing interface, click the Event Linkage tab.
Step 5 Select the normal linkage actions: full screen monitoring, audio warning or send Email.
Step 6 Select one or more alarm output (s) to trigger.
Step 7 Select one or more channels to record or become full-screen monitoring when POS alarm is
triggered.

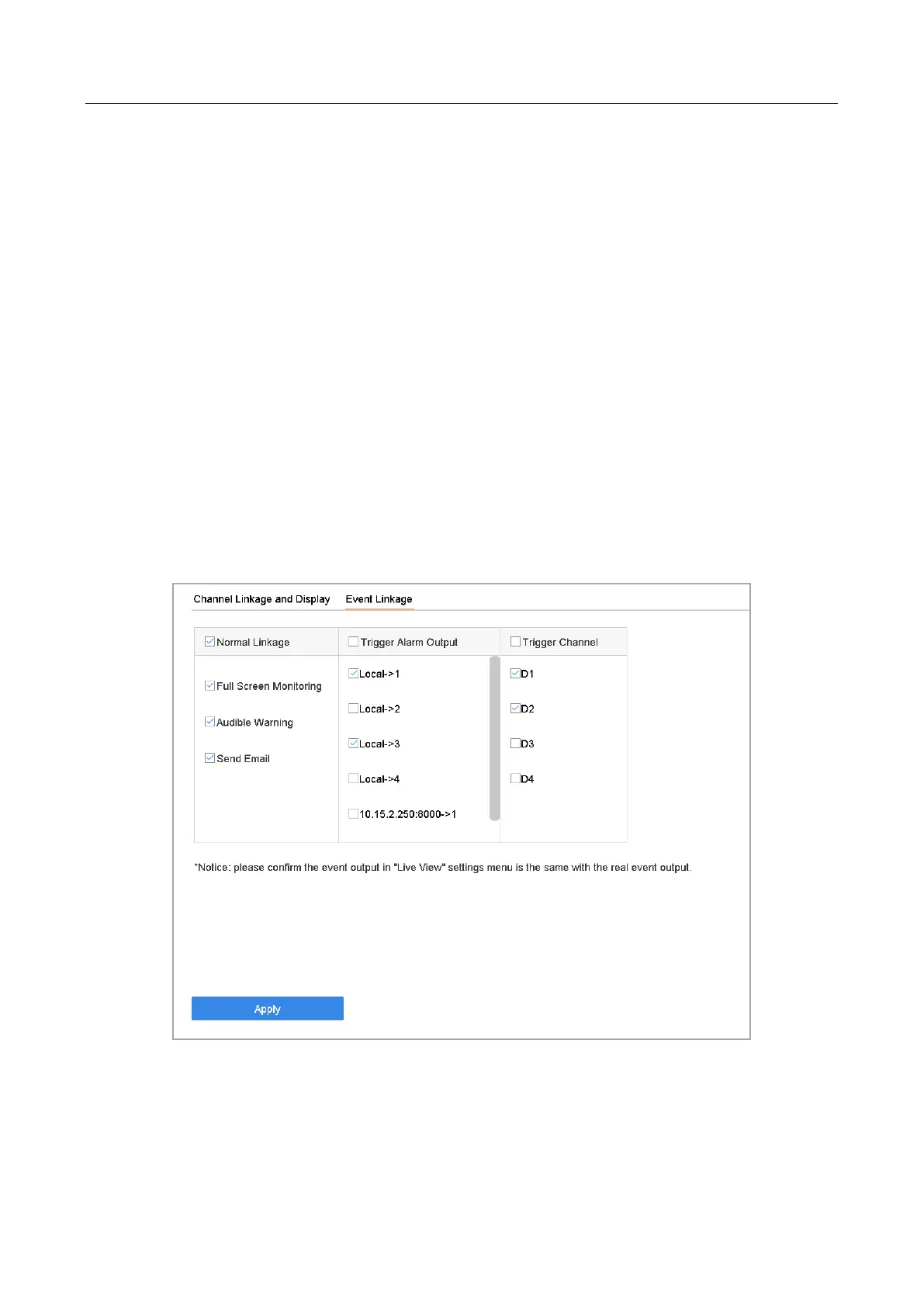

Figure 15-8 Set Trigger Cameras of POS
Step 8 Click Apply to save the settings.
