Network Video Recorder User Manual
66

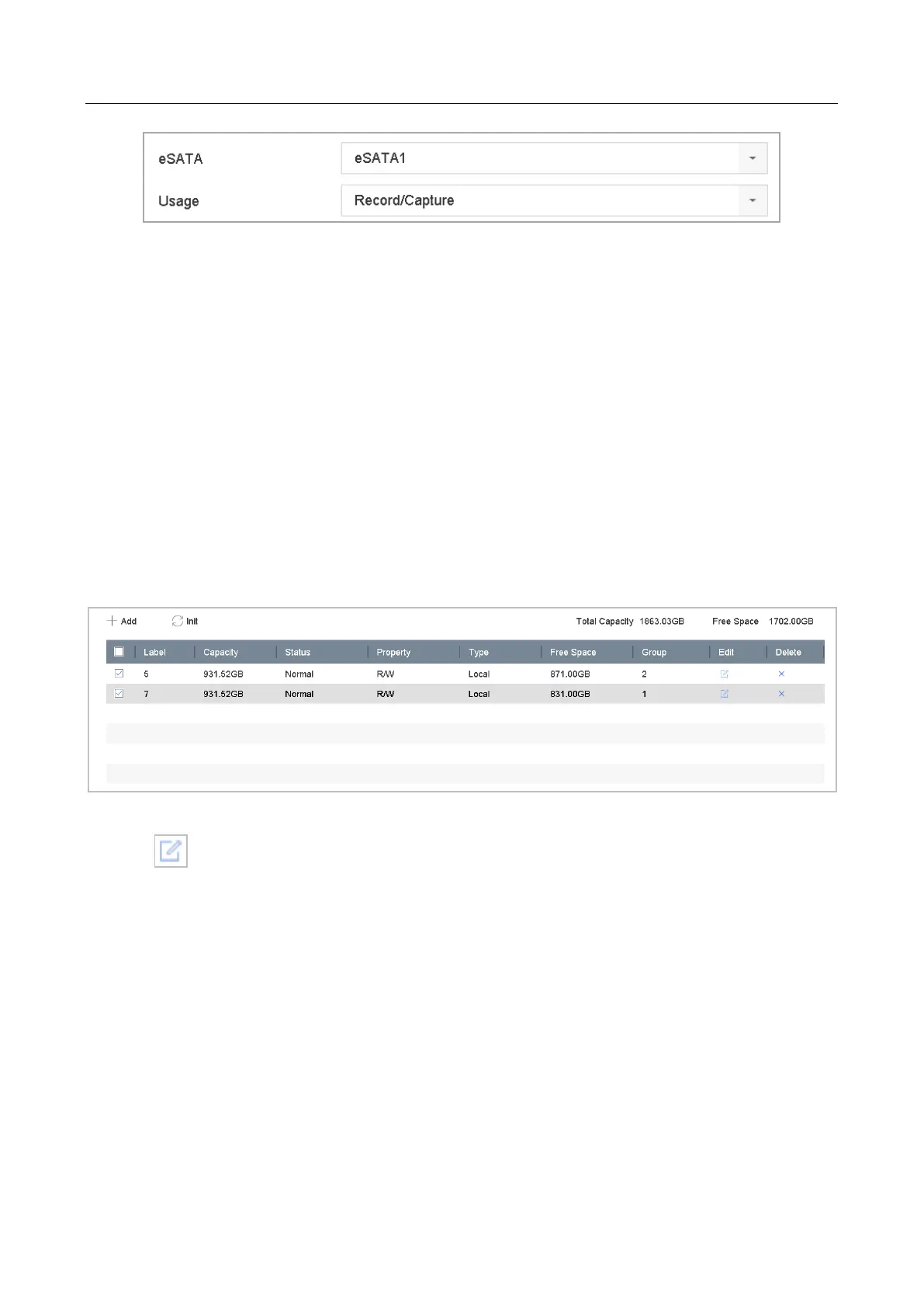

Figure 7-3 Set eSATA Mode
Step 3 When the eSATA type is selected to Record/Capture, enter the storage device interface.
Step 4 Edit the property of the selected eSATA, or initialize it is required.
7.2 Storage Mode
7.2.1 Configure HDD Group
Purpose:
Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a
particular HDD group through HDD settings.
Step 1 Go to Storage> Storage Device.
Step 2 Check the checkbox to select the HDD to set the group.
Figure 7-4 Storage Device
Step 3 Click to enter the Local HDD Settings interface.
To Next Page
