HIKVISION DS-7616NXI-I2/16P/4S User Manual

Network Video Recorder User Manual
49
5.2 Configure Live View Settings
Live View settings can be customized according to different needs. You can configure the output
interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for
each channel, etc.
Step 1 Go to System > Live View > General.

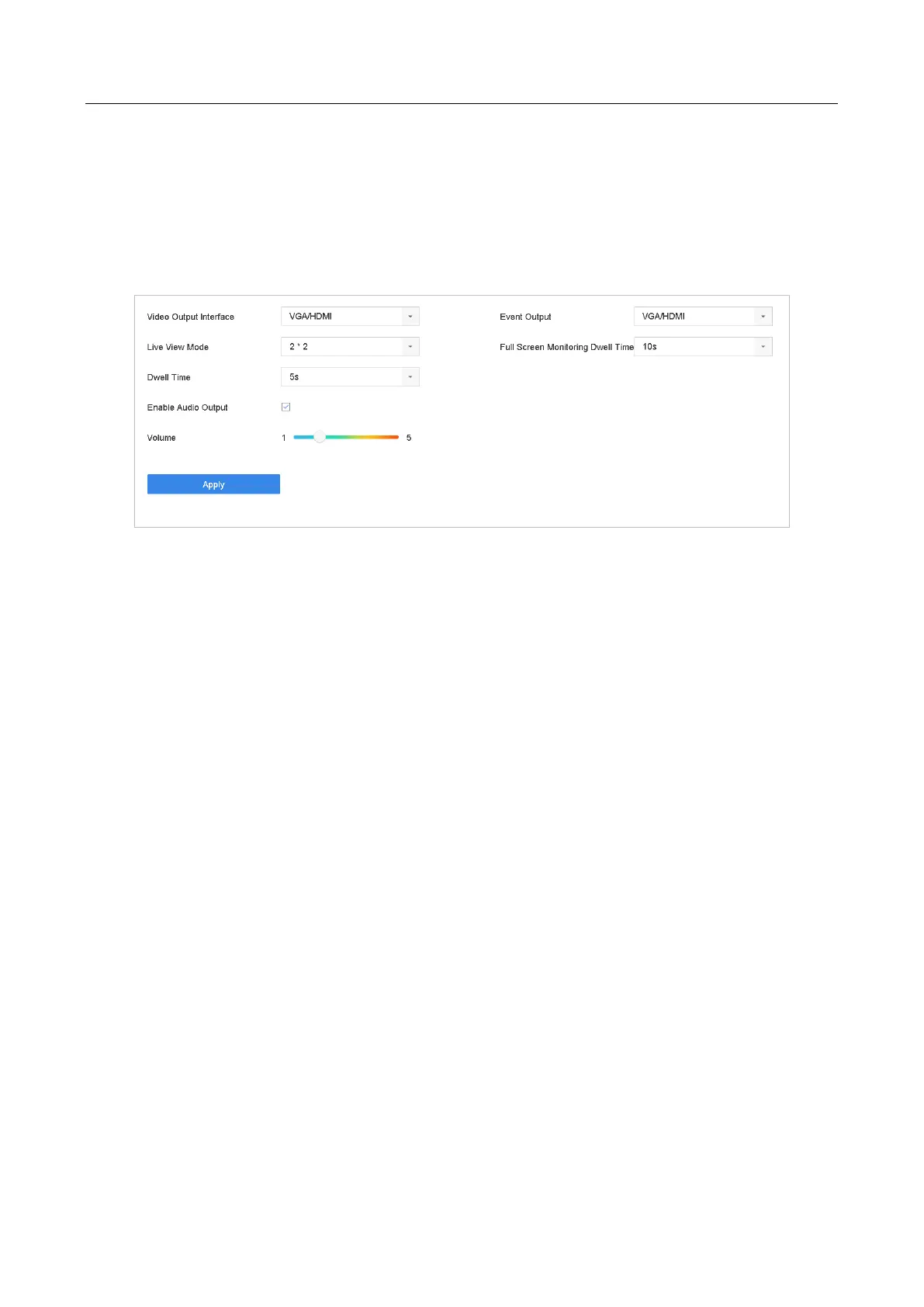

Figure 5-3 Live View-General
Step 2 Configure the live view parameters.
 Video Output Interface: Select the video output to configure.
 Live View Mode: Select the display mode for live view, e.g., 2*2, 1*5, etc.
 Dwell Time: The time in seconds to dwell between switching of cameras when enabling
auto-switch in Live View.
 Enable Audio Output: Enable/disable audio output for the selected video output.
 Volume: Adjust the volume of live view, playback and two-way audio for the selected output
interface.
 Event Output: Select the output to show event video.
 Full Screen Monitoring Dwell Time: Set the time in seconds to show alarm event screen.
Step 3 Click OK to save the settings.
5.3 Configure Live View Layout
Step 1 Go to System> Live View>View Settings.

HIKVISION DS-7616NXI-I2/16P/4S Specifications

General

Model	DS-7616NXI-I2/16P/4S
Category	Network Hardware
Two-Way Audio	Yes
Decoding Format	H.265+/H.265/H.264+/H.264
PoE	Yes
Input Bandwidth	160 Mbps
Output Bandwidth	160 Mbps
Consumption (without HDD)	≤ 15W
Working Humidity	10% to 90%
Operating Humidity	10% to 90%
Video Input	16 Channel
IP Video Input	16 channels
Video Output	HDMI, VGA
Max Resolution	12 MP
Audio Output	1-ch, RCA
Decoding Capability	16 × 1080p @ 30 fps
Network Interface	1 × RJ45 10/100/1000 Mbps
PoE Ports	16
USB Interface	2 × USB 2.0
Alarm In/Out	4/4
HDD Bays	4
SATA	4 SATA interfaces
Capacity	Up to 10TB per HDD
Power Supply	100 to 240 VAC, 50 to 60 Hz
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
