HIKVISION DS-7732NI-I4/16P User Manual

Network Video Recorder User Manual
250

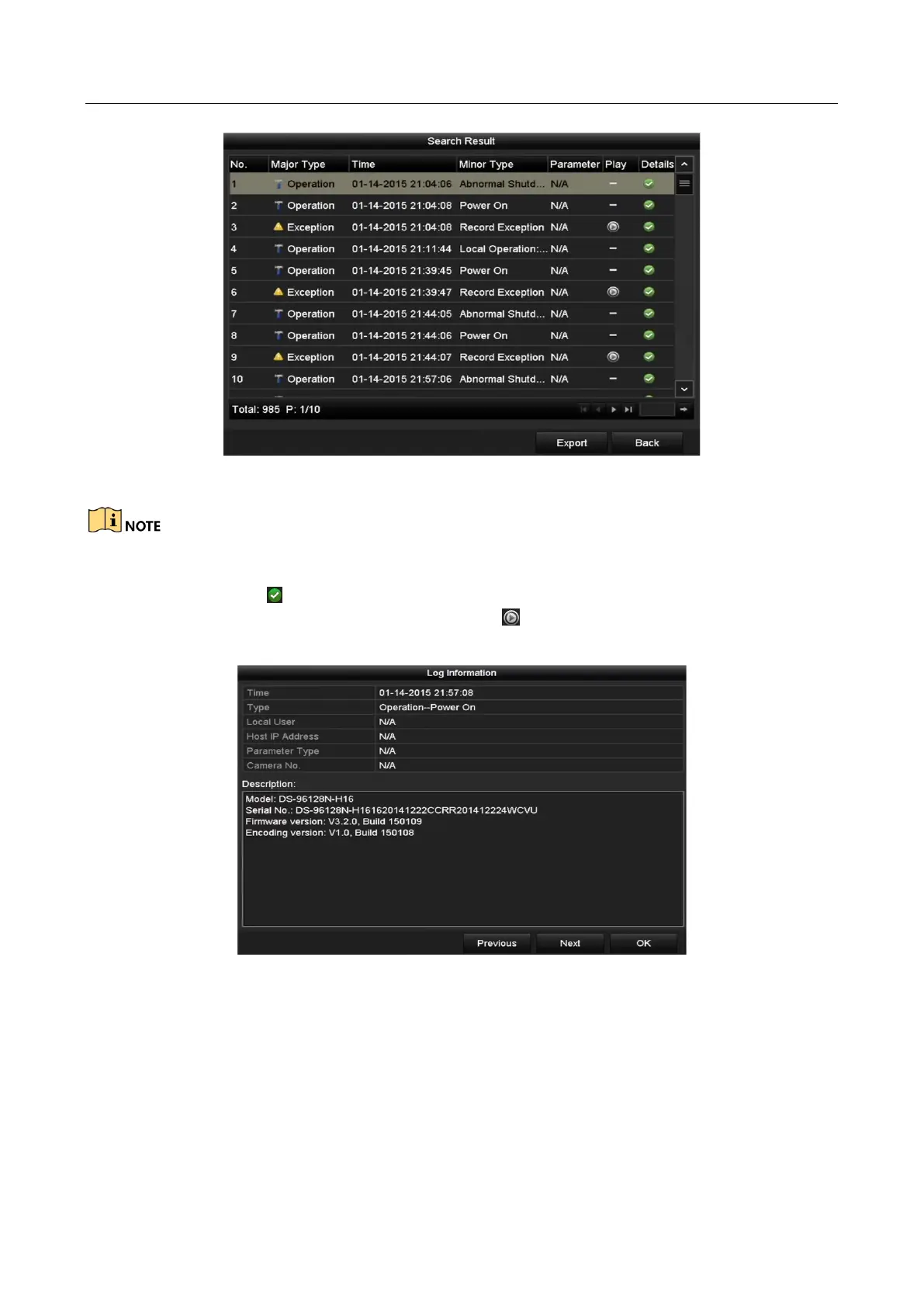

Figure 16-3 Log Search Results
Up to 2000 log files can be displayed each time.
Step 5 You can click the button of each log or double click it to view its detailed information, as
shown in Figure 16-4. And you can also click the button to view the related video files if
available.
Figure 16-4 Log Details
Step 6 If you want to export the log files, click the Export button to enter the Export menu, as
shown in Figure 16-4 Log Details.
You can also click Export All on the Log Search interface (Figure 15.2) to enter the Export
interface (Figure 15.5), and all the system logs will be exported to the backup device.

HIKVISION DS-7732NI-I4/16P Specifications

General

Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supported	H.264, H.265, MPEG4
Audio RCA inputs	1
RS-232 interface	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Power over Ethernet (PoE) ports quantity	8
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
AC input voltage	100 - 240 V
Power consumption (max)	300 W
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1.5U
Supported graphics resolutions	1024 × 768, 1280 × 1024, 1920 × 1080

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	5000 g
