HIKVISION DS-7732NI-I4/16P User Manual

Network Video Recorder User Manual
265

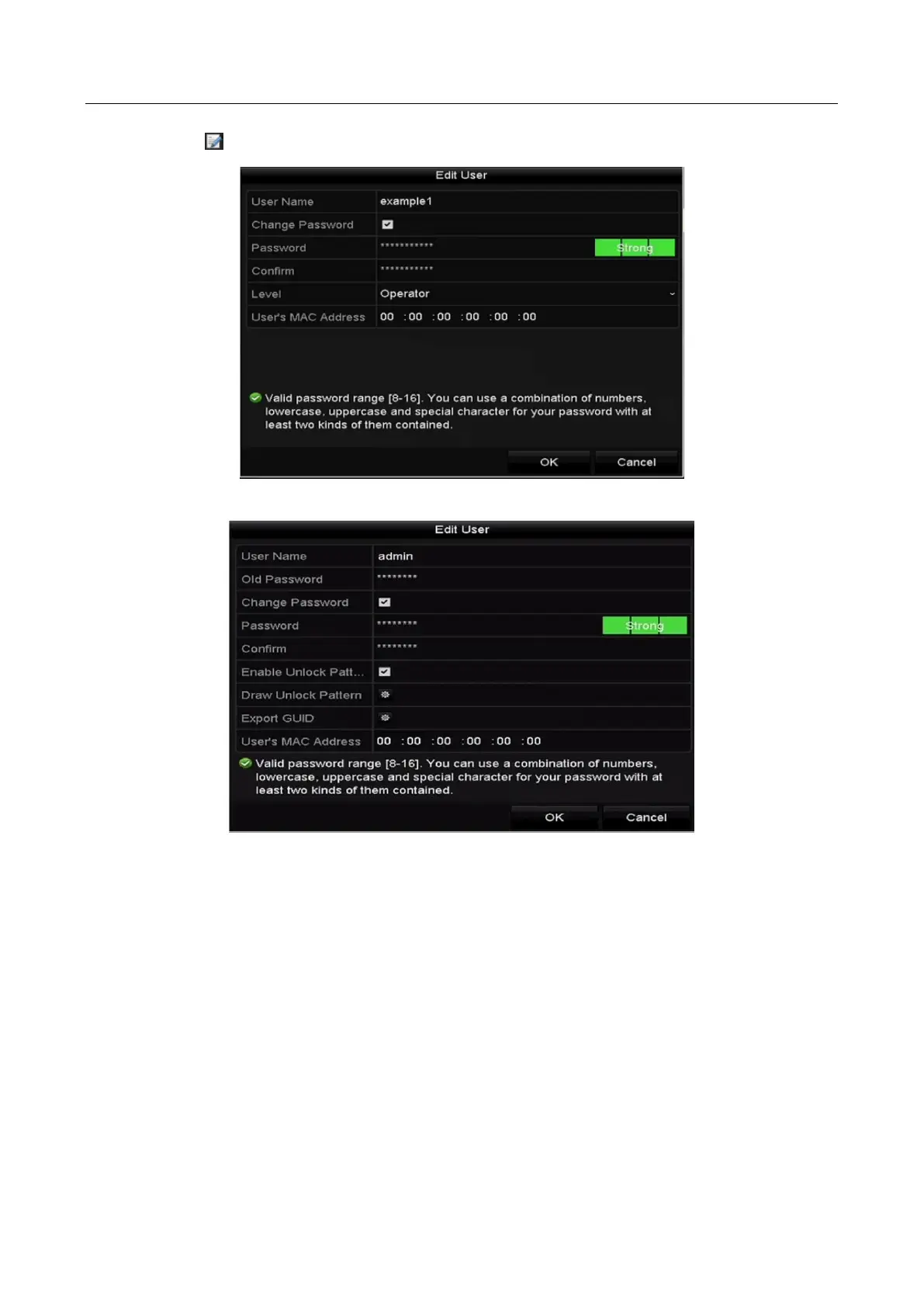

Step 3 Click the icon to enter the Edit User interface, as shown in Figure 17-12.
Figure 17-11 Edit User (Operator/Guest)
Figure 17-12 Edit User (admin)
Step 4 Edit the password for the user
• Operator and Guest
You can edit the user information, including user name, password, permission level and
MAC address. Check the checkbox of Change Password if you want to change the password,
and input the new password in the text field of Password and Confirm. A strong password
is recommended.
• Admin
You are only allowed to edit the password and MAC address. Check the checkbox of
Change Password if you want to change the password, and the input the correct old
password, and the new password in the text field of Password and Confirm.

HIKVISION DS-7732NI-I4/16P Specifications

General

Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supported	H.264, H.265, MPEG4
Audio RCA inputs	1
RS-232 interface	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Power over Ethernet (PoE) ports quantity	8
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
AC input voltage	100 - 240 V
Power consumption (max)	300 W
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1.5U
Supported graphics resolutions	1024 × 768, 1280 × 1024, 1920 × 1080

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	5000 g
