HIKVISION DS-7732NI-I4 Quick Start Guide

Network Video Recorder Quick Start Guide
20

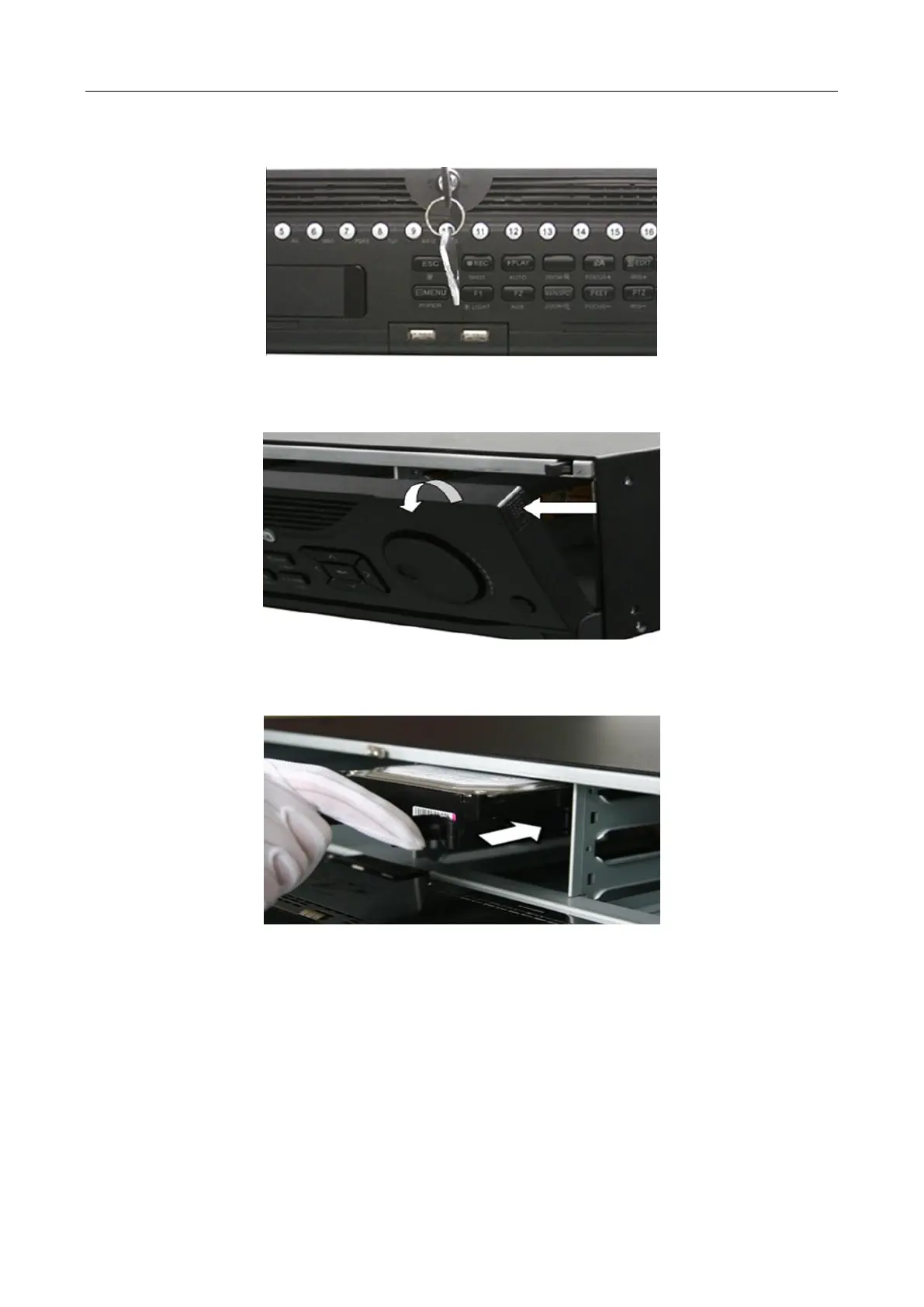

Step 2 Insert the key and turn in clockwise direction to open the panel lock.
Figure 2-2 Insert Panel Key
Step 3 Press the buttons on the panel of two sides and open the front panel.
Figure 2-3 Open Panel Lock
Step 4 Insert the hard disk along the slot until it is placed into position.
Figure 2-4 Insert Hard Disk
Step 5 Repeat the above steps to install other hard disks onto the NVR. After having finished the
installation of all hard disks, close the front panel and lock it with the key again.

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
