HIKVISION DS-7732NI-I4 Quick Start Guide

Network Video Recorder Quick Start Guide
29
3.5 Enter Wizard to Configure Quick Basic Settings
The Setup Wizard can walk you through some important settings of the device. By default, the
Setup Wizard starts once the device has loaded.
Check the checkbox to enable Setup Wizard when device starts. Click Next to continue the setup
wizard. Follow the guide of the Setup Wizard to configure the system resolution, system date/time,
network settings, HDD management, record settings, etc.

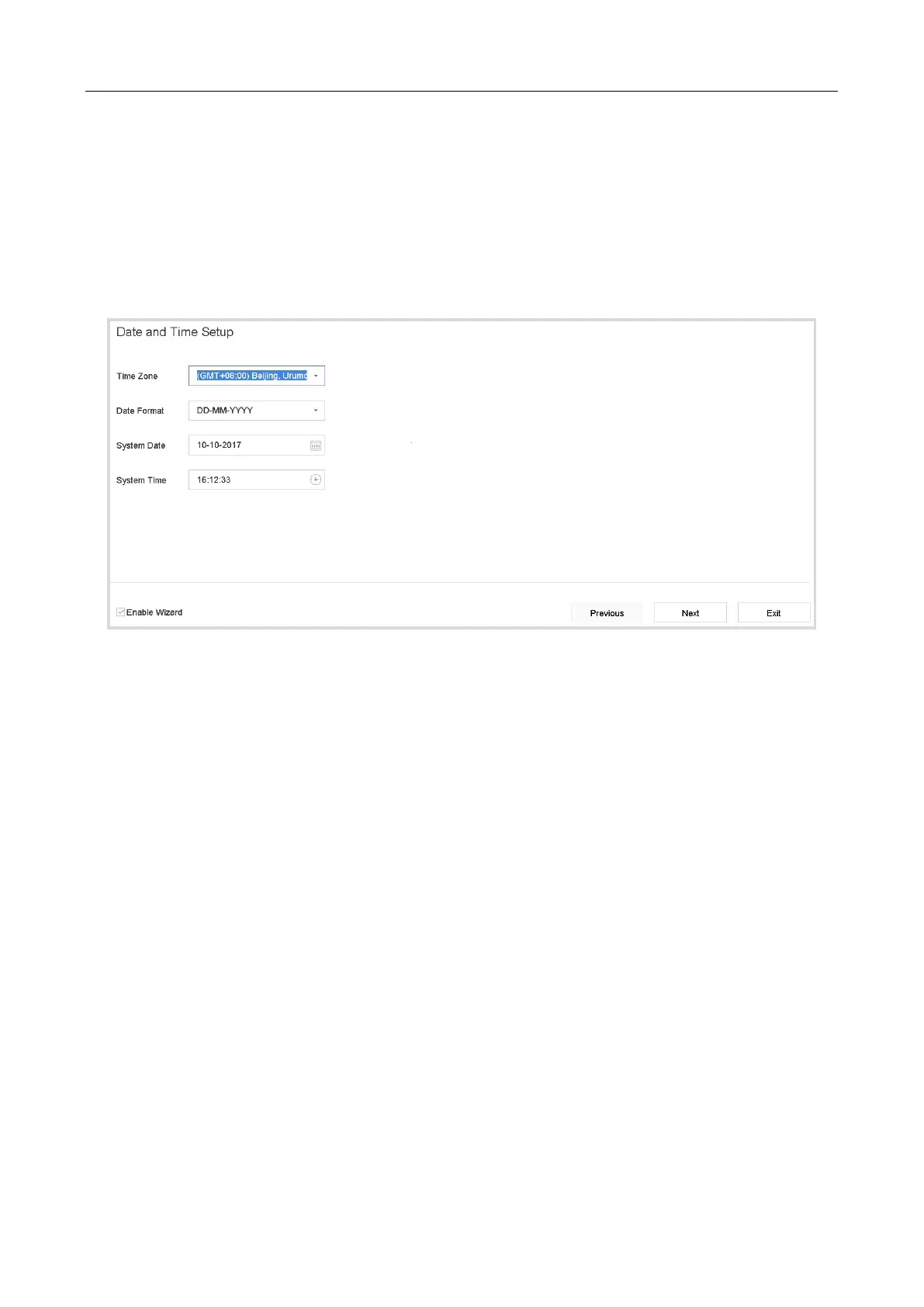

Figure 3-4 Wizard
3.6 Network Settings
Purpose:
Network settings must be properly configured before you operate device over network.
Step 1 Go to System > Network > TCP/IP.

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
