HIKVISION DS-7732NI-I4 Quick Start Guide

Network Video Recorder Quick Start Guide
21

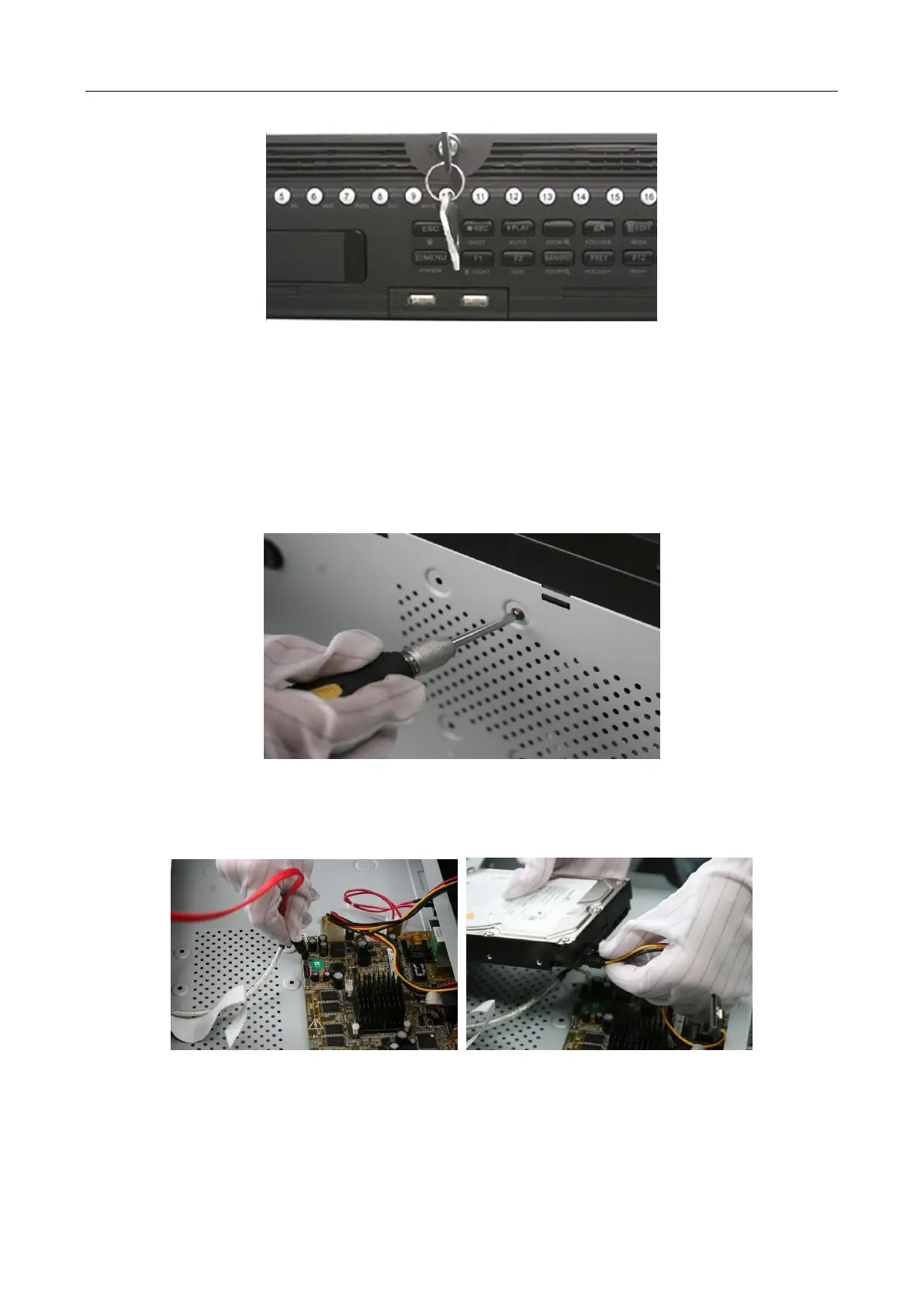

Figure 2-5 Lock Panel
2.2.2 Other Models
Purpose:
The following section introduces the HDD installation for the DS-7600NI and DS-7700NI series NVR.
Take the example of DS-7600NI to describe installation steps.
Step 1 Remove the cover from the NVR by unfastening the screws on the rear and side panel.
Figure 2-6 Remove Cover
Step 2 Connect one end of the data cable to the motherboard of NVR and the other end to the
HDD.
Figure 2-7 Connect Data Cable
Step 3 Connect the power cable to the HDD.

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
