HIKVISION DS-7732NI-I4 Quick Start Guide

Network Video Recorder Quick Start Guide
31

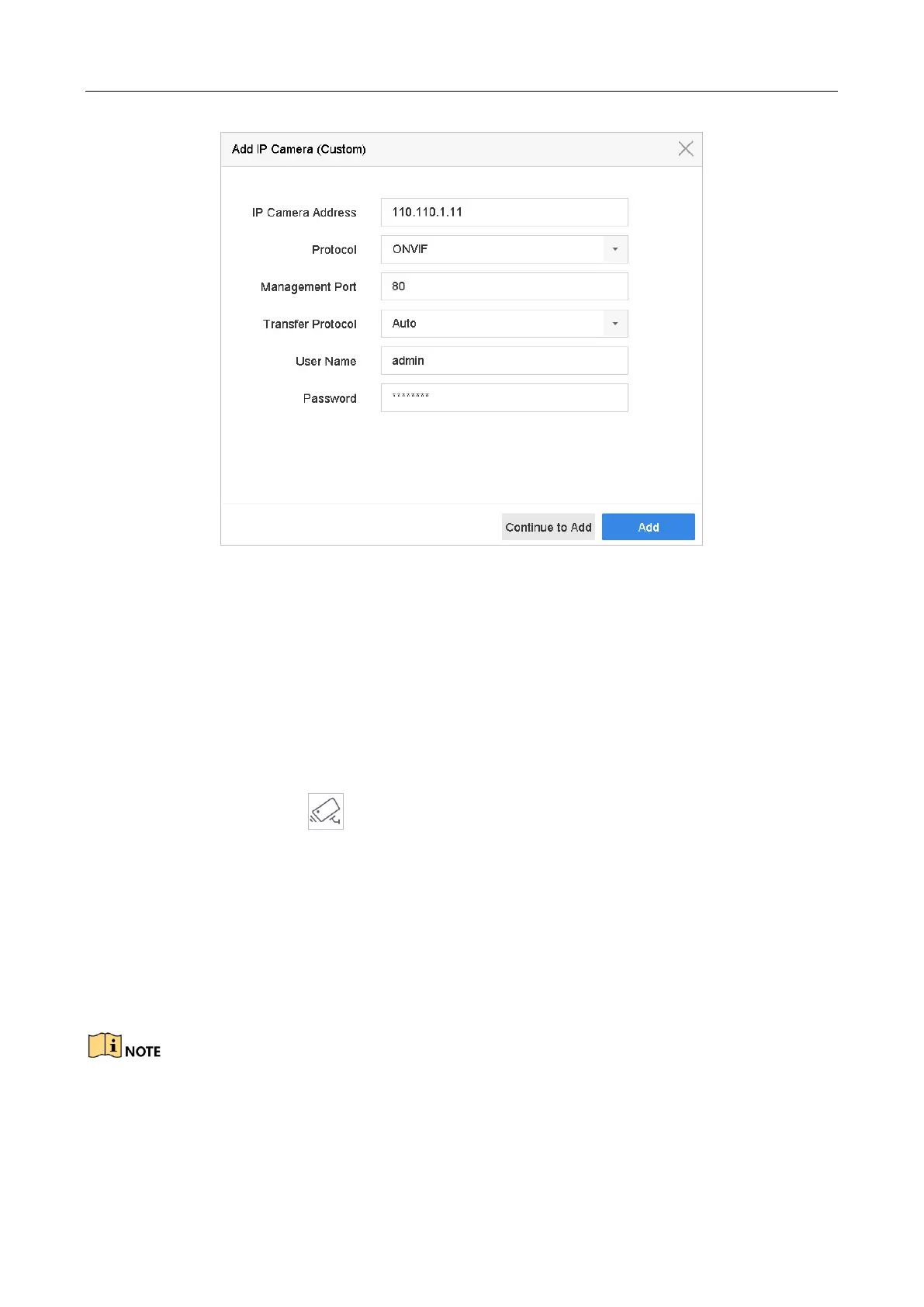

Figure 3-6 Add IP Camera
Step 3 Enter IP address, protocol, management port, and other information of the IP camera to add.
Step 4 Enter the login user name and password of the IP camera.
Step 5 Click Add to finish the adding of the IP camera.
Step 6 (Optional) Click Continue to Add to continue to add other IP cameras.
3.8 Start Live View
Enter the live view mode ( ).
 You can select a window and double click a camera from the list to play the video from the
camera in the selected window.
 Use the toolbar at the playing window bottom to realize the capture, instant playback, audio
on/off, digital zoom, live view strategy, show information, start/stop recording, etc.
3.9 One-Touch RAID Configuration
The RAID is supported by DS-9600NI-I8 and DS-9600NI-I16 series NVR only.
Purpose:

HIKVISION DS-7732NI-I4 Specifications

General

Playback modes	Pause, Play
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Video formats supported	H.264, H.265, MPEG4
Resolution at capture speed	1920x1080@60fps, 3840x2160@30fps
On/off switch	Yes
Product color	Black, Silver
Rack capacity	1.5U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
RS-485 ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	24 TB
Number of HDDs installed	-
Total installed storage capacity	12000 GB

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
